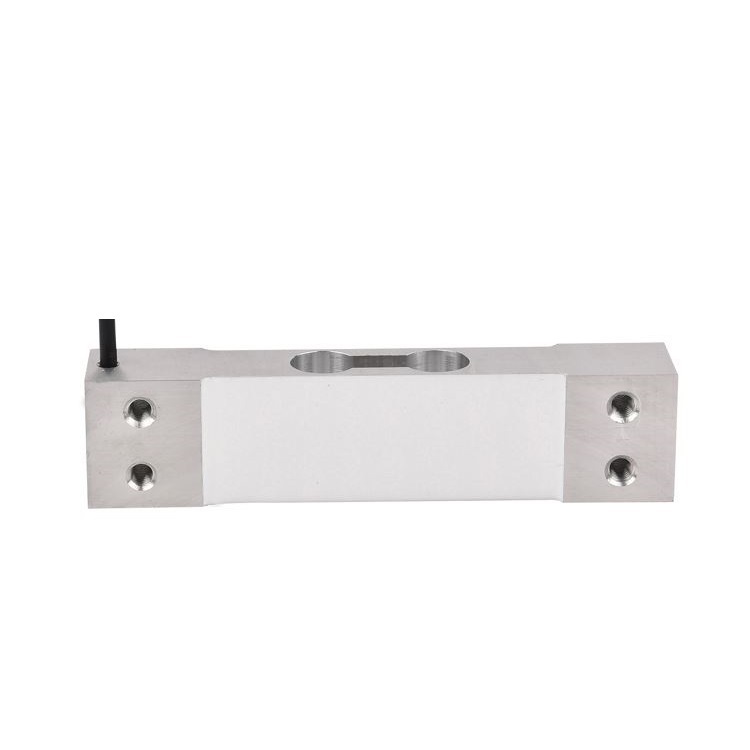

LC3516 Aluminum Alloy Industrial Weighing Load Cells Aluminum Load Cell

Availability:
Quantity:
  • LC3516

  • SAINTBOND

Load Cell

LC3516-3

Recommended Platform size: 250×350(mm)

Dimensions:

LC3516

Size: 130x22x30(mm) Thread hole: 4-M6

It uses 4-core shielded cable (φ4×420mm). The length of the cable can be adjusted according to clients' request, but we suggest to use this standard length to ensure the output precision

Technical Parameter:

Rated Load:

3/5/6/10/15/20/30/40/50/60/100/120kg

Comprehensive Error:

0.017%F.S & 0.02%F.S

Insulation Resistance:

≥5000MΩ(100VDC)

Rated Output:

1±0.1 & 2±0.1mV/V

Excitation Voltage:

9VDC~12VDC

Non-Linearity:

0.017%F.S & 0.02%F.S

Compensated Temp. Range:

-10℃~+40℃

Hysteresis:

0.017%F.S & 0.02%F.S

Use Temp. Range:

-20℃~+60℃

Repeatability:

0.01%F.S & 0.02%F.S

Temp. Effect On Zero:

0.017%F.S/10℃

& 0.03%F.S/10℃

Creep:

0.017%F.S/30min

& 0.02%F.S/10min

Temp. Effect On Span:

0.014%F.S/10℃

& 0.02%F.S/10℃

Zero Balance:

±1%F.S

Safe Overload:

120%

Input Resistance:

405±10Ω

Ultimate Overload:

150%

Output Resistance:

350±3Ω

Defense Class:

IP65

圣邦网站1详情页_05

Product name LC3516 Aluminum Alloy Industrial Weighing Load Cells Aluminum Load Cell
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
