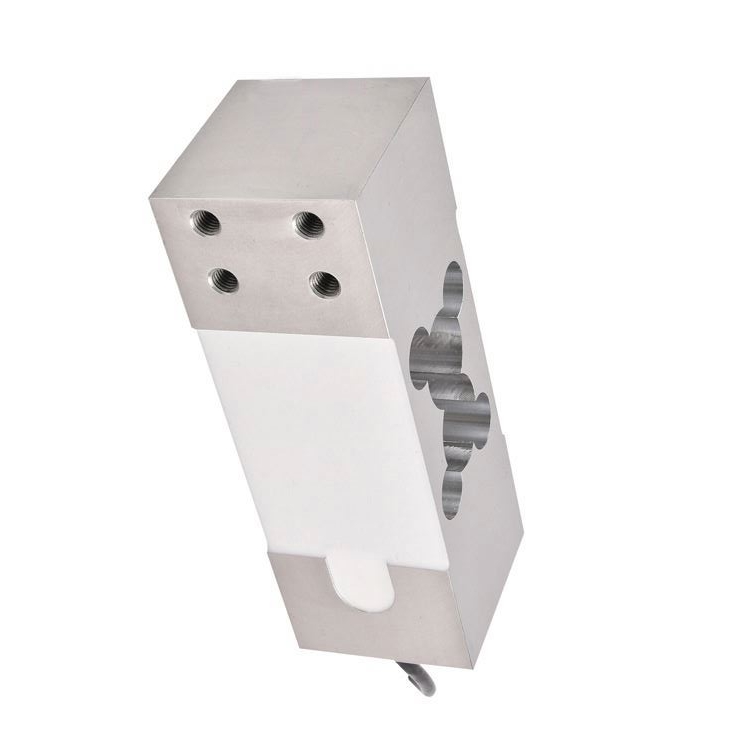

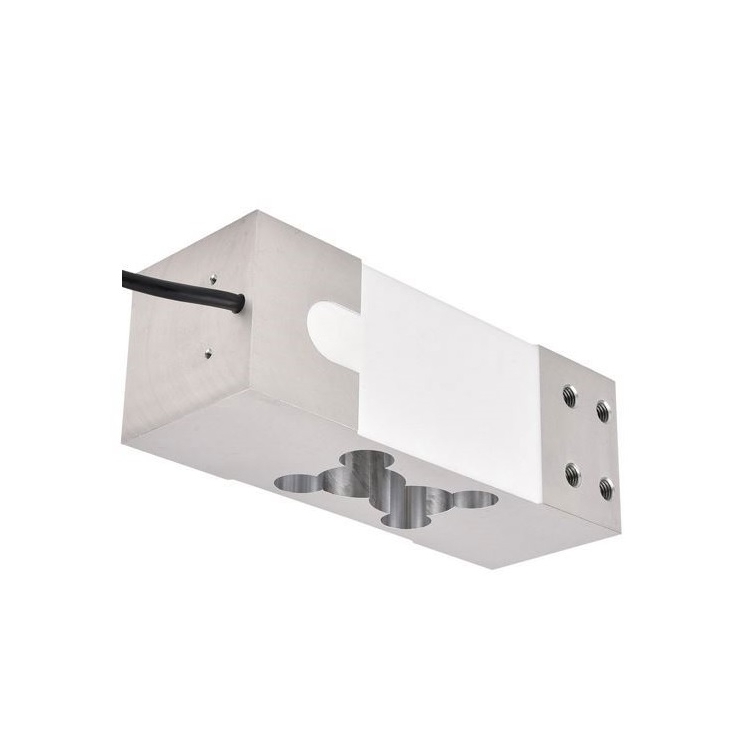

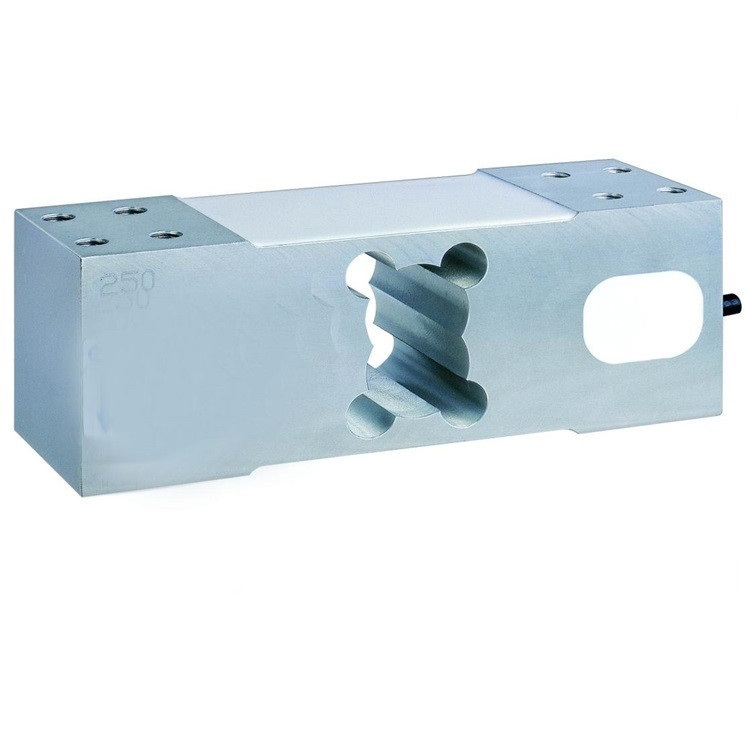

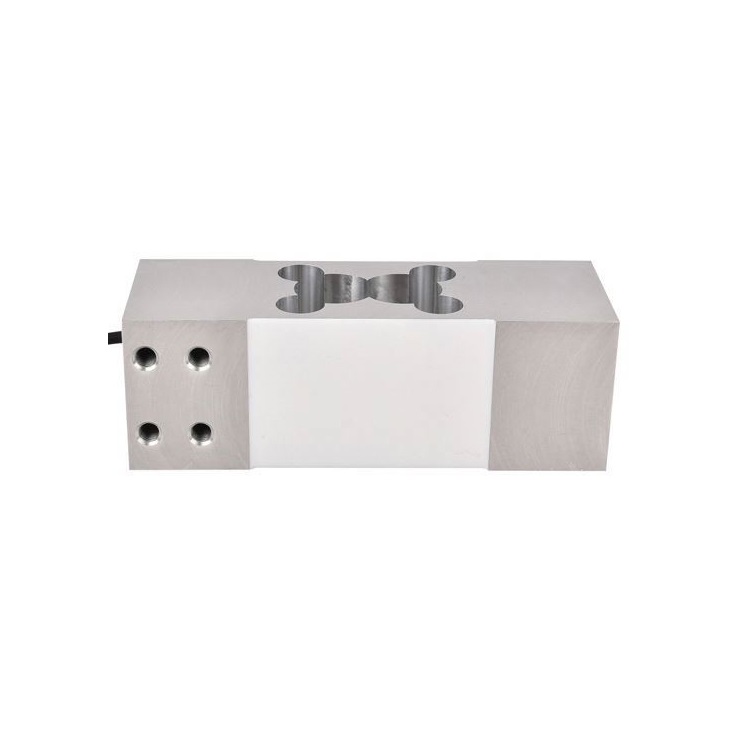

LC3514 Aluminum single point platform load cell Aluminum Load Cell

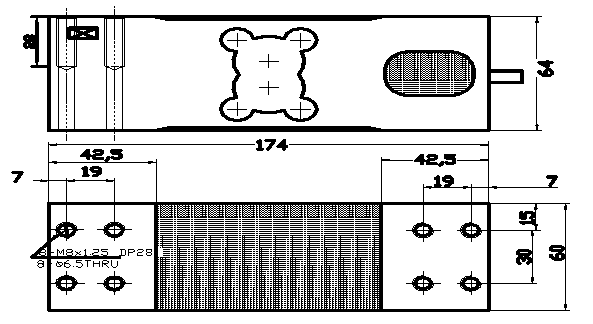

Outline Size:

64×60×174

Output Resistance:

350±5Ω

Rated Output:

2.0mv/V±5%

Insulation Resistance:

≥5000MΩ

Zero Balance:

±2%R.O.

Temperature Compensated:

-10to+40℃

Non-Linearity:

±0.015%R.O.

Operating Temp. Range

-20to+60℃

Hysteresis,Non-Repeatability:

±0.02%R.O.

Recommend Excitation Vol.:

5~12VDC

Creep(5  Minute):

±0.02%R.O.

Maximum Excitation Vol.:

18VDC

Temp. Compensated For Output:

±0.03%R.O./10℃

Safe Overload:

150%.R.C

Temp. Compensated For Zero:

±0.03%R.O./10℃

Cable:

2m(φ5mm)
