LC3512
SAINTBOND

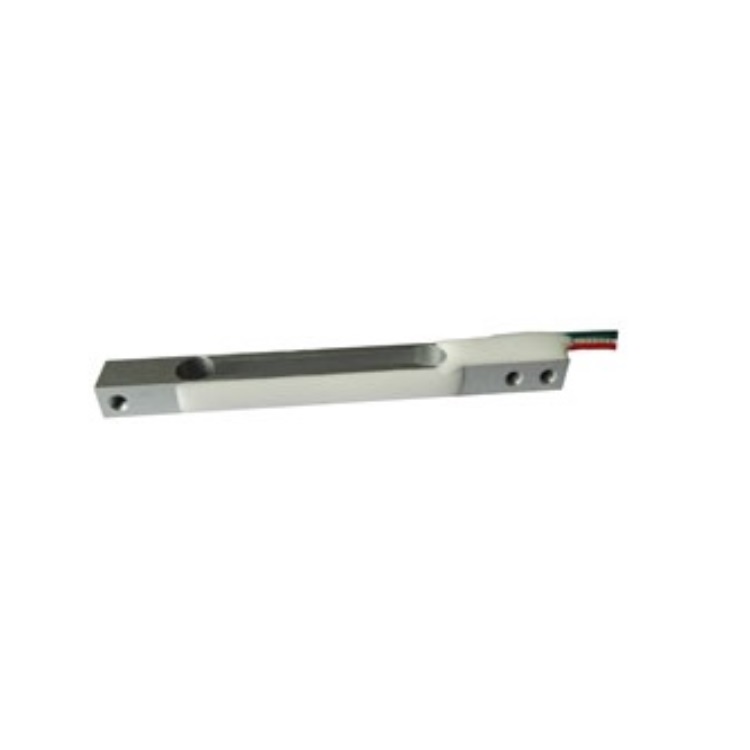

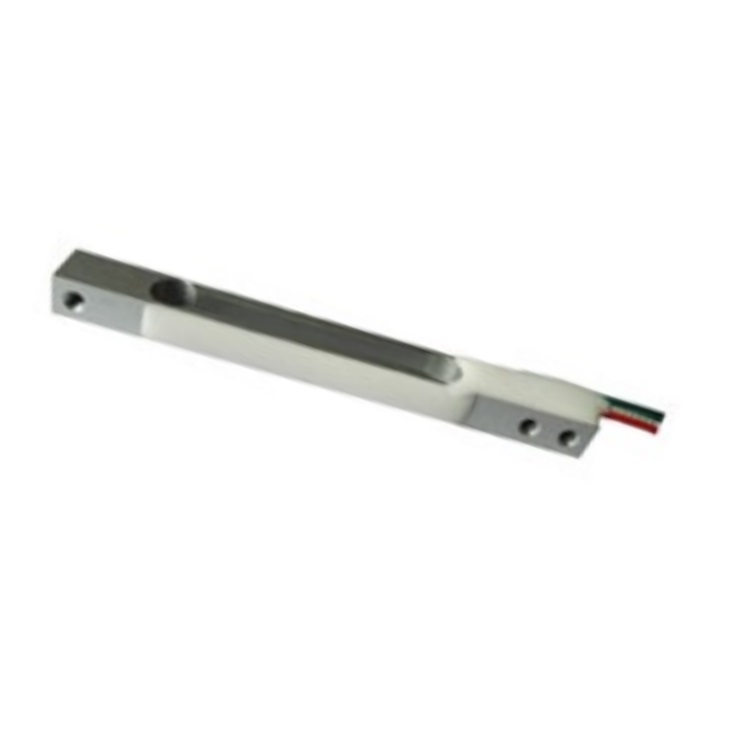

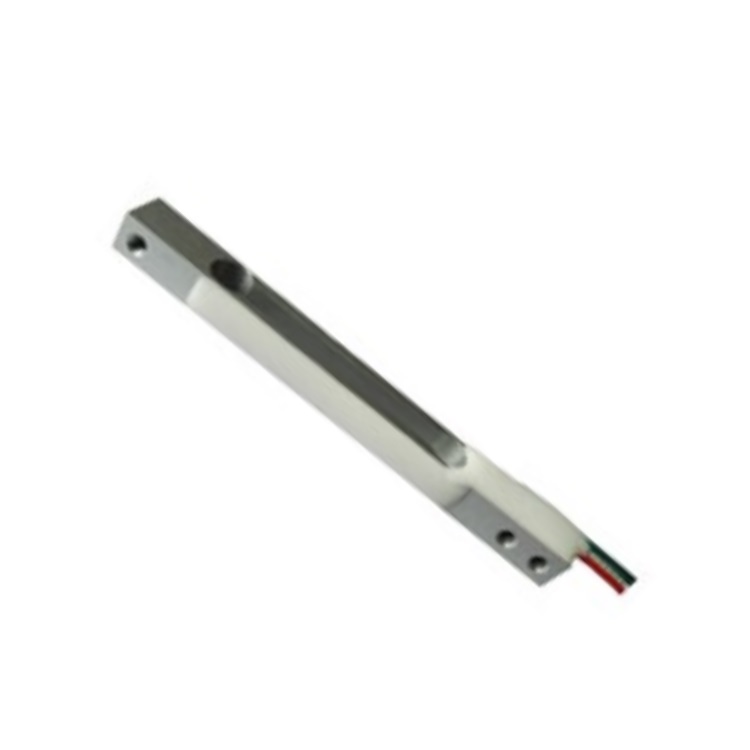

Product Description:
The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation.

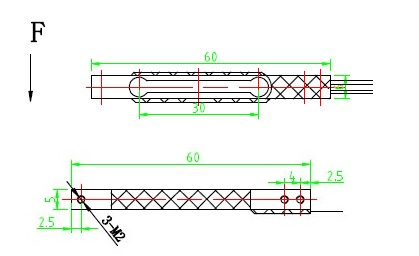

Dimension:
Specification:
Precision :0.03-0.1Kg | Temp. effect on span(%F.S/10℃): ±0.05 |
Comprehensive error(%F.S) : ±0.03 | Temp. effect on zero(%F.S/10℃) : ±0.05 |
Rated output(mv/v) : 0.5±0.15 | Compensated temp. range(℃ ) : -10～+40 |
Creep(%F.S/30min) : ±0.03 | Use temp. range(℃ ) : -20～+60 |
Zero balance(%F.S) : ±10 | Excitation voltage(V) : 10(DC) |
Input resistance(Ω) : 1000±10 | Safe overload (%F.S) : 120 |
Output resistance(Ω) : 1000±10 | Ultimate overload (%F.S) : 150 |
Insulation resistance(MΩ) : ≥5000(100VDC) | Defend grade : IP65 |
| Product name | LC3512 Low Profile Compression Beam Load Cell Parallel Beam Type Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
