LC3509
SAINTBOND
Dimensions:
Technical Parameter:
Model | LC3509 | Temp.Effect on Output | ≤0.05%F.S/10℃ |
Capacity | 20/30/50/100/200g | Zero Output | ±0.5%F.S |
Comprehensive Error | 0.05 | Input Resistance | 1055±10Ω |
Output Sensitivity | 0.50±0.15mV/V | Output Resistance | 1000±10Ω |
Non-linearity | ±0.05%F.S | Insulation Resistance | ≥2000MΩ (50V) |
Repeatability | ±0.05%F.S | Excitation Voltage | ≤6V |
Hysteresis | ±0.05%F.S | Operation Temp.Range | -10--+40℃ |
Creep | ±0.05(3min)%F.S | Overload Capacity | 150%F.S |
Temp.Effect on Zero | ±2.0%F.S/10℃ | Recommended Use | Handable Scales |

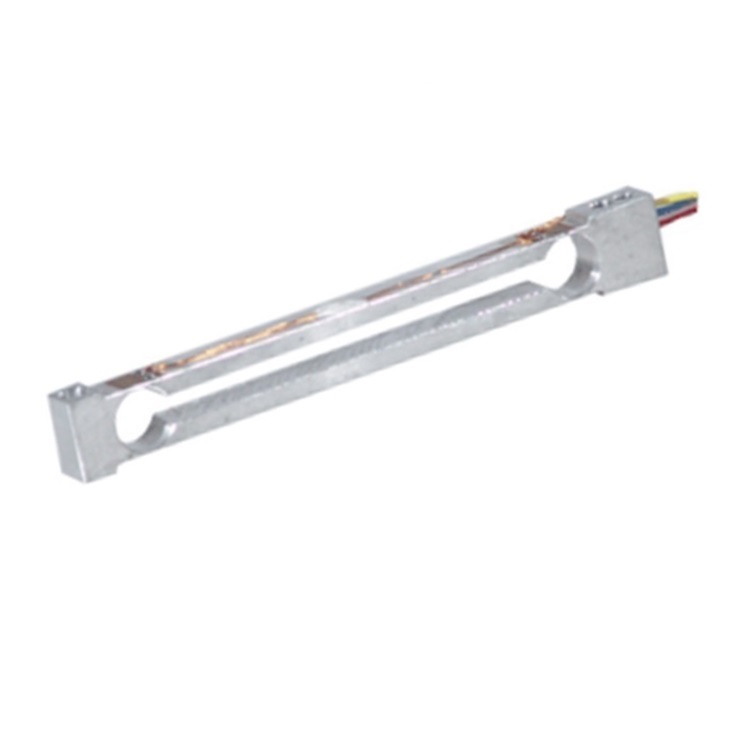

| Product name | LC3509 Aluminium Weighing Scale Load Cell Handable Scales Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
