LC3506
SAINTBOND

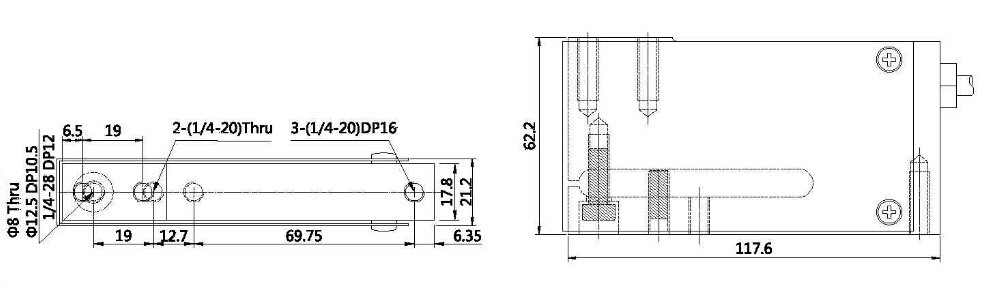

Dimension:
Description:

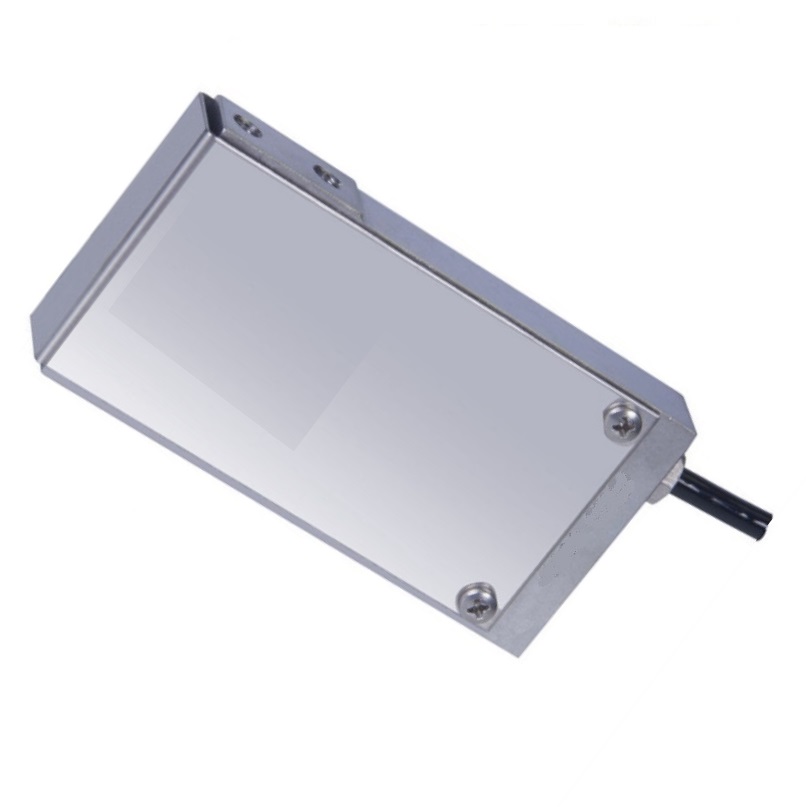

LC3506 Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell. Advantages of LC3506 Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale. Model LC3506 load cells are designed to this “single point”type and manufactured from high quality stainless steel of aviation standard. MiNi053 load cells can be used to measure loads range from 20lb to 100lb with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output), LC3506 load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales,bench scales,platform scales and packing machinerys.
Features:
◎Parellel bending beam
◎Capacity:20kg,...,100lb
◎Accuracy:0.03%R.O.
◎Recommended platform size:200*200MM
◎Stainless steel
◎Environment protection class:IP67
Applications:
◎Price computing scales
◎Counting scales
◎Weighing scales
◎Retail scales
◎Bench scales
◎Platform scales
◎Packing machinerys
Technical Data:
Model | LC3506 | Excitation,Recommended | 5－12VDC |
Rated Capacity | 20/30/50/100lb | Excitation,Maximum | 18VDC |
Accuracy Class | G | Operating Temp.Range | -20－+60℃ |
Rated Output | 2.0±0.25%mV/V | Safe Overload | 150%R.C. |
Zero Balance | ±2%R.O. | Ultimate Overload | 200%R.C. |
Input Resistance | 405±10Ω | Insulation Resistance | ≥5000MΩ(50VDC) |
Output Resistance | 350±3Ω | Cable,Length | ø6mm×3m * |
Linearlty Error | ±0.015%R.O. | Protection Class | IP67 |
Repeatability Error | ±0.01%R.O. | Temp.Effect on Output | ±0.02%R.O./10℃ |
Hysteresis Error | ±0.01%R.O. | Temp.Effect on Zero | ±0.02%R.O./10℃ |
Creep in 30 Min. | ±0.02%R.O. | Compensated Temp.Range | -10－+40℃ |
| Product name | LC3506 Mini Weighing Load Cell Aluminum Weight Sensors |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
