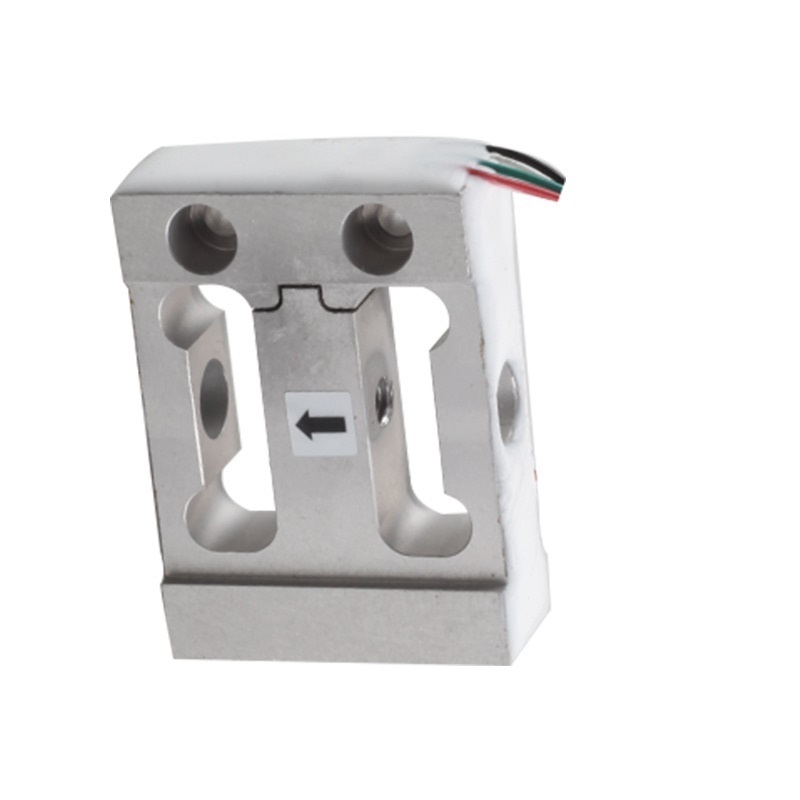

LC3504
SAINTBOND
Dimension:
Description:
LC3504 Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimal LC3504 Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications.
Advantages of LC3504 Single Point Load Cells/Miniature Load Cells: Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale. These load cells are moment insensitive.
Model MiNi055 load cells are designed to this “single point/miniature/compression & tension type and manufactured from high quality aluminum alloy of aviation standard. MiNi055 load cells can be used to measure loads range from 1kg to 50kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output) and 2.0mV/V output signal. LC3504 load cells are mainly used for crane scales, hopper scales, hanging scales and tensile testing.
Features:
◎Parellel bending beam/miniature load cells/compression&tension load cells
◎Capacity:1kg,...,50kg
◎Accuracy:0.03%R.O.
◎Micro structure
◎Biaxial loading
◎Aluminum construction with surface anodized
◎Environment protection class:IP65
Applications:
◎Crane scales
◎Hopper scales
◎Hanging scales
◎Tensile testing
Technical Data:
Model | LC3504 | Excitation,Recommended | 5－12VDC |
Rated Capacity | 1/5/10/50kg | Excitation,Maximum | 18VDC |
Accuracy Class | B | Operating Temp.Range | -20－+60℃ |
Rated Output | 2.0±10%mV/V | Safe Overload | 150%R.C. |
Zero Balance | ±2%R.O. | Ultimate Overload | 200%R.C. |
Input Resistance | 395±10Ω | Insulation Resistance | ≥2000MΩ(50VDC) |
Output Resistance | 350±3Ω | Cable,Length | ø8mm×0.5m * |
Linearlty Error | ±0.03%R.O. | Protection Class | IP65 |
Repeatability Error | ±0.02%R.O. | Temp.Effect on Output | ±0.03%R.O./10℃ |
Hysteresis Error | ±0.02%R.O. | Temp.Effect on Zero | ±0.05%R.O./10℃ |
Creep in 30 Min. | ±0.03%R.O. | Compensated Temp.Range | -10－+40℃ |
| Product name | LC3504 Aluminum Load Cell Parallel Beam Sensor Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
