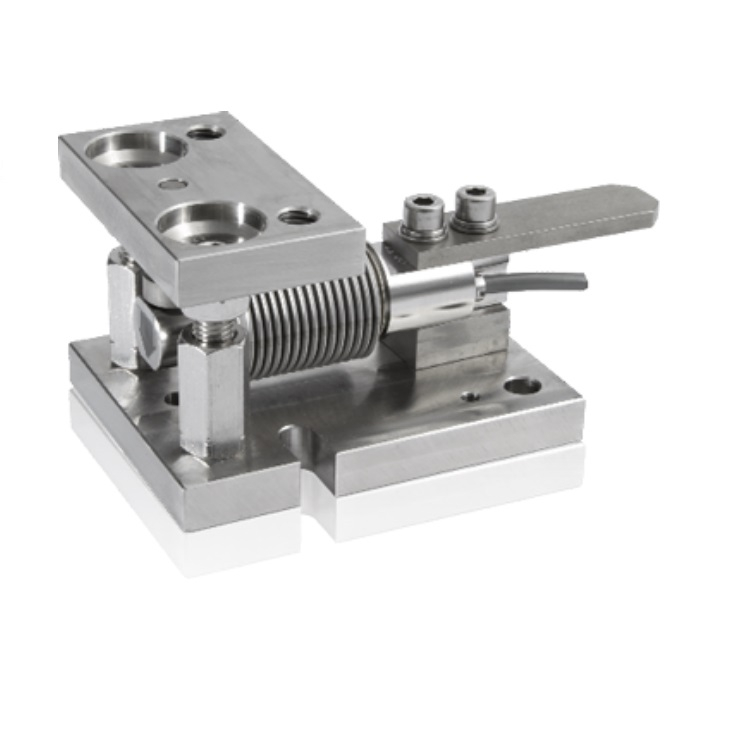

LC339M4
SAINTBOND
Products Specification:
◎Self aligning, reduces the effect of side loads;
◎Ensures optimum performance from the load cell;
◎Suitable for use on capacity ranges up to 500kg;
◎Ideal for tank and silo weighing;
◎Built-in jacking facility & lift off prevention;
◎Easy fitting & removal of the load cell;
◎Manufactured from stainless steel;
◎Integral cable protection plate;

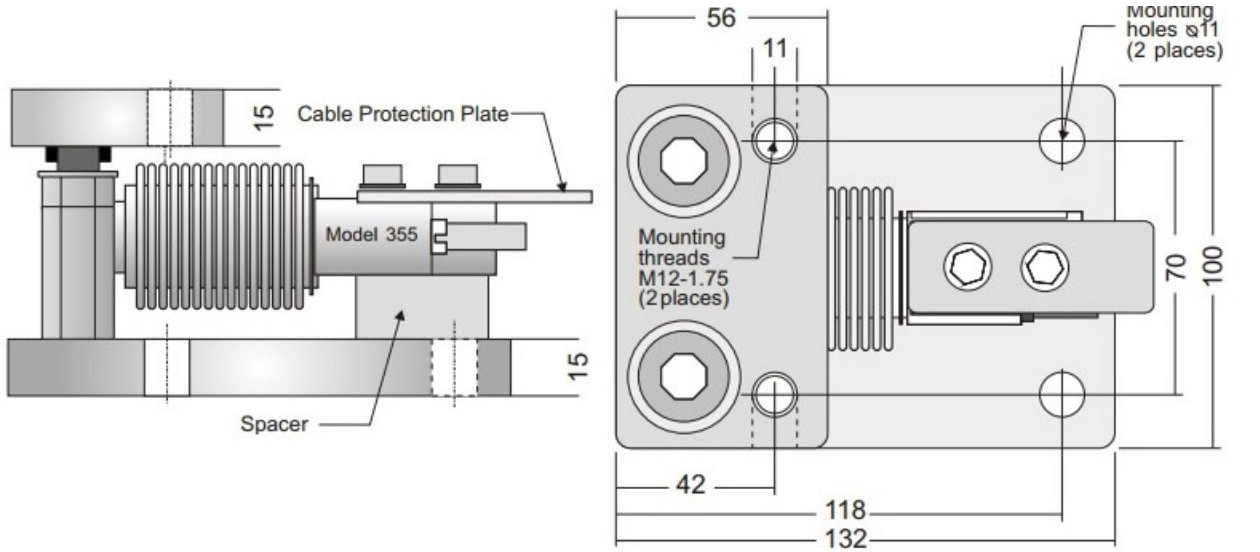

Dimension:
Technical Parameter:
Rated Load: | 10/20/30/50/75/100/150/200/250/300/500kg | ||
Sensitivity: | (2.0±0.1%) m V/V | Operating Temp. Range: | -10~+70℃ |
Combined Error: | ±0.02% F.S | Maximum Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.03% F.S | Ultimate Over Load:: | 300%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP68 |
Input Resistance: | 385±5Ω | Element Material: | Alloy Steel, Stainless Steel |
Output Resistance: | 351±2Ω | Cable: | Length=L:3m |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) | ||
| Product name | LC339M4 Bellow Type Load Cell Suppliers Bending Load Cells Mounting 10/20/30/50/75/100/150/200/250/300/500kg |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
