LC338M Bellow Type Beam Load Cell Bending Or Shear Beam Load Cells 10/20/30/50/75/100/150/200/250/300/1000KG

Availability:
Quantity:
  • LC338M
  • SAINTBOND

Load Cell

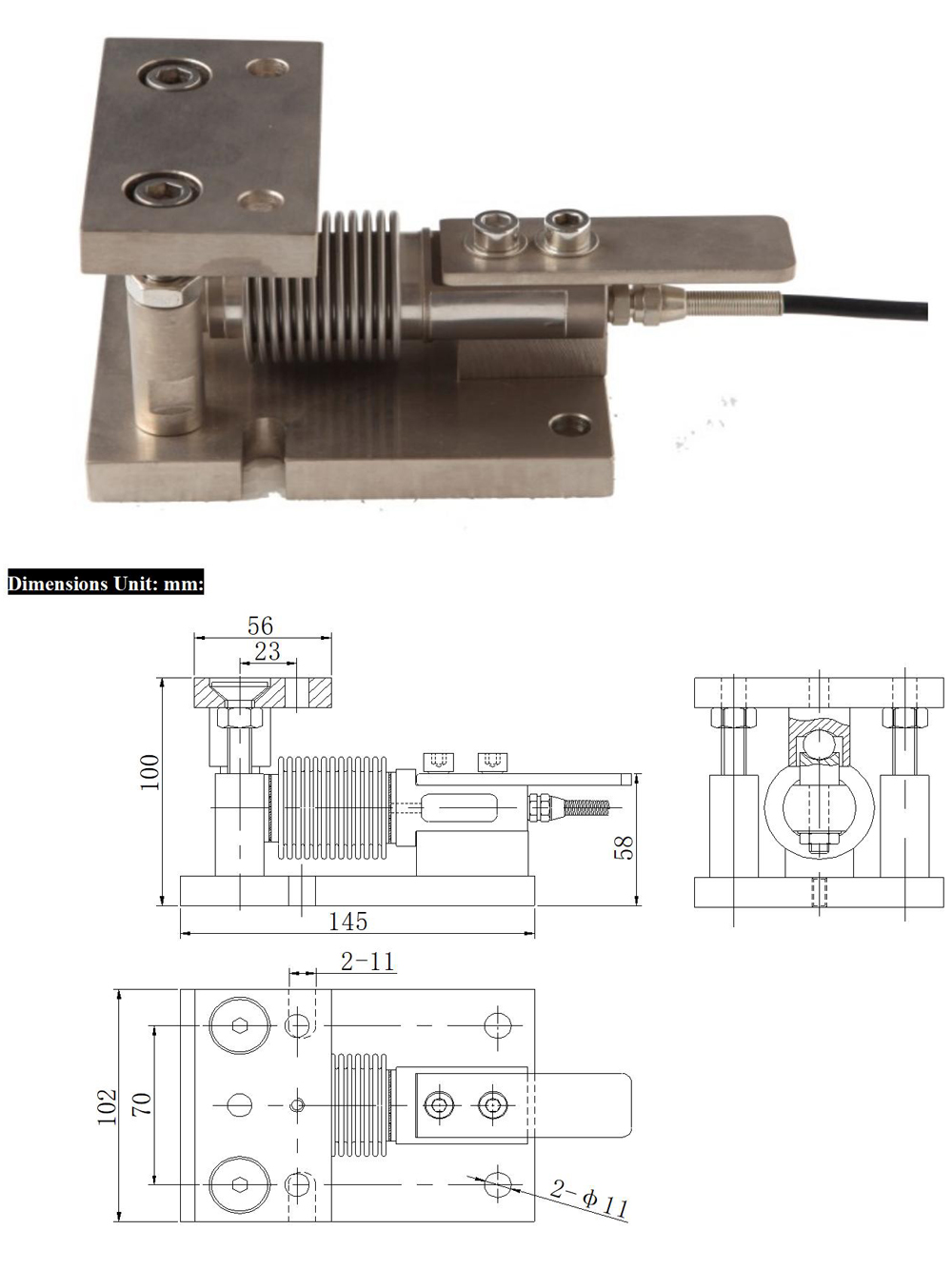

LC338M_01

Products Specification:

lLC338M load cells are available in the capacities 10kg to 1000kg. And the customized capacity is available by request.

lAlloy steel construction,welded with bellow,potted by adhesive inside,oil-proof,waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments.

lSingle point with bellow, easy installation,suitable for crane scales,mechanical conversion scales,hopper scales and other electronic weighing devices.

lSafe and anti-explosive product, can be used in atrocious environment and hazardous areas.



Technical Parameter:

Rated Load:

10/20/30/50/75/100/150/200/250/300/1000kg

Sensitivity:

(2.0±0.1%) m V/V

Operating Temp. Range:

-10~+70℃

Combined Error:

±0.02% F.S

Maximum Safe Over Load:

150%F.S

Creep Error(30min):

±0.03% F.S

Ultimate Over Load::

300%F.S

Zero Balance:

±1% F.S

Recommend Excitation Vol.:

10~12V DC

Temp. Effect On Zero:

±0.02% F.S/10℃

Maximum Excitation Vol.:

15V DC

Temp. Effect On Span:

±0.02% F.S/10℃

Sealing Class:

IP68

Input Resistance:

385±5Ω

Element Material:

Alloy Steel, Stainless Steel

Output Resistance:

351±2Ω

Cable:

Length=L:3m

Insulation Resistance:

≥5000MΩ

Citation:

GB/T7551-2008/ OIML R60

LC332_02LC332_03


圣邦网站1详情页_05

Product name LC338M Bellow Type Beam Load Cell Bending Or Shear Beam Load Cells 10/20/30/50/75/100/150/200/250/300/1000KG
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply

圣邦网站2详情页-1000_03
