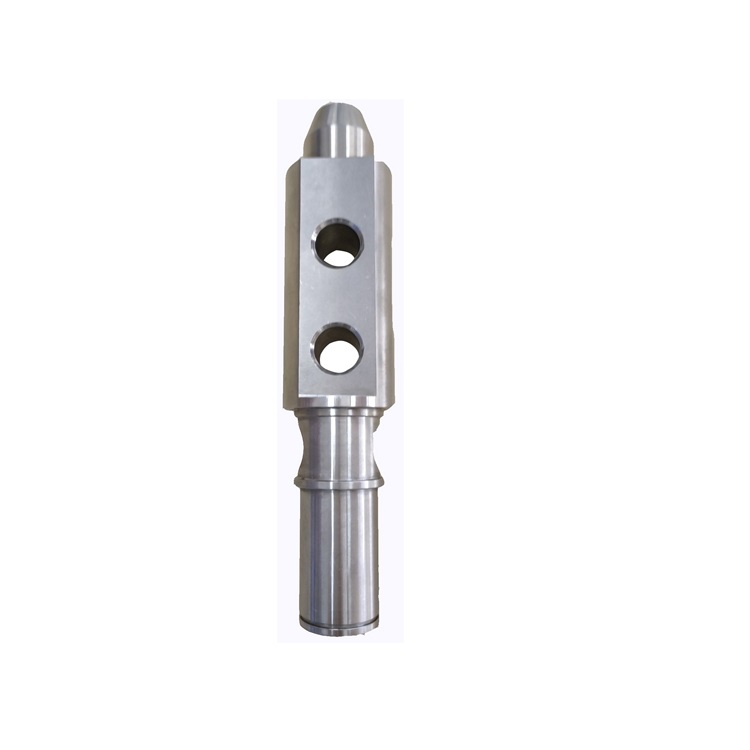

LC337 100kg To 2000kg Bellows Type Load Cells Bellows Bending Beam Load Cell

Availability:
Quantity:
  • LC337
  • SAINTBOND

Load Cell

LC337

Products Specification:

lLC337 are available in the capacities 100kg to 2000kg. And the customized cap.is available by request.

lAlloy / stainless steel construction, potted by adhesive inside, oil-proof, waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments.

lSingle point with bellow, easy installation, suitable for crane scales, mechanical conversion scales,hopper scales and other electronic weighing devices.

lSafe and anti-explosive product, can be used in atrocious environment and hazardous areas.

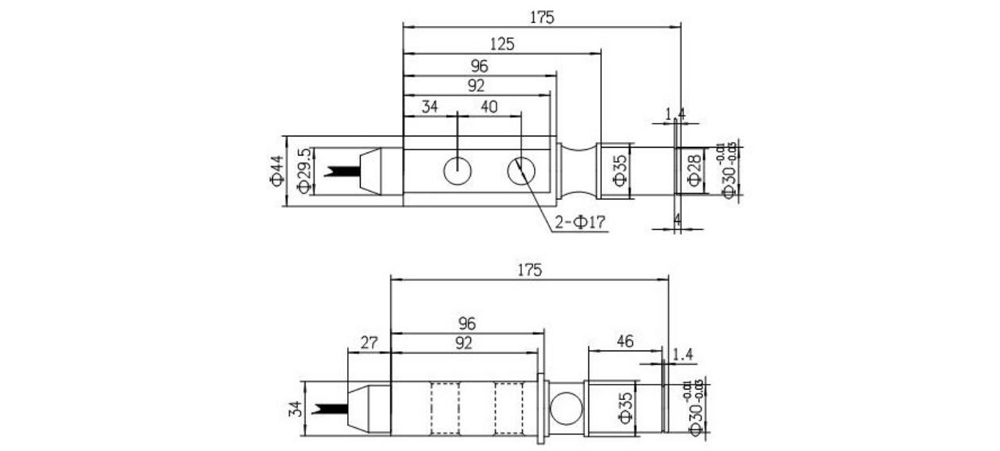

Dimensions Unit: mm:

LC337_01

Technical Parameter:

Rated Load:

100kg~2000kg

Sensitivity:

(2.0±0.1%) m V/V

Operating Temp. Range:

-10~+70℃

Combined Error:

±0.02% F.S

Maximum Safe Over Load:

150%F.S

Creep Error(30min):

±0.03% F.S

Ultimate Over Load::

300%F.S

Zero Balance:

±1% F.S

Recommend Excitation Vol.:

10~12V DC

Temp. Effect On Zero:

±0.02% F.S/10℃

Maximum Excitation Vol.:

15V DC

Temp. Effect On Span:

±0.02% F.S/10℃

Sealing Class:

IP68

Input Resistance:

385±5Ω

Element Material:

Alloy Steel, Stainless Steel

Output Resistance:

351±2Ω

Cable:

Length=L:3m

Insulation Resistance:

≥5000MΩ

Citation:

GB/T7551-2008/ OIML R60

LC332_02LC332_03圣邦网站1详情页_05

Product name LC337 100kg To 2000kg Bellows Type Load Cells Bellows Bending Beam Load Cell
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply

圣邦网站2详情页-1000_03
