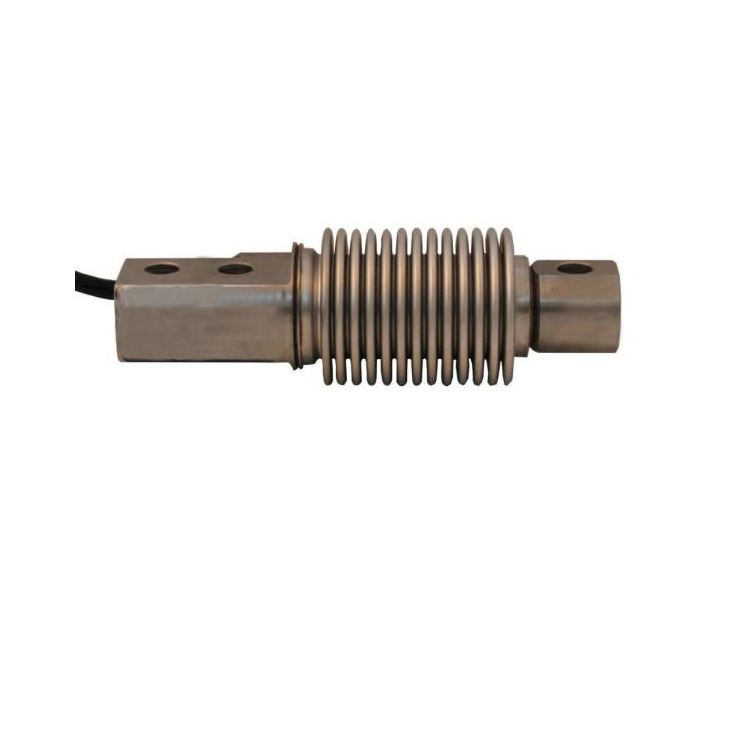

LC3301 China Bellows Sensor Bellow Type BM11 Load Cell10/20/30/50/75/100/150/200/250/300/500kg

Availability:
Quantity:
  • LC3301

  • SAINTBOND

Load Cell

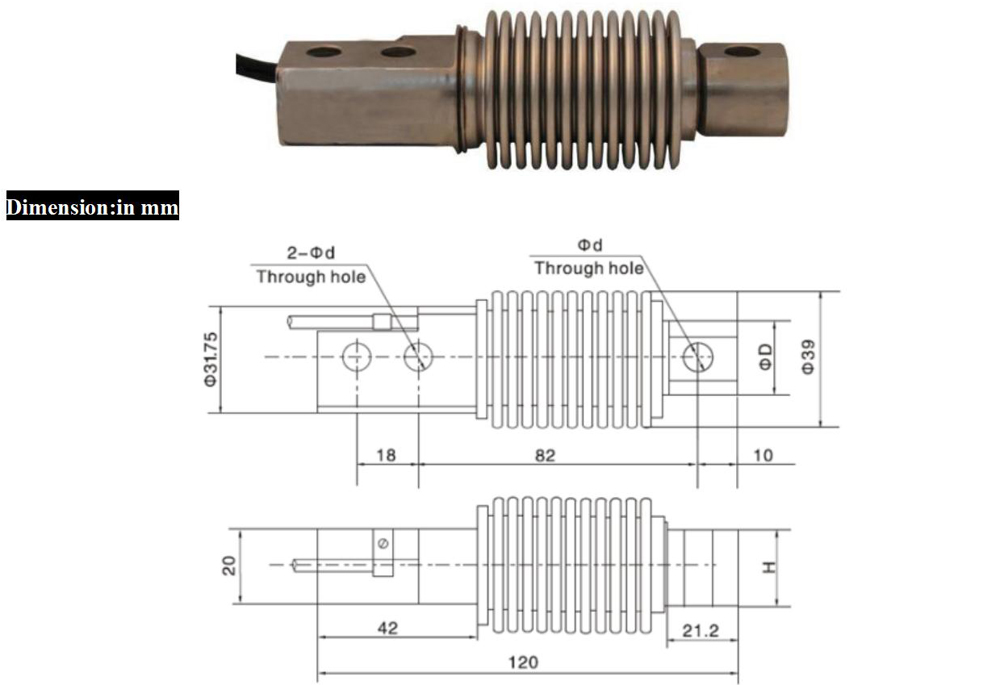

LC3301_01

Cap.

5/10/20/30/50/100/150/200kg

250/300/350/500kg

d

8.2(0.32)

10.3(0.41)

D

23(0.91)

24(0.94)

H

20(0.79)

19(0.75)

Short Description:

Stainless steel IP68 single ended bending beam;

Hermetically sealed;

Suitable for pallet, platform and small hopper scales;

High accuracy;

Current calibrated (sc-option);

Technical Parameter:

Rated Load:

10/20/30/50/75/100/150/200/250/300/500kg

Sensitivity:

(2.0±0.2%)mV/V

Operating Temp. Range:

-10~+70℃

Combined Error:

±0.02% F.S

Maximum Safe Over Load:

150%F.S

Creep Error(30min):

±0.03% F.S

Ultimate Over Load::

300%F.S

Zero Balance:

±1% F.S

Recommend Excitation Vol.:

10~12V DC

Temp. Effect On Zero:

±0.02% F.S/10℃

Maximum Excitation Vol.:

15V DC

Temp. Effect On Span:

±0.02% F.S/10℃

Sealing Class:

IP68

Input Resistance:

460±5Ω

Element Material:

Alloy /Stainless Steel

Output Resistance:

350±3.5Ω

Cable:

Length=L:3m

Insulation Resistance:

≥5000MΩ

Recommended Torque on fixation:

M8:25  M10:50 Nm

LC332_02LC332_03


圣邦网站1详情页_05

Product name LC3301 China Bellows Sensor Bellow Type BM11 Load Cell10/20/30/50/75/100/150/200/250/300/500kg
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply

圣邦网站2详情页-1000_03
