LC3005
SAINTBOND

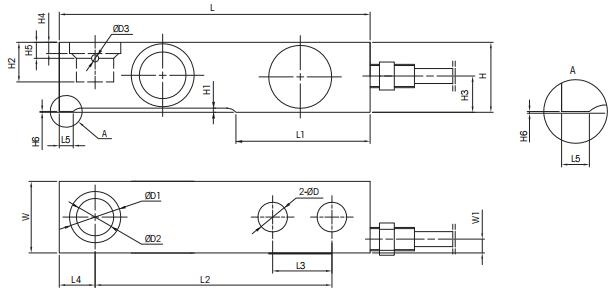

Dimensions Unit:mm:
Cap. | Dimension(mm) | ||||||||||||||||||
(Ton) | D | D1 | D2 | D3 | H | H1 | H2 | H3 | H4 | H5 | H6 | L | L1 | L2 | L3 | L4 | L5 | W | W1 |
0.25~1 | 12.7 | 22 | 15.9 | 3.1 | 30 | 1.9 | 17 | 15.9 | 4.7 | 7.7 | 0.38 | 133.4 | 57.6 | 101.6 | 25.4 | 15.4 | 6.4 | 30.7 | 5.2 |
2 | 12.7 | 22 | 15.9 | 3.1 | 36.6 | 2.8 | 23 | 19.6 | 9.5 | 11.7 | 0.82 | 136.7 | 57.9 | 101.6 | 25.4 | 18.4 | 6.4 | 36.8 | 6 |
3 | 15 | 22 | 15.9 | - | 36.6 | 1.2 | 23 | 19.6 | 9.5 | 11.7 | - | 139.7 | 57.9 | 104.6 | 25.4 | 18.4 | - | 39 | 6 |
5 | 19 | 34.9 | 22.2 | 3.1 | 43 | 2 | 29.4 | 22.5 | 11 | 11.7 | - | 171.5 | 73.8 | 133.3 | 38.1 | 21.5 | - | 42.9 | 6 |
Products Specification:

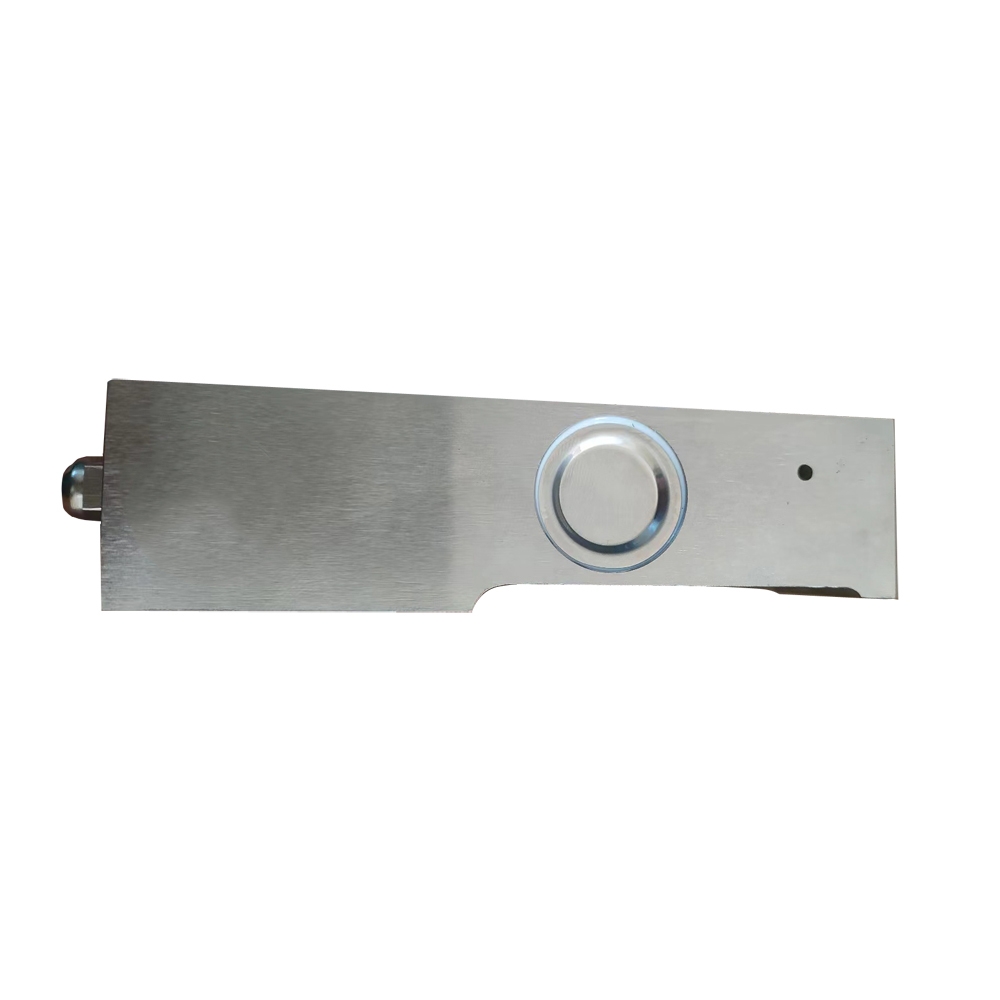

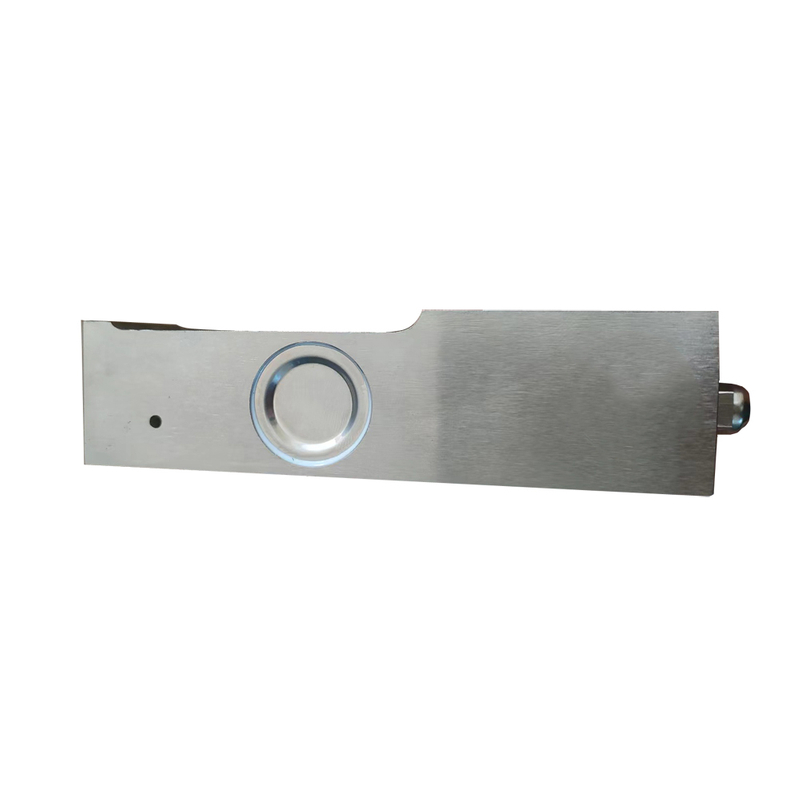

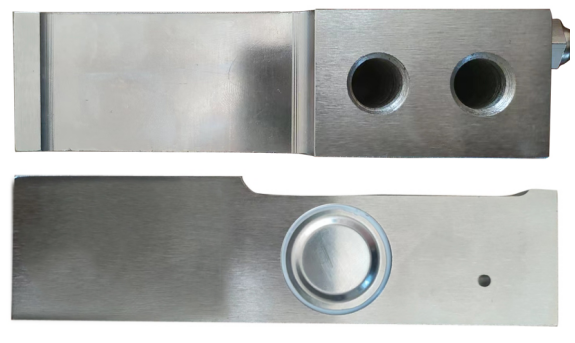

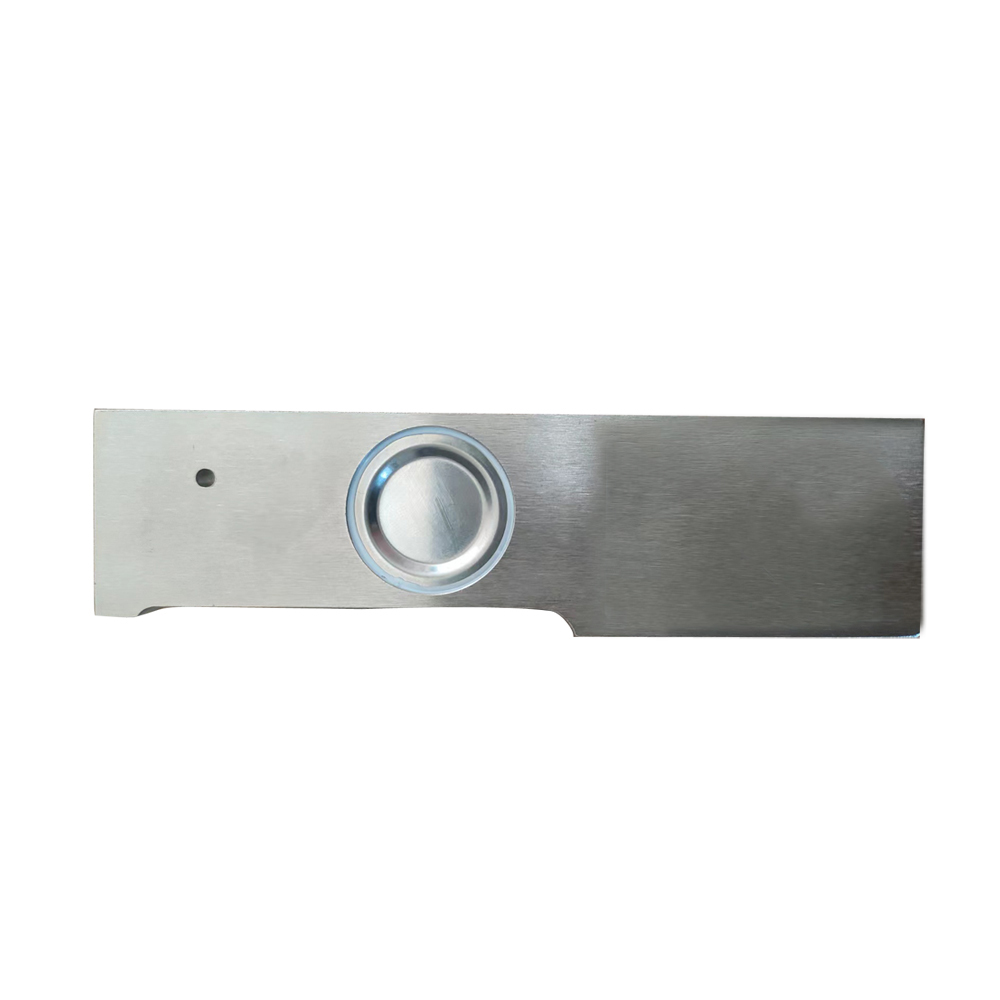

◎LC3005 load cells are available in the capacities 0.25t to 5t.
◎Alloy steel or stainless steel ,sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environment.
◎Single shear beam, easy for installation, suitable for electronic platform scales, hopper scales and other electronic weighing devices.
◎Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.
Technical Parameter:`
Rated Load: | 0.25/0.5/1/2/3/5t | ||
Sensitivity: | (2.0±0.2%) m V/V, | Operating Temp. Range: | -30~+70℃ |
Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Input Resistance: | 385±5Ω | Element Material: | A,SS: Alloy /Stainless Steel |
Output Resistance: | 352±2Ω | Cable: | Length=L:3m |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
| Product name | LC3005 100kg Floor Scale Shear Beam Load Cell for Scale Systems |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
