LC261
SAINTBOND
Product Description:

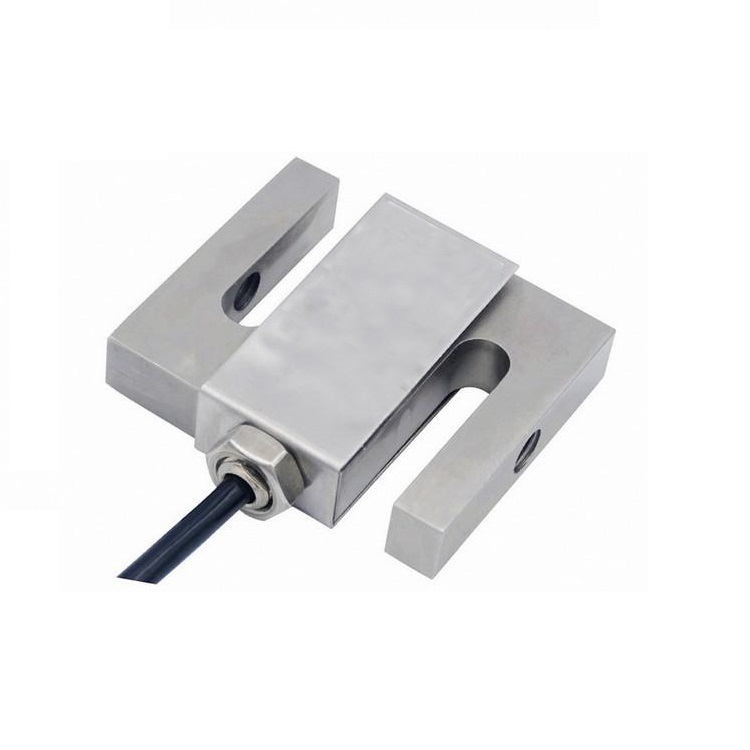

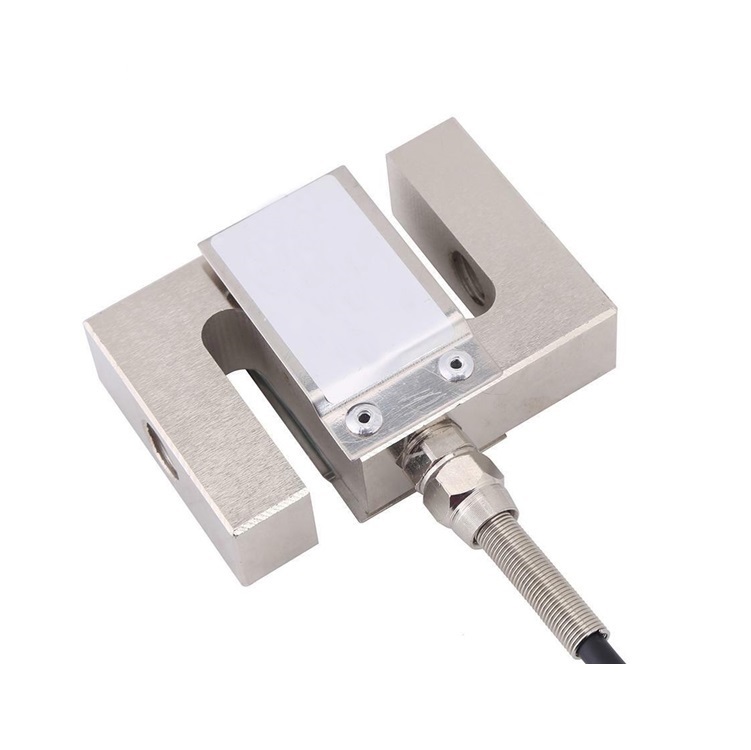

◎Nickel plated alloy steel IP67 "S"type load cell;
◎Tension and compression applications;
◎Suitable for hanging, hopper and other weighing devices;
◎Also available in imperial capacities and dimensions;
Applications:
Suspended tanks and hoppers, crane scales.

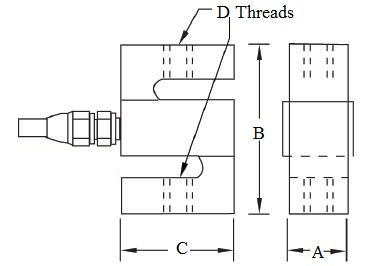

Dimension:inches
Capacity(lb) | 25/50/100lb | 250/500/1k | 2.5k | 5k/10k | 20k | 40k |
A | 0.50 | 0.75 | 1.00 | 1.00 | 2.00 | 2.40 |
B | 2.50 | 3.00 | 3.00 | 4.25 | 7.00 | 7.40 |
C | 2.0 | 2.0 | 2.0 | 3.0 | 5.00 | 5.50 |
D | 1/4-28 | 1/2-20 | 1/2-20 | 3/4-16 | 1 1/4-12 | 1 1/2-12 |
Technical Parameter:
Rated Load: | 25/50/100/250/500lb 1/2.5/5/10/20/40klb | ||
Sensitivity: | (3.0±0.1%) mV/V | Operating Temp.Range: | -30~+70℃ |
Combined Error: | ±0.02% F.S | Maximum Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Input Resistance: | 385±5Ω | Element Material: | Alloy/Stainless Steel |
Output Resistance: | 352±2Ω | Cable: | Length=L:2-16m |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/OIML R60 |
| Product name | LC261 Tension Compression Load Cell S Beam Load Cell for The Industry |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
