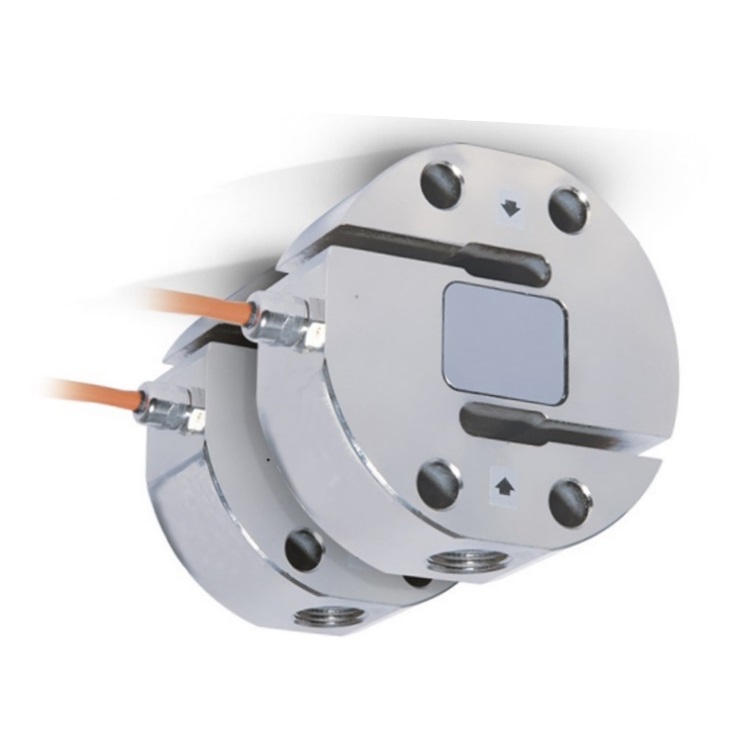

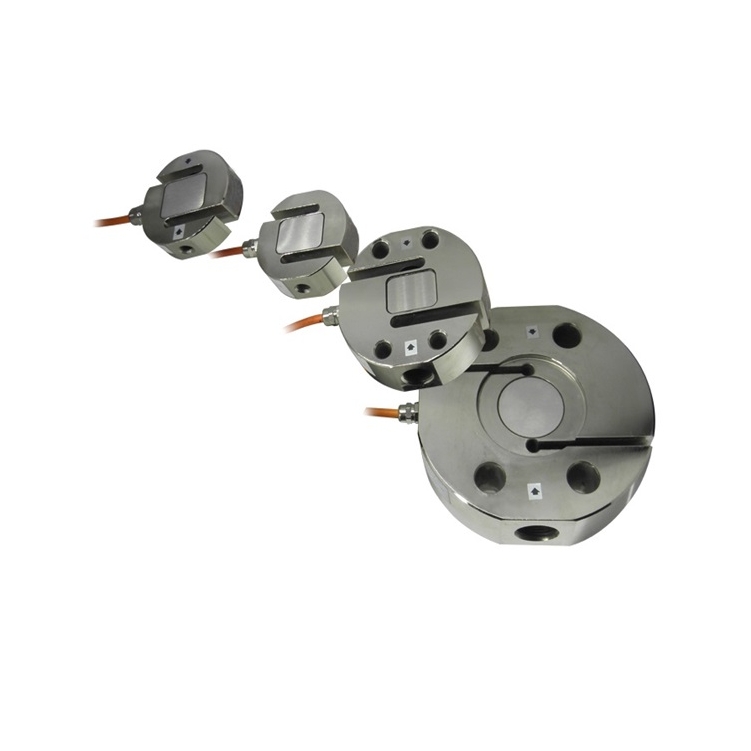

LC254
SAINTBOND
Features:
◎Rod end load cell,s beam structure;
◎Strain gauge technology,analog output;
◎Tension and compression force measurement;
◎Widely used for testing machine,press force test,keyboard testing,auto equipment,production line,press machine.etc;
Applications:
Suspended tanks and hoppers, crane scales.
Dimension:
Cap. | A | Dia.B | Dia.D | Dia.E | H | L | M |
300~500kg | 25 | 80 | M12*1.75 | - | 77 | - | - |
1000kg | 30 | 80 | M12*1.75 | - | 77 | - | - |
2-3-5t | 40 | 118 | M24*2 | 13 | 114 | 86 | 42 |
10t | 50 | 175 | M30*2 | 21 | 168 | 110 | 64 |
Technical Data:
Capacity | 300kg~10t | Output Impedance | 350±5Ω |
Rated output | 2.0 ±10% mV/V | Insulation | >5000MΩ/10VDC |
Non-linearity | ±0.5 % F.S. | Recommended Excitation | 5-15V |
Hysteresis | ±0.5% F.S. | Excitation max | 10V |
Repeatability | ±0.3% F.S. | Compensated Temp Range | -10~60℃ |
Creep(30min) | ±0.3% F.S. | Operating Temp Range | -20~80℃ |
Temp Effect On Output | 0.02 % F.S./10℃ | Safe Load | 1.2of F.S |
Temp Effect On Zero | 0.04% F.S./10℃ | Ultimate Load Limit | 1.5of F.S |
Input Impedance | 380±30Ω | Material | Alloy/Stainless steel |
Product name | LC254 Load Cells S-Type Alloy Steel Stainless Steel S Beam Tension Load Cell |
Brand | SAINTBOND |
Market | All over the world |
Features | High precision and stable performance |
Advantage | 0EM/ODM |
Sample Lead Time | 5~ 40Days |
Sample price | The price is different according to product capacity |
Custom Design | Welcome |
Form of sale | Factory supply |
