LC253
SAINTBOND
Product Description:

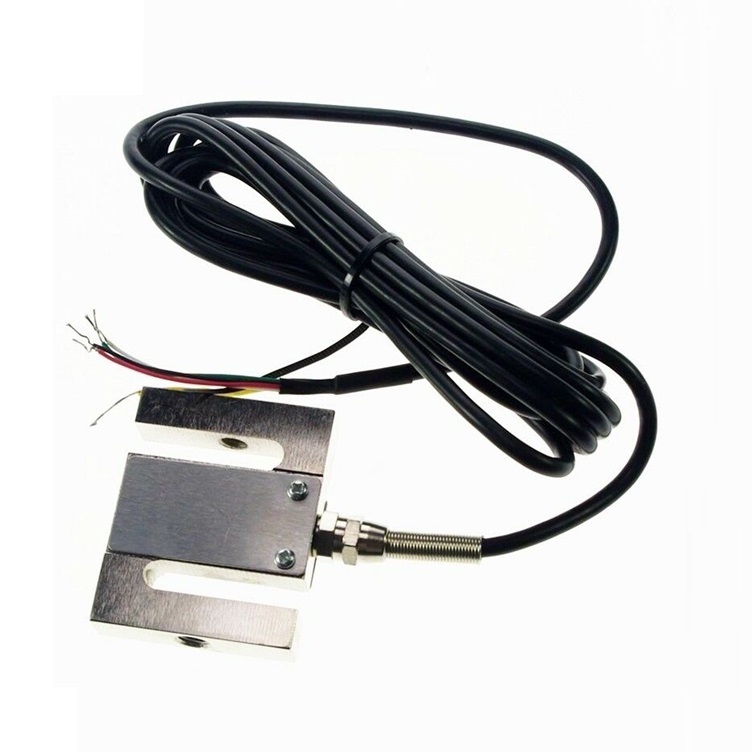

S beam load cell is known as s type load cell because of its feasured s beam structure,Rod end load cell LC253 is able to measure both tension force and compression force.The sensor can convert load or force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.
Features:
◎Rod end load cell,s beam structure;
◎Strain gauge technology,analog output;
◎Tension and compression force measurement;
◎Widely used for testing machine,press force test,keyboard testing,auto equipment,production line,press machine.etc;
Applications:
Suspended tanks and hoppers, crane scales.

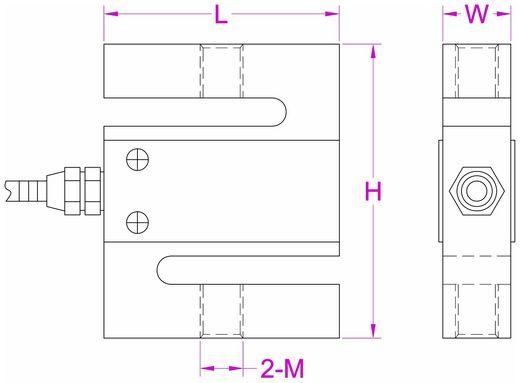

Dimension:
Capacity(kg) | L | W | H | M |
5/10/20/30/50 | 50.8 | 12.7 | 63.5 | M8*1.25 |
100/200/300 | 50.8 | 19 | 76.2 | M12*1.75 |
Technical Data:
Capacity | 50/100/150kg | Output Impedance | 350±5Ω |
Rated output | 2.0 ±10% mV/V | Insulation | >5000MΩ/10VDC |
Non-linearity | ±0.5 % F.S. | Recommended Excitation | 5-15V |
Hysteresis | ±0.5% F.S. | Excitation max | 10V |
Repeatability | ±0.3% F.S. | Compensated Temp Range | -10~60℃ |
Creep(30min) | ±0.3% F.S. | Operating Temp Range | -20~80℃ |
Temp Effect On Output | 0.02 % F.S./10℃ | Safe Load | 1.2of F.S |
Temp Effect On Zero | 0.04% F.S./10℃ | Ultimate Load Limit | 1.5of F.S |
Input Impedance | 380±30Ω | Material | Alloy/Stainless steel |
| Product name | LC253 S Type Standard Loadcells S-Beam Tension And Compression Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
