LC2419
SAINTBOND

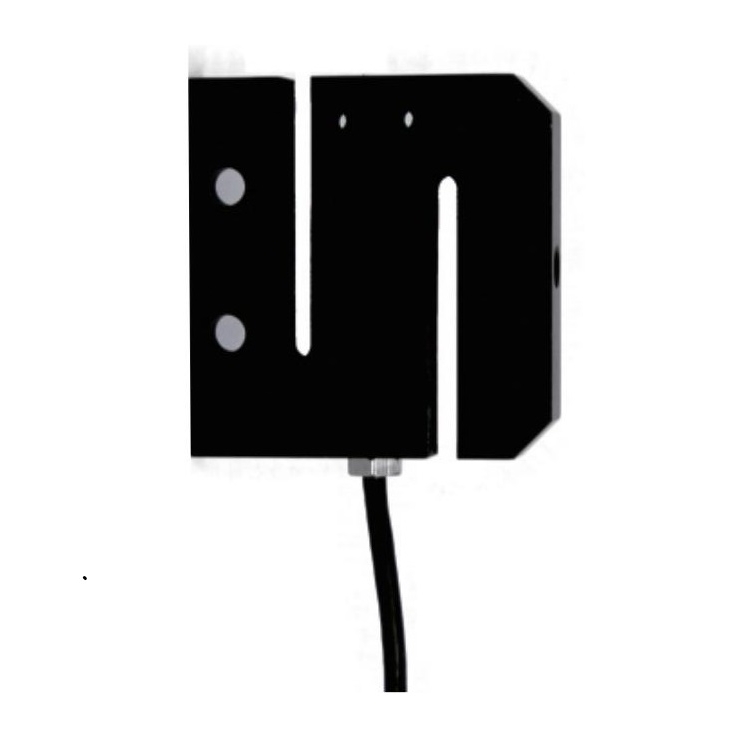

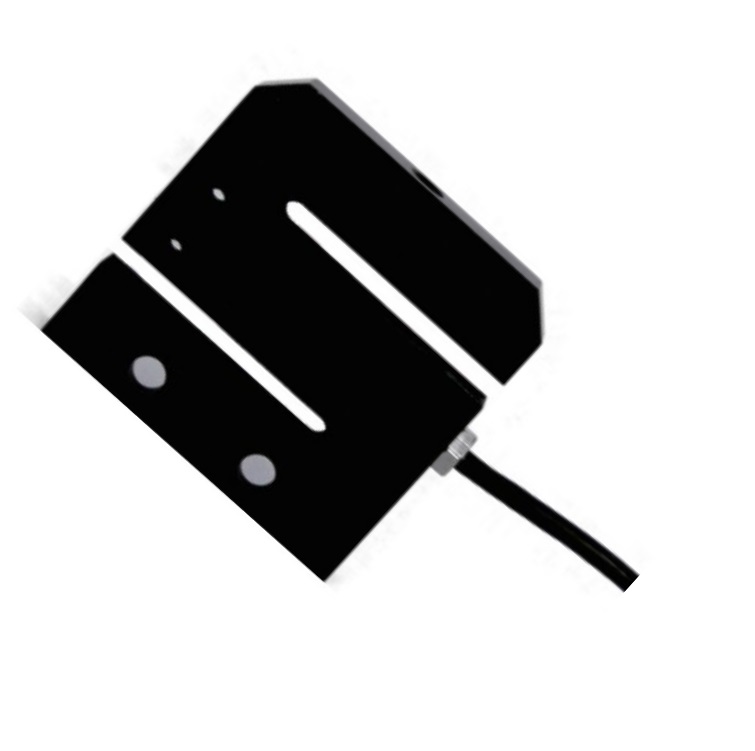

Product Description:
S-type structure, with good output stability and high accuracy; suitable for force testing machine, welding machine, cold and hot pressing film machine, medical equipment and industrial automation measurement and control system.

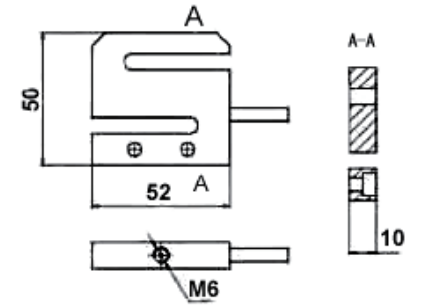

Dimension:
Technical Data:
Capacity | 1kg~20kg | Input Impedance | 380±10Ω |
Rated output | 2.0 ±10% mV/V | Output Impedance | 350±3Ω |
Non-linearity | ≤±0.03%F.S | Insulation | >5000MΩ/100VDC |
Hysteresis | ≤±0.03%F.S | Recommended Excitation | 5～12VDC(10VDC) |
Repeatability | ≤±0.03%F.S | Material | Alloy/Stainless Steel |
Creep(30min) | ≤±0.05％F.S/30min | Compensated Temp Range | -10~60℃ |
Temp Effect On Output | ≤±0.03％F.S/10℃ | Operating Temp Range | -20~80℃ |
Temp Effect On Zero | ≤±0.03％F.S/10℃ | Safe Load | 1.2 |
Protection Class | IP65 | Ultimate Load Limit | 1.5 |
| Product name | LC2419 Load Cells And Force Transducers Micro S Load Cells & Sensors |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
