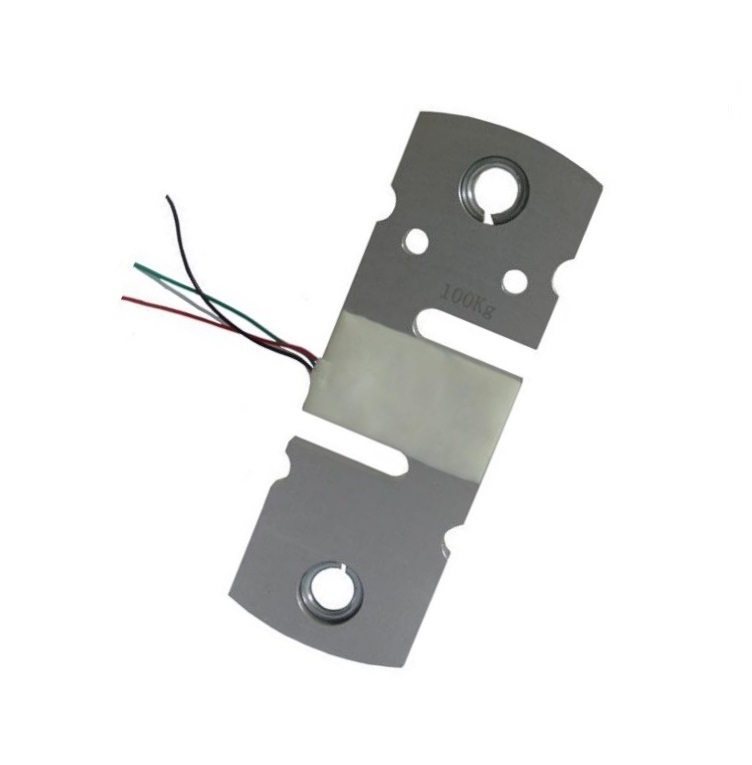

LC2417
SAINTBOND
Dimension:
Description:
Capacity: 100, 200, 300kg
Usage: crane scale ,tensile testing
Dimension: 133*46*8 mm
Features
S-type load cells
capacity: 100, 200, 300kg
accuracy:0.03% R.O.
aluminum construction with surface anodized
environment protection class:IP65
Applications
crane scales
hopper scales
tensile testing
test benches
machine testing
Description
SAINTBOND S-type Load Cells have been designed for measuring static and dynamic tensile and compressive forces.
Advantages of SAINTBOND S-type Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and you benefit from a new generation of high-precision, S-type load cells. Be it force measurement in machines, test benches and production lines or tests in development: SensorWorld S-type load cells are the reliable and safe choice for precise force measurement - providing compelling benefits for you.
Model LC2417 load cells are designed to this “S-type”and manufactured from high quality aluminum alloy of aviation standard. MiNi040 load cells can be used to measure loads range from 100kg to 300kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output) and 1.5mV/V output signal.
LC2417 load cells are mainly used for crane scales,hopper scales,tensile testing,test benches and machine testing.
Technical Data:
Rated Capacity | 100/200/300kg | Temp.Effect on Output | ±0.02%R.O./10℃ |
Accuracy Class | B | Temp.Effect on Zero | ±0.02%R.O./10℃ |
Rated Output | 1.5±0.2mV/V | Compensated Temp.Range | -10－+50℃ |
Zero Balance | ±0.02%R.O. | Excitation,Recommended | 5－12VDC |
Input Resistance | 1168±10Ω | Excitation,Maximum | 10VDC |
Output Resistance | 1000±3Ω | Operating Temp.Range | -20－+60℃ |
Linearlty Error | ±0.03%R.O. | Safe Overload | 120%R.C. |
Repeatability Error | ±0.01%R.O. | Insulation Resistance | ≥5000MΩ(50VDC) |
Hysteresis Error | ±0.03%R.O. | Cable,Length | ø1.0mm×0.18m * |
Creep in 30 Min. | ±0.02%R.O. | Protection Class | IP65 |
| Product name | LC2417 Precision Load Sensors Aluminum Tension Compression Load Cell for The Industry |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
