LC2416
SAINTBOND

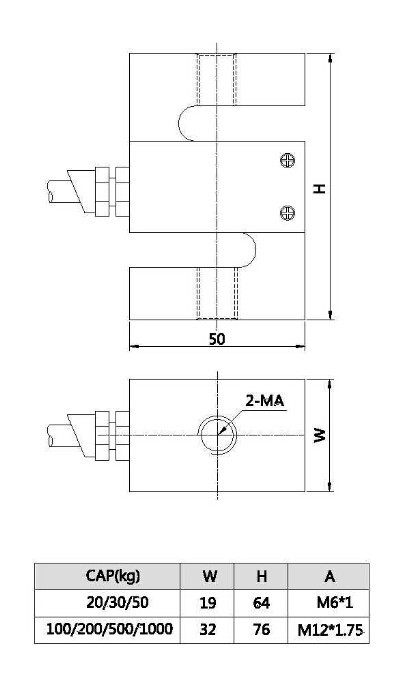

Dimension:
Description:

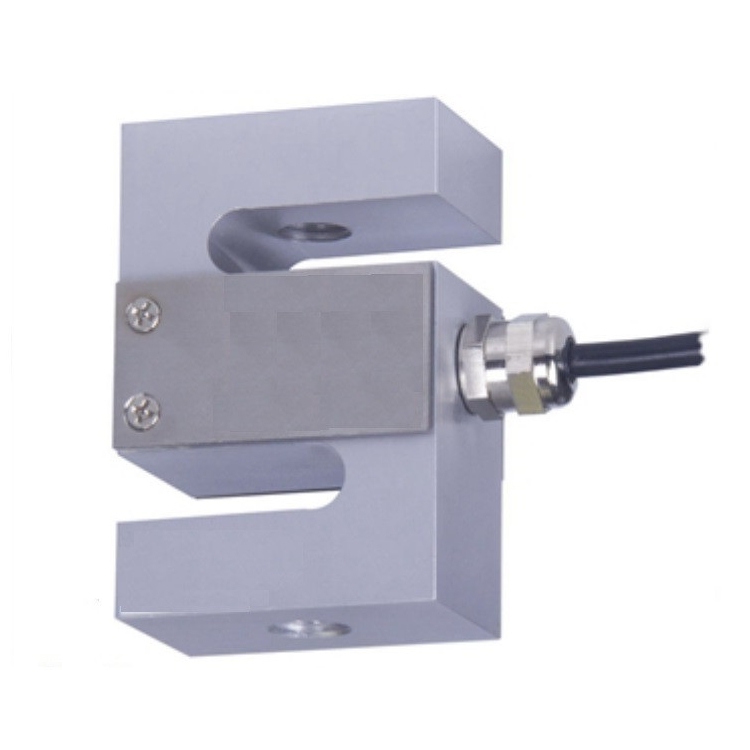

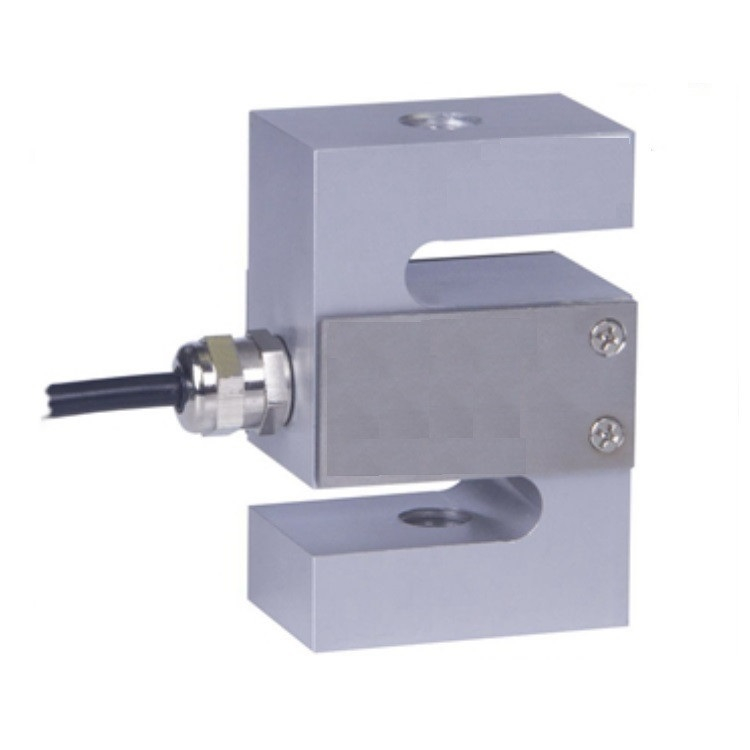

SAINTBOND S-type Load Cells have been designed for measuring static and dynamic tensile and compressive forces.
Advantages of SAINTBOND S-type Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and you benefit from a new generation of high-precision, S-type load cells. Be it force measurement in machines, test benches and production lines or tests in development: SensorWorld S-type load cells are the reliable and safe choice for precise force measurement - providing compelling benefits for you.
Model LC2416 load cells are designed to this “S-type”and manufactured from high quality aluminum alloy of aviation standard. MiNi039 load cells can be used to measure loads range from 20kg to 1000kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output) and 2mV/V output signal.
LC2416 load cells are mainly used for crane scales,hopper scales,tensile testing,test benches,tension control and machine testing.
Features:
◎S-type load cells
◎Capacity:20kg,...,1000kg
◎Accuracy:0.3% R.O.
◎Microminiaturization structure
◎Aluminum construction with surface anodized
◎Environment protection class:IP65
Applications:
◎Crane scales
◎Hopper scales
◎Tensile testing
◎Test benches
◎Machine testing
Technical Data:
Model | LC2416 | Excitation,Recommended | 5－12VDC |
Rated Capacity | 20/30/50/100/200/500/1000Kg | Excitation,Maximum | 18VDC |
Accuracy Class | B | Operating Temp.Range | -20－+60℃ |
Rated Output | 2.0±5%mV/V | Safe Overload | 150%R.C. |
Zero Balance | ±2%R.O. | Ultimate Overload | 200%R.C. |
Input Resistance | 405±10Ω | Insulation Resistance | ≥2000MΩ(50VDC) |
Output Resistance | 350±3Ω | Cable,Length | ø5mm×3m * |
Linearlty Error | ±0.03%R.O. | Protection Class | IP66 |
Repeatability Error | ±0.02%R.O. | Temp.Effect on Output | ±0.03%R.O./10℃ |
Hysteresis Error | ±0.02%R.O. | Temp.Effect on Zero | ±0.05%R.O./10℃ |
Creep in 30 Min. | ±0.03%R.O. | Compensated Temp.Range | -10－+40℃ |
| Product name | LC2416 Miniature Inline Load Cell Aluminum Tension And Compression Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
