LC2407
SAINTBOND

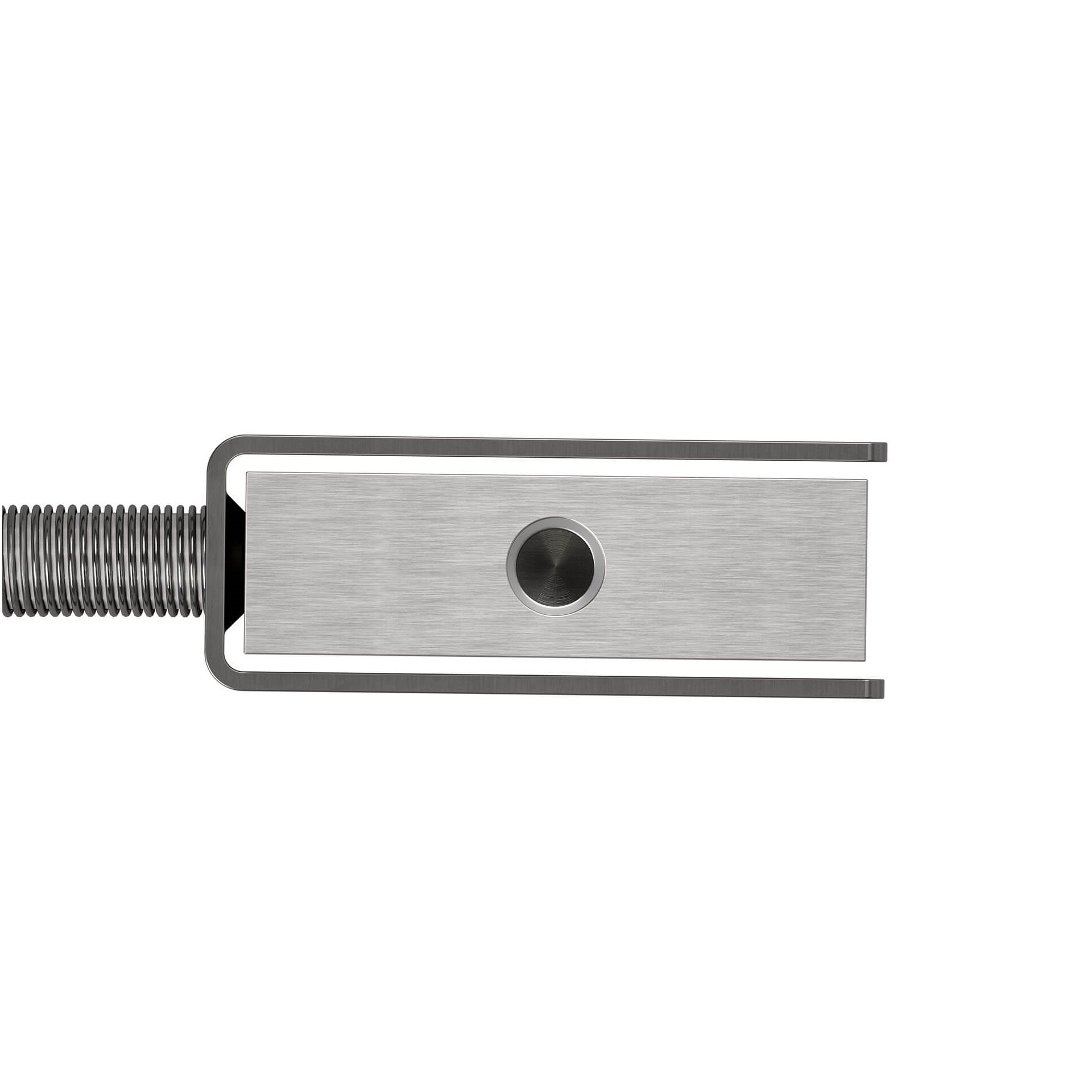

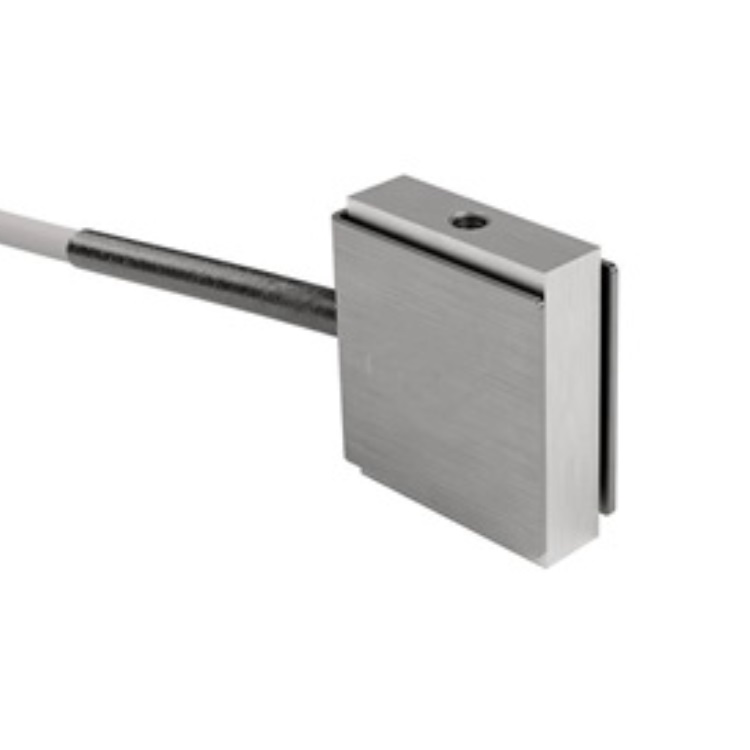

Product Description:
The LC2407 is a series of miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control.The compact design enables the Mini047 to be easily embedded into machinery or test equipment -ideal for packaging machinery, assembly machinery or end-ofline test equipment.Available in a range of standard capacities from 1lb through to 10lb; the Mini047 is configured for tension and compression force measurement. Full-bridge, bonded foil strain gauge technology provides excellent long-term stability and ensures high performance even in applications requiring in excess of 1 million load cycles. The Mini047 built-in overload protection operates in both tension and compression modes. Constructed from high grade aluminium, the sensor is protected by means of a stainless-steel cover. The LC2407 can be supplied with standard cable configurations or with industry standard connectors.
Applications:
General test and measurement as well as machine monitoring and control. Ideal for packaging machinery, assembly machinery or end-of-line test equipment.
Technical Data:
Capacity | 1/2/5/10/25/50/100lb | ||
Rated output | 2mV/V | Output Impedance | 1,000Ω |
Non-linearity | ±0.05 % F.S. | Material | Aluminum |
Hysteresis | ±0.05% F.S. | Insulation | >5000MΩ/10VDC |
Repeatability | ±0.03% F.S. | Recommended Excitation | 5V |
Creep(30min) | ±0.03% F.S. | Excitation max | 10V |
Temp Effect On Output | 0.05 % F.S./ 10℃ | Compensated Temp Range | -10~60℃ |
Temp Effect On Zero | 0.05% F.S./ 10℃ | Operating Temp Range | -20~80℃ |
Protection Class | IP 65 | Safe Load | 1.2 |
Input Impedance | 1,000Ω | Ultimate Load Limit | 1.5 |
| Product name | LC2407 Ring Type Wireless Tension Load Cell Miniature S-beam Force Transducer |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
