LC2305
SAINTBOND

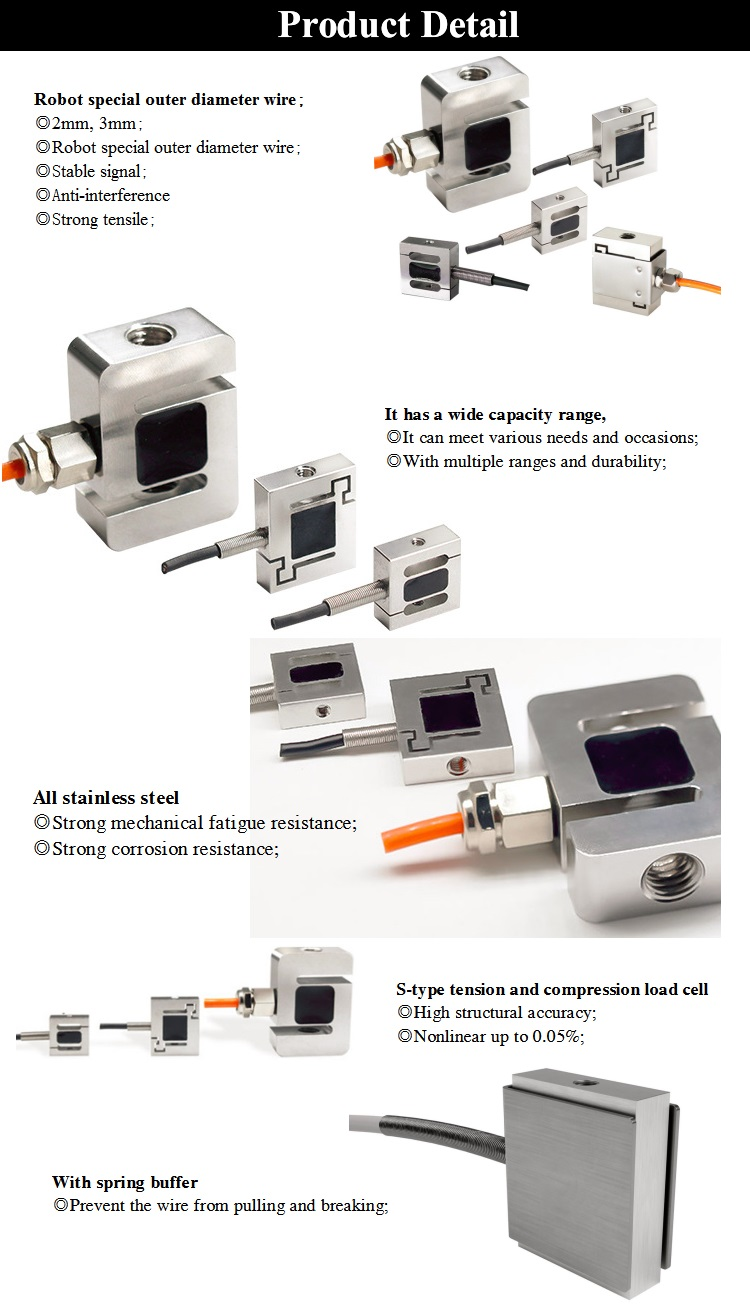

Features:
◎Compact, easy to install
◎High measuring accuracy, is the preferred type of small range pull pressure sensor
◎Suitable for tension measurements, batching systems, industrial scales and package systems, etc

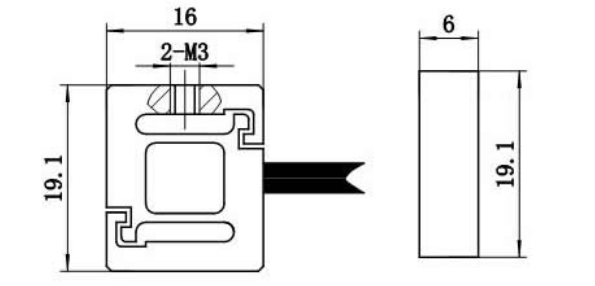

Dimension:
Specification:
Capacity: | 1/2/3/5/10/20/30/50/100kg | ||
Rated Output: | 1.0mV/V ±0.1% | Safe Temp. Range: | -10ºC to + 70ºC |
Zero Balance: | ±1% of rated output | Temp. Compensated: | -10ºC to + 40ºC |
Creep After 30 Minutes: | ±0.1% of rated output | Safe Overload: | 150% |
Nonlinearity: | ±0.1% of rated output | Input Impedance: | 387 ohm ± 20 ohm |
Hysteresis: | ±0.1% of rated output | Output Impedance: | 350 ohm ± 5 ohm |
Repeatability: | ±0.1% of rated output | Rated Excitation: | 10V DC/AC |
Temp. Effect On Output: | ≤0.02% of applied output/ºC | Maximum Excitation: | 15V DC/AC |
Temp. Effect On Zero: | ≤0.02% of applied output/ºC | ||

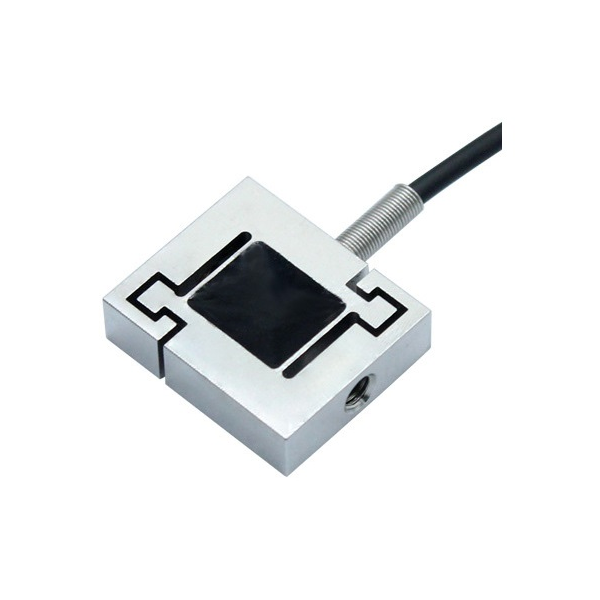

| Product name | LC2305 In-line Force Sensor Load Cell S-type Force Transducers |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
