LC2304
SAINTBOND
Product Description::
◎S-Type load cell;
◎Aluminum construction;
◎Easy to install, stable & reliable;
◎Suitable for tension measurement, batching systems, industrial scales and package systems, etc;

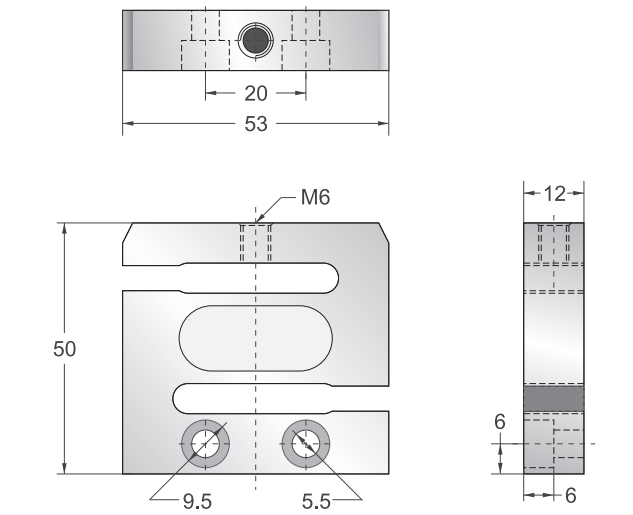

Dimension:
Technical Parameter:
Cap. | 5/7.5/10/20/30kg/50/100kg | Wire Length | 17cm |
Rated Output | 2.0mV/V ±5% | Safe Temp. Range | 70ºC |
Zero Balance | ±3% of F.S | Temp. Compensated | -10ºC to + 40ºC |
Creep after 30 minutes | ±0.03% of F.S | Safe Overload | 1.5 |
Nonlinearity | ±0.03% of F.S | Input Impedance | 410 ohm ± 5 ohm |
Hysteresis | ±0.03% of F.S | Output Impedance | 350 ohm ± 3 ohm |
Repeatability | ±0.03% of F.S | Insulation Resistance | ≥5000 M ohm (50V DC) |
Temp. effect on output | ≤0.002% of F.S/ºC | Rated Excitation | 10V DC/AC |
Temp. effect on zero | ≤0.002% of F.S/ºC | Maximum Excitation | 15V DC/AC |
Material | Aluminum / Stainless steel |
| Product name | LC2304 10t 45t Tension Load Cell Electronic S Type Tension Load Cell Sensor |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
Product Description::
◎S-Type load cell;
◎Aluminum construction;
◎Easy to install, stable & reliable;
◎Suitable for tension measurement, batching systems, industrial scales and package systems, etc;
Dimension:
Technical Parameter:
Cap. | 5/7.5/10/20/30kg/50/100kg | Wire Length | 17cm |
Rated Output | 2.0mV/V ±5% | Safe Temp. Range | 70ºC |
Zero Balance | ±3% of F.S | Temp. Compensated | -10ºC to + 40ºC |
Creep after 30 minutes | ±0.03% of F.S | Safe Overload | 1.5 |
Nonlinearity | ±0.03% of F.S | Input Impedance | 410 ohm ± 5 ohm |
Hysteresis | ±0.03% of F.S | Output Impedance | 350 ohm ± 3 ohm |
Repeatability | ±0.03% of F.S | Insulation Resistance | ≥5000 M ohm (50V DC) |
Temp. effect on output | ≤0.002% of F.S/ºC | Rated Excitation | 10V DC/AC |
Temp. effect on zero | ≤0.002% of F.S/ºC | Maximum Excitation | 15V DC/AC |
Material | Aluminum / Stainless steel |
| Product name | LC2304 10t 45t Tension Load Cell Electronic S Type Tension Load Cell Sensor |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
