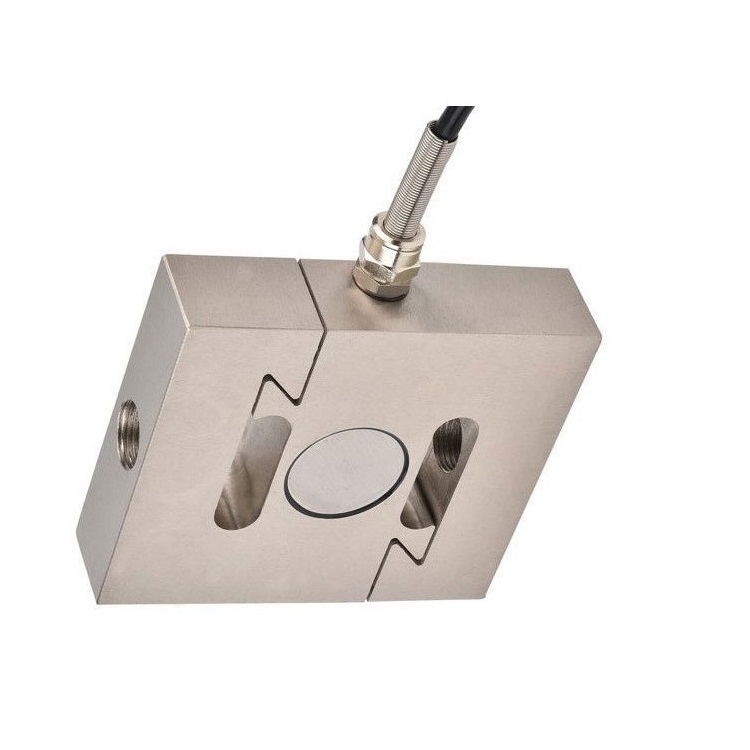

LC226 Loadcell Manufacturer Force Transducers Tension Compression Load Cell

Sensitivity:

(2.0±0.1%) m V/V

Operating Temp. Range:

-30~+70℃

Combined Error:

±0.02% F.S

Maximum Safe Over Load:

150%F.S

Creep Error(30min):

±0.02% F.S

Ultimate Over Load:

300%F.S

Zero Balance:

±1 % F.S

Recommend Excitation:

10~12V DC

Temp. Effect On Zero:

±0.02% F.S/10℃

Maximum Excitation:

15V DC

Temp. Effect On Span:

±0.02% F.S/10℃

Sealing Class:

IP67/IP68

Input Resistance:

385±5Ω

Element Material:

Alloy /Stainless Steel

Output Resistance:

352±2Ω

Cable:

Length=L:3m~5m

Insulation Resistance:

≥5000MΩ

Citation:

GB/T7551-2008/ OIML R60
