LC220W
SAINTBOND
Building upon the ever popular and industry leading loadlink, GOLDSHINE once again sets the bar for the digital Dynamometer market. By adding industry leading wireless capabilities to GOLDSHINE'S advanced microprocessor based electronics,the radiolink plus adds flexibility and increases safety, allowing the load to be monitored from up 500t meters away.
The GOLDSHINE Wireless system providing high integrity,error free transmission of data, and is unmatched in performance,capable of providing a license free transmission range of up to 500~800 meters. GOLDSHINE features a range of cost effective high accuracy load link load cells offering high safety factor and resolution, and a robust carry/storage case.

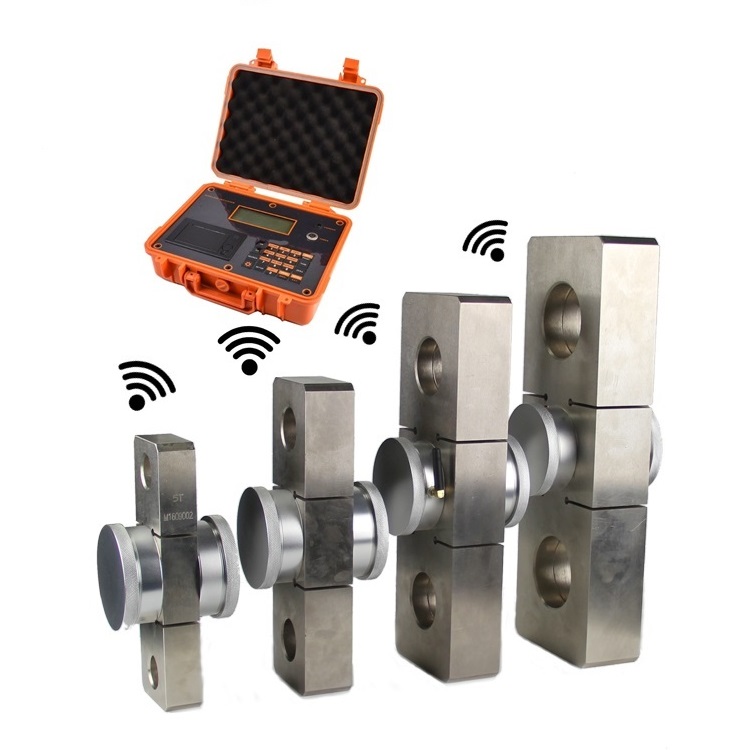

The standard range of the load link load cells is from 1tonnes to 500 tonnes and includes wireless load links that link to a hand held display (or a display with printer optional), load links with built in display and load links with analogue output.
Their rugged construction makes them ideal for lifting and weighing operations in the most extreme environments, including marine, offshore and onshore applications. Available with a wide variety of applications from testing and overhead weighing to bollard pulling and tug testing.
At China Industries we have over 10 years experience designing, manufacturing and supplying load cells of the highest quality. We can supply all your load cell requirements and offer expert load cell and applications advice.
View our load links range online today or contact our friendly team for specialist load cell and applications advice.
Available Options:
◎Hazardous area Zone 1 and 2
◎Built-in-display option
◎Available with a range of displays to suit each application
◎Environmentally sealed to IP67 or IP68
◎Can be used singularly or in sets
Dimension:
Cap./t | H | W | L | L1 | A |
1~5t | 76 | 34 | 230 | 160 | 38 |
7.5~10t | 90 | 47 | 280 | 180 | 40 |
20~30t | 125 | 55 | 370 | 230 | 53 |
40~60t | 150 | 85 | 430 | 254 | 73 |
80~150t | 220 | 115 | 580 | 340 | 98 |
200t | 265 | 183 | 725 | 390 | 280 |
250t | 300 | 200 | 800 | 425 | 305 |
300t | 345 | 200 | 875 | 460 | 305 |
500t | 570 | 200 | 930 | 510 | 305 |
Wireless Load Links Typical Specifications:
Rate Load: | 1/5/10/20/30/50/80/100/150/200/250/300/500T | ||
Battery Type: | 18650 rechargeable batteries or polymer batteries (7.4v 2000 Mah) | ||
Proof Load: | 150% of rate load | Max. Safety Load: | 125% F.S. |
Ultimate Load: | 400% F.S. | Battery Life: | ≥40 hours |
Power On Zero Range: | 20% F.S. | Operating Temp.: | - 10℃ ~ + 40℃ |
Manual Zero Range: | 4% F.S. | Stable Time: | ≤10seconds; |
Tare Range: | 20% F.S. | Remote Controller Distance: | Min.15m |
Operating Humidity: | ≤85% RH under 20℃ | System Range: | 500~800m (In Open Area) |
Overload Indication: | 100% F.S. + 9e | Telemetry Frequency: | 470mhz |
Accessories / Related Products:
| Product name | LC220W Digital Dynamometer Load Link Wireless Tension Load Cells 1/5/10/20/30/50/80/100/150/200/250/300/500T |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
