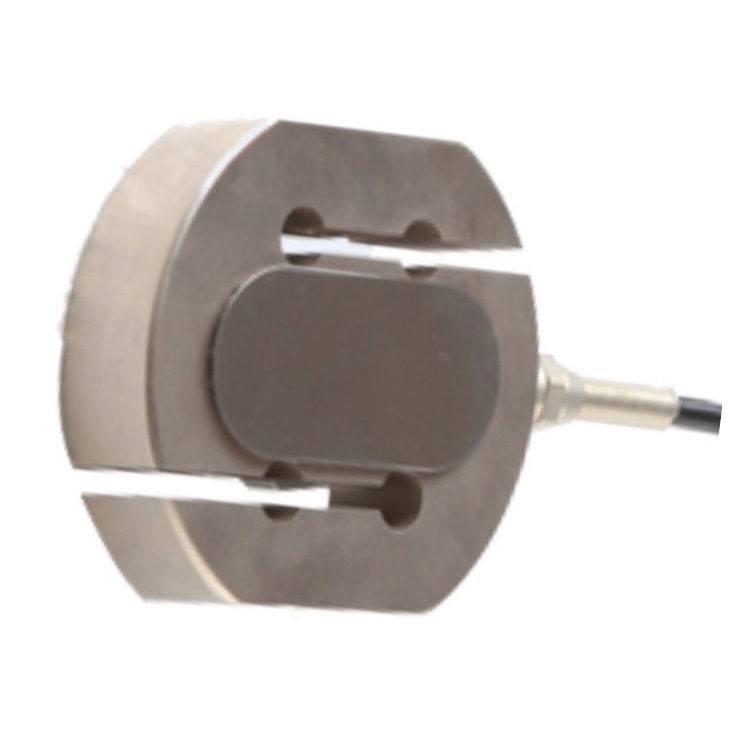

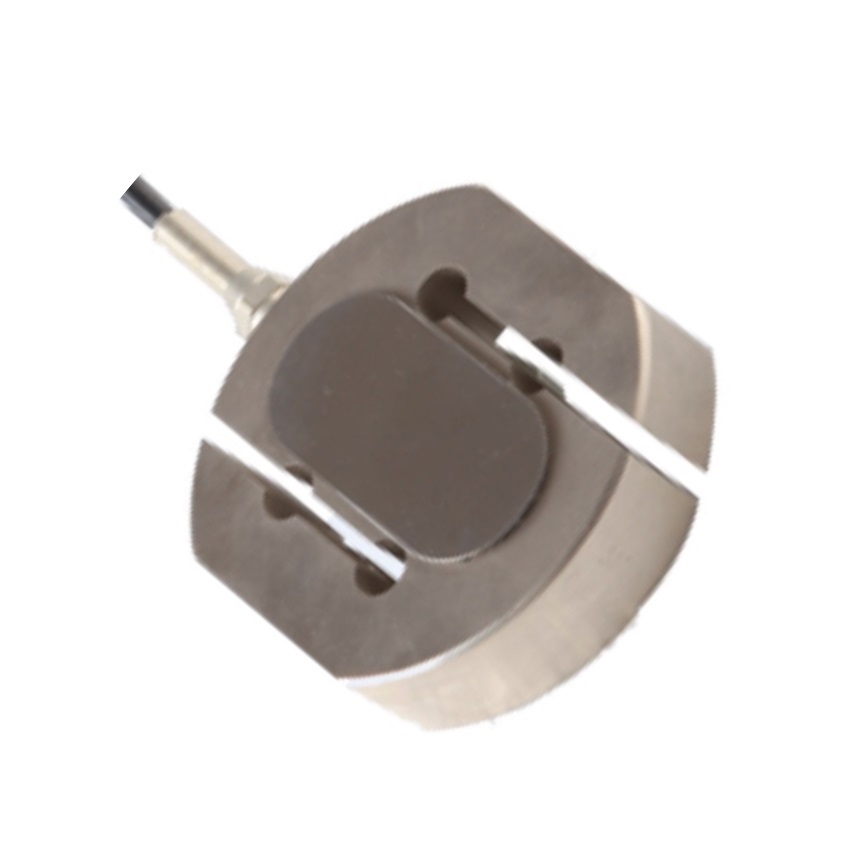

LC214
SAINTBOND
Dimension: Unit:mm
Cap./Size | A | M |
220/330/550/1000kg | 29 | M12 |
2t | 58 | M16×1.5 |
Product Characteristics:
S-type load cells derive their name from their shape which, of course, is the shape of the letter "S". Our S Beam Load Cells (Tension/ Compression) offer a compact design for a variety of applications. Available in standard and metric, the S Beam Load Cell series provides accuracy, compact design features, overload protection (select models), and a wide capacity range to choose from. S Beam Load Cells are also commonly known as Z Beam Load Cells or S Type Load Cells. Most models can be modified or customized to meet your requirements and most models are available in our inventory making it available for quick delivery.
Technical Parameter:
Rated Load: | 220/550/1000/2000kg | Operating Temp. Range: | -30~+70℃ |
Sensitivity: | (2.0±0.1%) mV/V | Max. Safe Over Load: | 150%F.S |
Combined Error: | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
Creep Error(30min): | ±0.02% F.S | Recommend Excitation Vol | 10~12V DC |
Zero Balance: | ±1% F.S | Max. Excitation Vol.: | 15V DC |
Temp. Effect On Zero | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Temp. Effect On Span | ±0.02% F.S/10℃ | Element Material: | AS, SS |
Input Resistance: | 385±5Ω | Cable: | Length=L:3m |
Output Resistance: | 352±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Black(Input-), Green(Output+),White(Output-) |
| Product name | LC214 High Accuracy Weighing Load Cell Steel S-type Load Cell Sensor 500Kg |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
