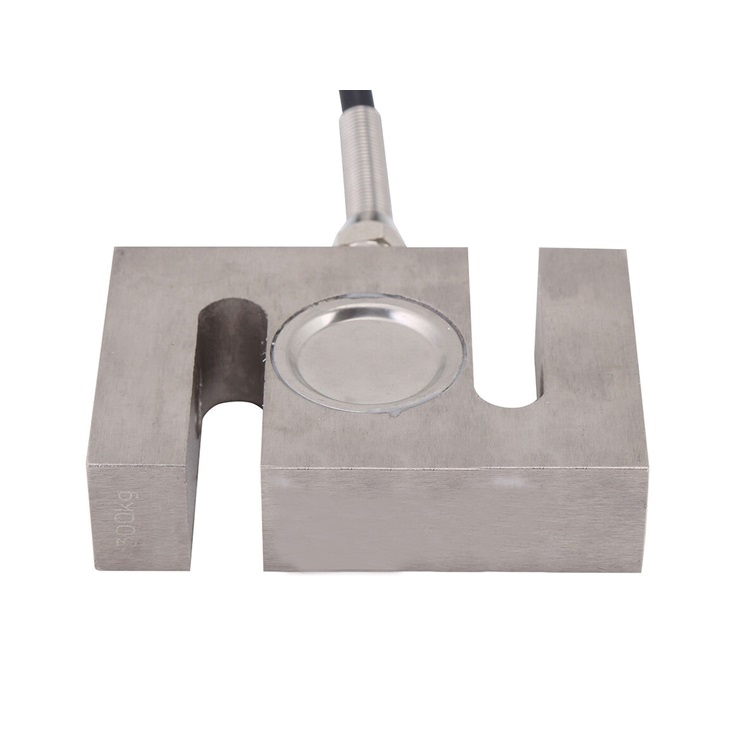

LC2006
SAINTBOND
Product Description::
S type load cell, tension and compression, good output symmetry, compact structure, simply to install, full range of capacities. Suitable for electromechanical scale, crane scale, hopper scale and various special scales.
Dimension:
Cap.(t) | A | B | H | T |
0.5~3t | 64 | 28 | 86 | M16 |
5t | 80 | 36 | 106 | M18×1.5 |
10t | 130 | 50.8 | 178 | M30×2 |
15~20t | 160 | 60 | 790 | M39×2 |
Technical Parameter:
Capacity | 0.5/1/2/5/10/15/20t | ||
Rated Output | 2.0mV/V ±0.1% | Safe Temp. Range | -10ºC to + 70ºC |
Zero Balance | ±1% of FS | Temp. Compensated | -10ºC to + 40ºC |
Creep after 30 minutes | ±0.02% of FS | Safe Overload | 1.5 |
Nonlinearity | ±0.02% of FS | Input Impedance | 380ohm ± 10ohm |
Hysteresis | ±0.02% of FS | Output Impedance | 350ohm ± 5ohm |
Repeatability | ±0.02% of FS | Insulation Resistance | ≥5000 M ohm (50V DC) |
Temp. effect on output | ≤0.002% of FS/ºC | Rated Excitation | 10V DC/AC |
Temp. effect on zero | ≤0.002% of FS/ºC | Maximum Excitation | 15V DC/AC |
Wire Length | 1m | Material | Alloy/stainless steel |
| Product name | LC2006 Miniature In-Line Load Cell Alloy Steel S Type Load Cell 50kg-20T |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
