LC2002
SAINTBOND
Product Description::

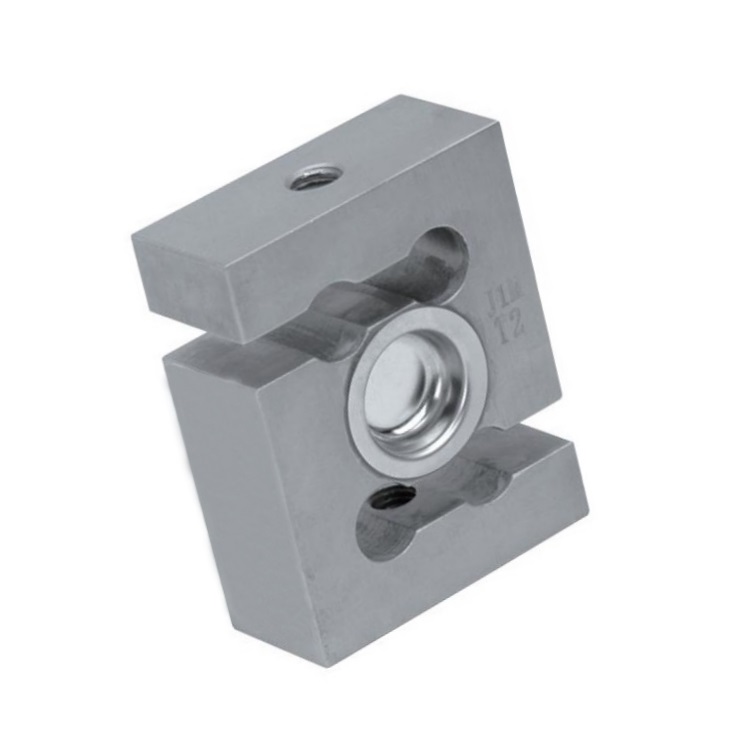

◎S-Type load cell
◎Explosion-proof Certified
◎Stainless steel construction
◎Hermetically sealed (except for 100kg)
◎Easy to install, stable & reliable Suitable for tension measurement, batching systems, blending & mixing systems, belt scales,etc.
Dimension:
Cap. | A | B | C | D | E | F | M |
(kg) | mm | ||||||
100kg | 62.2 | 32 | 30.1 | 80.2 | 20.1 | 47.2 | M10×1.5 |
200~1000kg | 62.2 | 32 | 30.1 | 80.2 | 20.1 | 47.2 | M12×1.75 |
Technical Parameter:
Rated Output | 2.0mV/V ±0.1% | Safe Temp. Range | -10ºC to + 70ºC |
Zero Balance | ±1% of FS | Temp. Compensated | -10ºC to + 40ºC |
Creep after 30 minutes | ±0.03% of FS | Safe Overload | 1.5 |
Nonlinearity | ±0.03% of FS | Input Impedance | 387 ohm ± 20 ohm |
Hysteresis | ±0.03% of FS | Output Impedance | 350 ohm ± 5 ohm |
Repeatability | ±0.03% of FS | Insulation Resistance | ≥5000 M ohm (50V DC) |
Temp. effect on output | ≤0.002% of FS/ºC | Rated Excitation | 10V DC/AC |
Temp. effect on zero | ≤0.002% of FS/ºC | Maximum Excitation | 15V DC/AC |
Wire Length | 6m | Material | Alloy/stainless steel |
| Product name | LC2002 500kg S Type Alloy Steel Weighting Sensor Beam Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
