LC2001
SAINTBOND
Product Description::
Model LC2001 is a tension-compression load cell with a humidity-resistant coating and shielded cables, which enable use in harsh environments while maintaining operating specifications. Additional sense wires compensate for changes in lead resistance due to temperature change and/or cable extension.Ideally suited for lever conversions, hanging scales, force measurement and a wide range of other industrial applications. Nickel-plated for outstanding corrosion resistance.
Application:
lTank, bin and hopper weighing;
lLevel and inventory monitoring;
lTruck scale conversions;
lTension and compression measurements ;

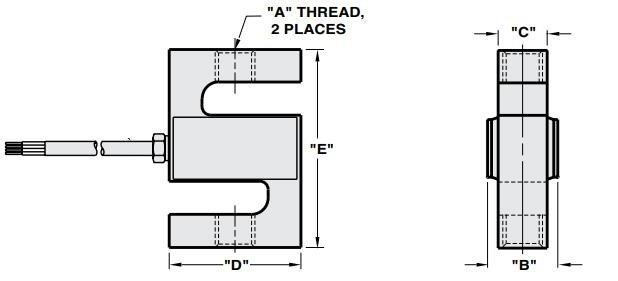

Dimension:
Capacity | A | B | C | D | E | Deflection | Weight |
25-200lb | 1/4-28 UNF-2B | 0.65 | 0.50 | 2.00 | 2.50 | 0.015-0.010 | 4.0 |
250-300lb | 3/8-24 UNF-2B | 0.75 | 0.50 | 2.00 | 3.00 | 0.01 | 4.0 |
500-2klb | 1/2-20 UNF-2B | 1.00 | 0.75 | 2.00 | 3.00 | 0.010-0.012 | 6.5 |
2.5k-4klb | 1/2-20 UNF-2B | 1.25 | 1.00 | 2.00 | 3.00 | 0.012 | 6.5 |
5klb | 3/4-16 UNF-2B | 1.25 | 1.00 | 3.00 | 4.25 | 0.017 | 6.5 |
10klb | 3/4-16 UNF-2B | 1.25 | 1.00 | 3.50 | 4.75 | 0.025 | 6.5 |
15klb | 1-14 UNF-2B | 1.50 | 1.25 | 4.00 | 5.50 | 0.025 | 9.0 |
20klb | 1-1/4-12 UNF-2-B | 2.25 | 2.00 | 5.00 | 7.00 | 0.025 | 9.0 |
50-100kg | M8.0×1.25-6H | [16.5] | [12.7] | [50.8] | [63.5] | [0.03-0.004] | [0.8] |
250kg-1t | M12×1.75-6H | [25.4] | [19.1] | [50.8] | [76.01] | [0.004] | [1.8] |
2.5t | M20×1.5-6H | [31.8] | [25.4] | [76.2] | [108.0] | [0.008] | [2.9] |
5t | M20 × 1.5-6H | [31.8] | [25.4] | [88.9] | [120.7] | [0.011] | [2.9] |
10t | M30×2.0-6H | 157.2] | [50.8] | [127.0] | [177.8] | [0.011] | [4.0] |
Capacities are in pounds[kg/T].Deflection is ±10%.Certified drawings are available. | |||||||
Technical Parameter:
Capacity: | 50/100/250/500/1000/2500/5000/7500/10000kg 50/75/100/150/200/250/300/500/750lb+1/1.5/2/3/5/10/15/20klb | ||
Rated Output | 2.0mV/V ±0.1% | Safe Temp. Range | -10ºC to + 70ºC |
Zero Balance | ±1% of FS | Temp. Compensated | -10ºC to + 40ºC |
Creep after 30 minutes | ±0.03% of FS | Safe Overload | 1.5 |
Nonlinearity | ±0.03% of FS | Input Impedance | 350 ohm ± 20 ohm |
Hysteresis | ±0.03% of FS | Output Impedance | 350 ohm ± 5 ohm |
Repeatability | ±0.03% of FS | Insulation Resistance | ≥5000 M ohm (50V DC) |
Temp. effect on output | ≤0.002% of FS/ºC | Rated Excitation | 10V DC/AC |
Temp. effect on zero | ≤0.002% of FS/ºC | Maximum Excitation | 15V DC/AC |
Wire Length | 6m | Material | Alloy/stainless steel |
| Product name | LC2001 Universal 50kN S-type Load Cell Weighing Sensor for Scales |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
