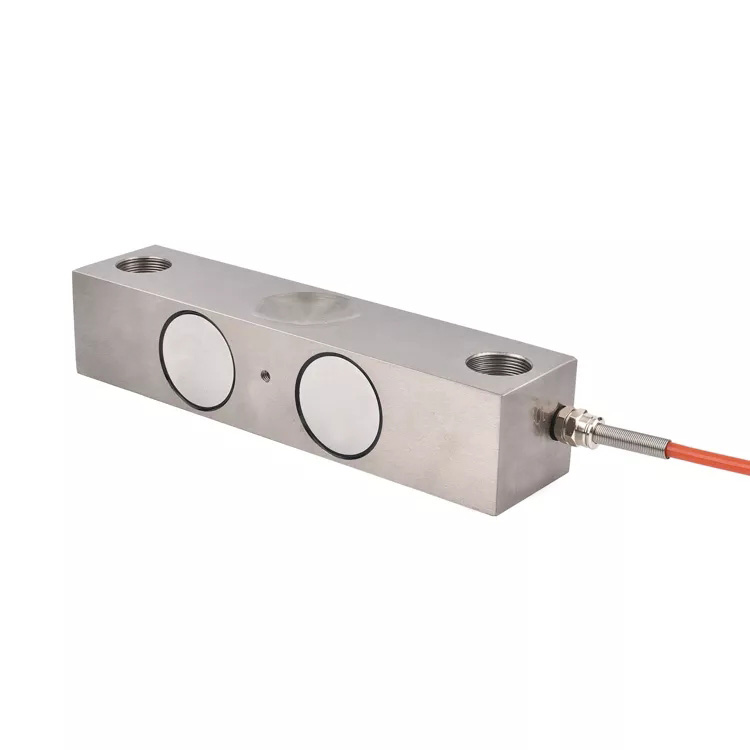

LC116 Load Cell Traction And Compression 30t Double Ended Shear Beam Alloy Steel Load Cell

Availability:
Quantity:
  • LC116
  • SAINTBOND

Load Cell

LC116-2

Dimensions:

LC116



Cap.

L

L1

L2

H

H1

W

A

B

10~40t

240

200

20

52

64

56

26

96.5



Technical Parameter:

Rated Load:

200~250kN

Operating Temp. Range:

-30~+70℃

Sensitivity:

(2.0±0.1%) mV/V

Max. Safe Over Load:

150,120 (40~50t)%F.S

Combined Error:

±0.02% F.S

Ultimate Over Load:

300,200(40~50t)%F.S

Creep Error(30min):

±0.01% F.S

Recommend Excitation:

10~12V DC

Zero Balance:

±1% F.S

Maximum Excitation:

15V DC

Tco:

±0.02% F.S/10℃

Sealing Class:

IP67/IP68

Tc Span:

±0.02% F.S/10℃

Element Material:

Alloy/Stainless Steel

Input Resistance:

750±5Ω

Citation:

GB/T7551-2008/ OIML R60

Insulation Resistance:

≥5000MΩ

Cable:

Length=13m

Output Resistance:

703±2Ω,703±5 Ω(L≥15m)

Mode Of Connection:

Red(Input+),Black(Input-),Green(Output+),White(Output-)


圣邦网站1详情页_05

Product name LC116 Load Cell Traction And Compression 30t Double Ended Shear Beam Alloy Steel Load Cell
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
