LC104W
SAINTBOND

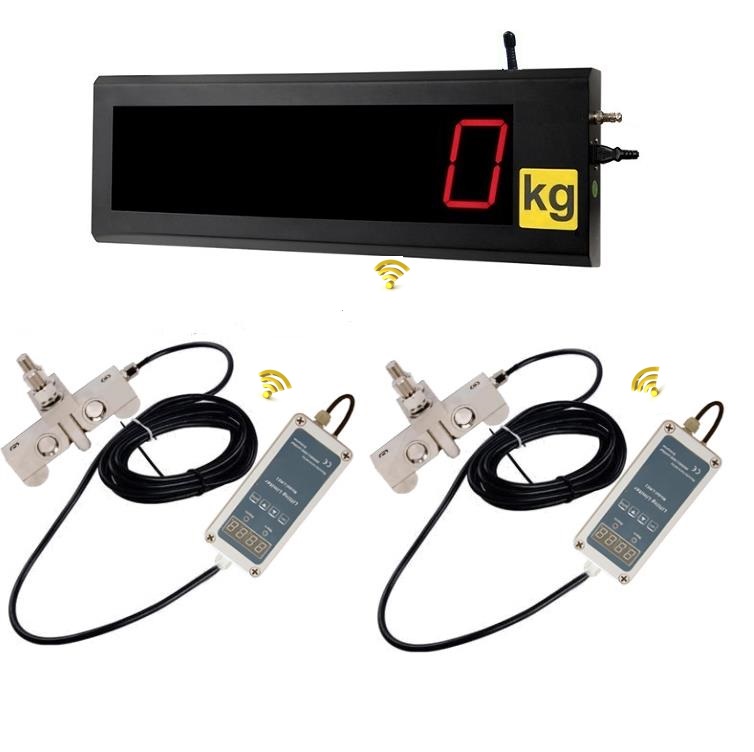

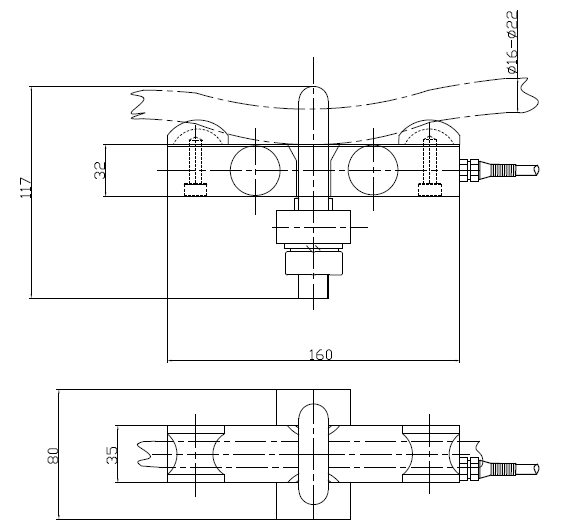

Dimension: in mm
Steel Wire Tension | Steel Wire Diameter | L | H | B | b |
1t | Ф6-14 | 180 | 100 | 60 | 35 |
2t | Ф10-18 | 180 | 100 | 60 | 35 |
3t | Ф14-22 | 180 | 100 | 60 | 35 |
5t | Ф16-26 | 200 | 105 | 75 | 40 |
10t | Ф24-36 | 260 | 115 | 110 | 60 |
Products specification:
This mechanical load cell has been designed to provide a trip point for lifting systems which have a dead end wire rope. The trip point provides a signal that the user may employ depending on his requirements, e.g.
◎For load limiting in lifting systems
◎To limit the speed as a function of the load on traversing
◎To limit the effort applied for pulling
This universal load cell is recommended for its simplicity and quick lifting capability.
Loa Cell Technical Parameter:
Wire Rope Size: | 10~40mm | Operating Temperature Range: | -30~+70℃ |
Sensitivity: | (1.0±0.1%) mV/V | Maximum Safe Over Load: | 150%F.S |
Combined Error: | ±0.1% F.S | Ultimate Over Load: | 300%F.S |
Creep Error(30min): | ±0.02% F.S | Recommend Excitation Vol.: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation Voltage: | 15V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67 |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | Alloy Steel, Stainless Steel |
Input Resistance: | 385±5Ω | Cable: | Length=1m |
Output Resistance: | 352±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), Black(Input-),White(Output-) |
Technical Parameter：
Wireless Frequency: | 430~485MHz |
Wireless Distance: | Min:800m(In Open Area) |
A/D Conversion Rate: | ≥50times/seconds |
Operating Temp. Range: | -20～+80℃ |
Operating Humidity: | ≤85%RH under 20℃ |
Battery Life: | ≥50 hours |
Non-Linearity: | 0.01%F.S |
Stable Time: | ≤5 Seconds |
Citation: | GB/T7551-2008/ OIML R60 |

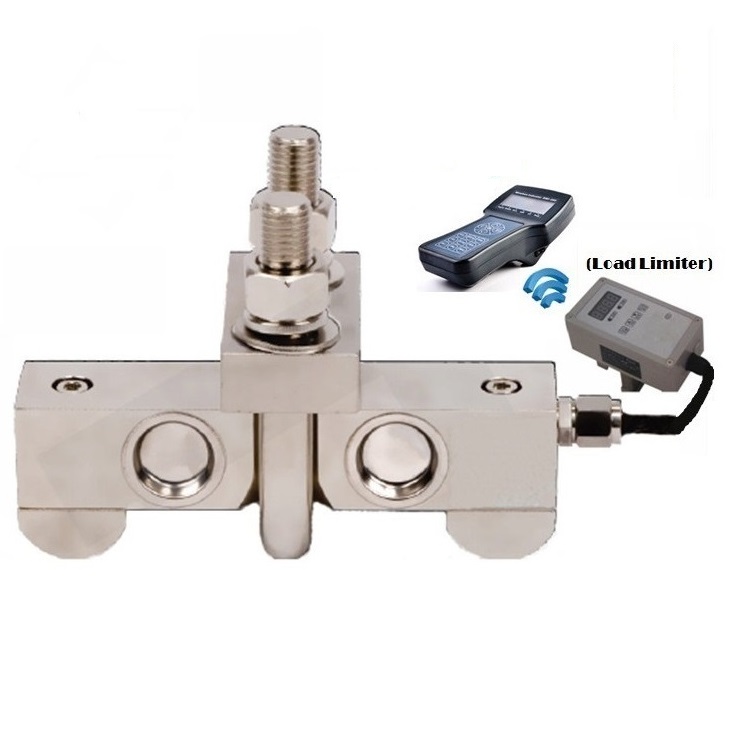

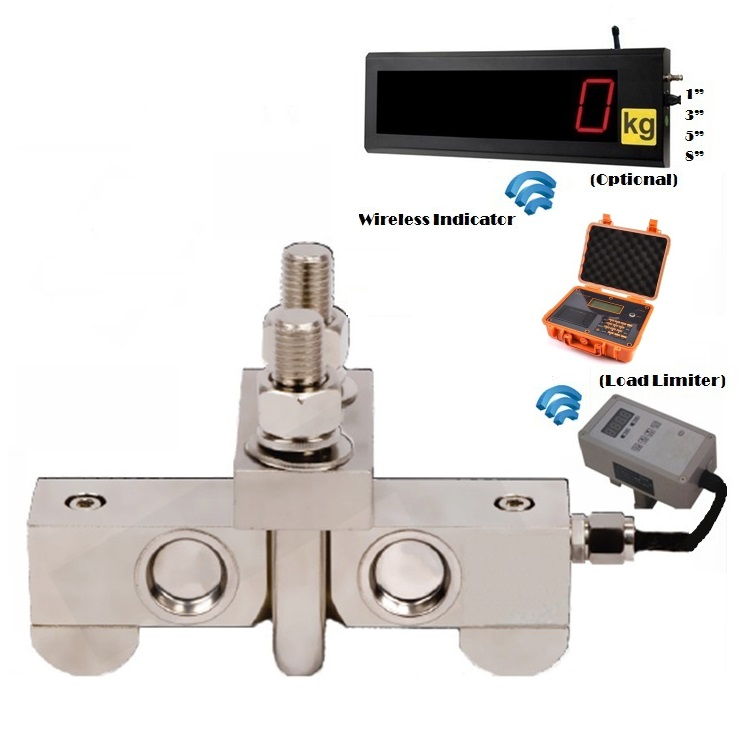

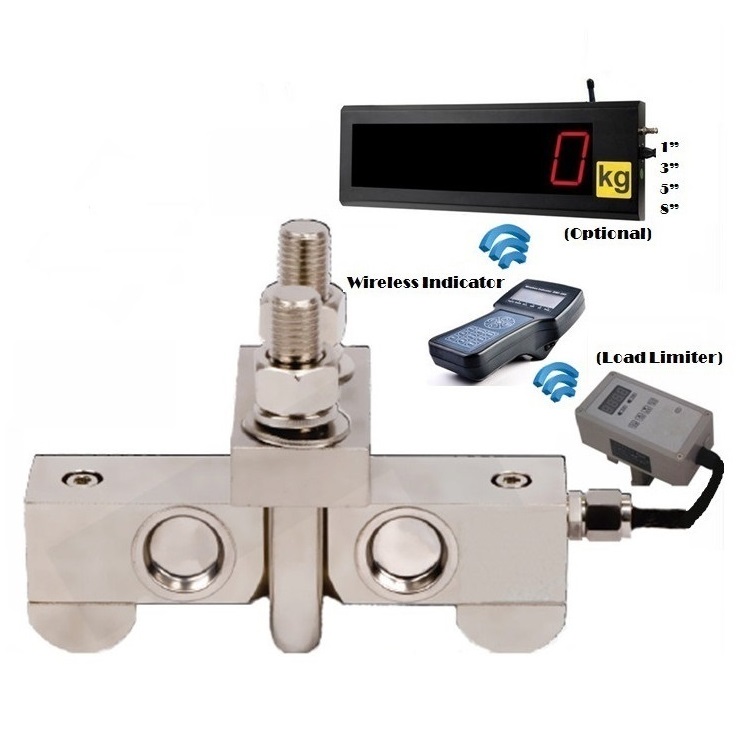

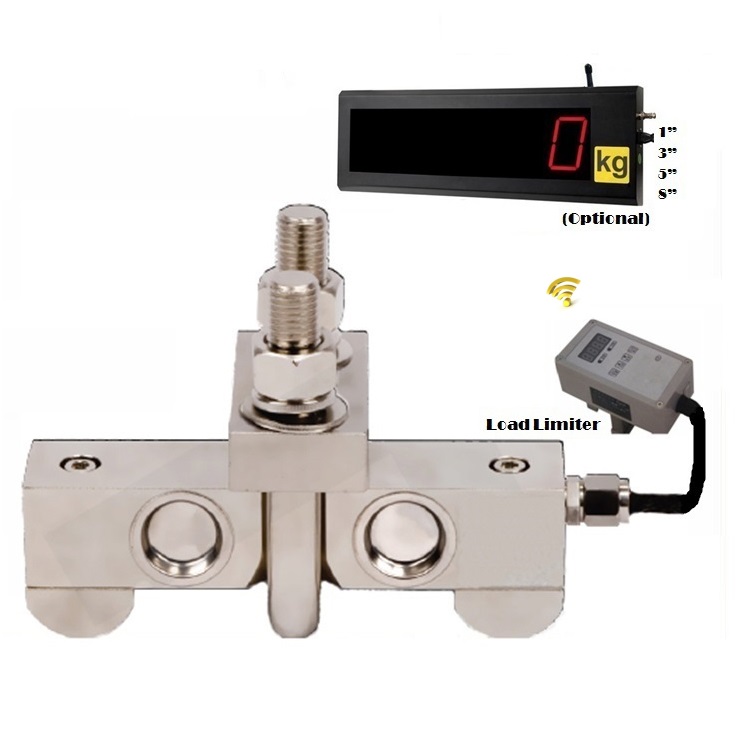

| Product name | LC104W 3 Wire 6 Wire Load Cell Sensor 50kg Steel Wire Rope Tension Load Cell Sensor |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
