LC104D
SAINTBOND
Dimension: in mm
Products specification:
Suitable for tension measurement of various optical fibers, yarns, chemical fibers, metal wires, wires, cables, adhesive tapes, steel belts. It is widely used in the fields of electronics, chemical industry, textile, paper making, machinery, etc. It has high measurement accuracy, reliability and stability in the field of tension measurement. The sensor has a built-in overload protection mechanism, and each sensor is rigorously tested before leaving the factory, thus ensuring the measurement accuracy, stability and reliability of the product. It is the choice for high-performance tension control applications in continuous material processing and production;
Technical Parameter:
Wire Rope Size: | 100/200/300/500/1000kg | ||
Sensitivity: | (1.0±0.1%) mV/V | Operating Temp. Range: | -30~+70℃ |
Combined Error: | ±0.1% F.S | Maximum Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Max. Excitation Voltage: | 15V DC |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67 |
Input Resistance: | 385±5Ω | Element Material: | Alloy Steel, Stainless Steel |
Output Resistance: | 352±2Ω | Cable: | Length=1m |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |

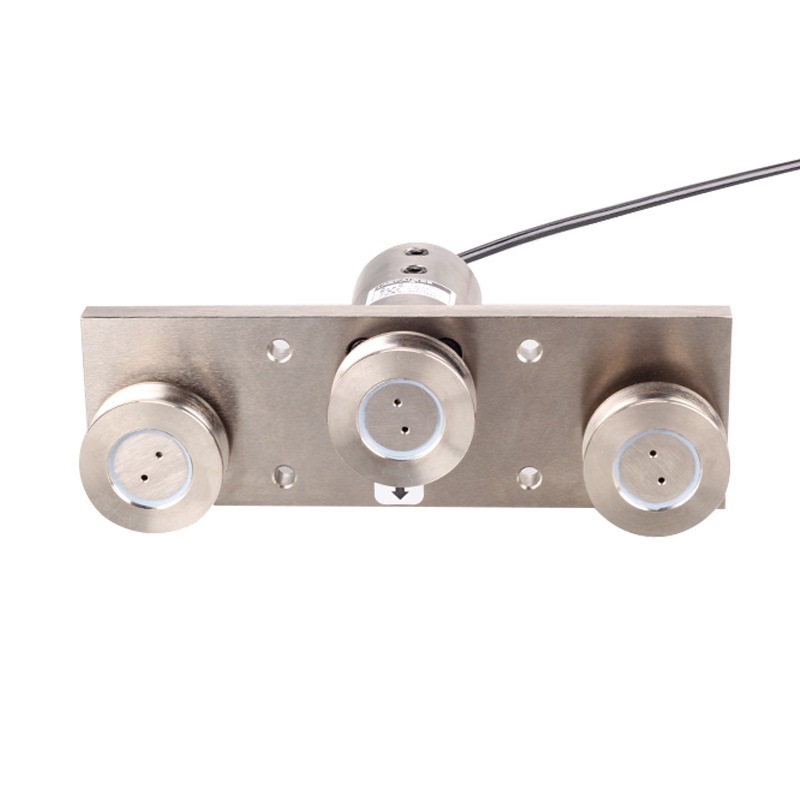

| Product name | LC104D China Elevator Wire Rope Yarn Wire Tension Sensor Three Pulley Tension Sensor |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
