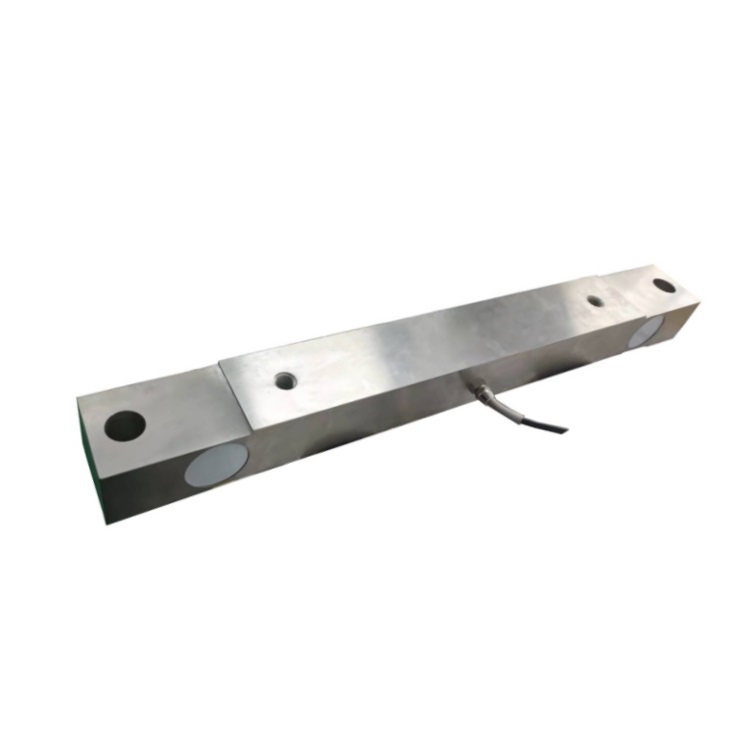

LC1002 Load Cell Small Tension Compression Testing Machine 1000kg Loadcell Weighing Sensor

Sensitivity:

(2.0±0.1%) mV/V

Operating Temp. Range:

-30~+70℃

Combined Error:

±0.02% F.S

Max. Safe Over Load:

150%F.S

Creep Error(30min):

±0.02% F.S

Ultimate Over Load:

300%F.S

Zero Balance:

±1% F.S

Recommend Excitation Vol.:

10~12V DC

Tco:

±0.02% F.S/10℃

Max. Excitation Voltage:

15V DC

Tc Span:

±0.02% F.S/10℃

Sealing Class:

IP67/IP68

Input Resistance:

380±30Ω

Element Material:

Alloy Steel, Stainless Steel

Output Resistance:

350±2Ω

Cable:

Length=L:12m

Insulation Resistance:

≥5000MΩ

Citation:

GB/T7551-2008/ OIML R60
