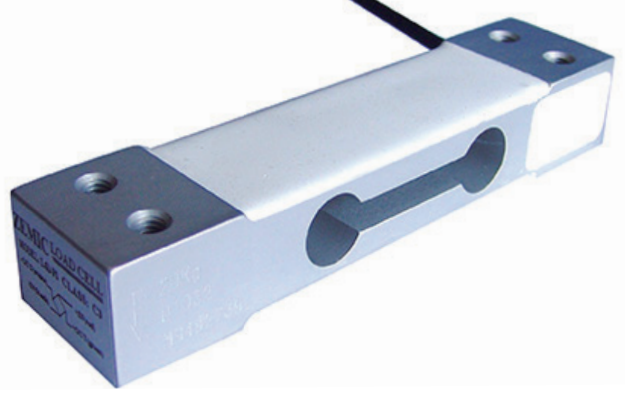

L6d-FS
SAINTBOND
Short Description:
◎Aluminum-alloy IP65 single point load cell；
◎Colourless anodized. High waterproof ability；
◎Suitable for pricing scales, bench scales, etc；
◎Maximum platform size:250*350mm；

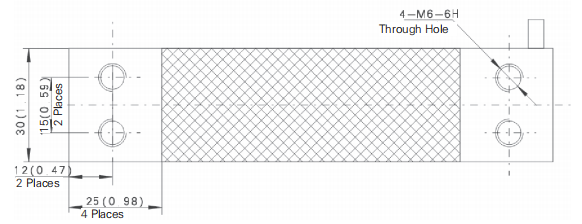

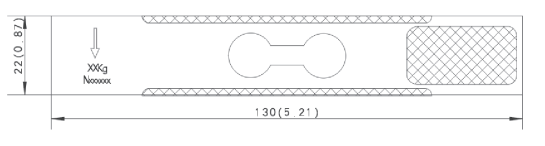

Dimensions in mm：
Available models：
Capacity | Accuracy | Full article description |
3kg-50kg | C3 | L6D-C3-xxkg-0.45B-FS |
Specification：
Maximum capacity(Emax) | kg | 3/5/6/8/10/15/20/25/30/35/40/50 |
Output sensitivity(= FS) | mV/V | 2.0+0.2 |
Accuracy class | C3 | |
Combined error | %FS | ±0.02 |
Creep | %FS/30min | ±0.0167 |
Temperature effect on sensitivity | %FS/10℃ | ±0.0175 |
Temperature effect on zero | %FS/10℃ | ±0.02 |
Zero balance | %FS | ±2 |
Compensated temperature | ℃ | -10~+40 |
Operating temperature | ℃ | -35~+65 |
Input resistance | Ω | 406±6 |
Output resistance | Ω | 350±3 |
Insulation resistance | MΩ | ≥ 5000(50VDC) |
Excitation, recommended voltage | V | 5-12(DC) |
Excitation maximum | V | 18(DC) |
Safe overload | of Emax | 120% |
Ultimate overload | of Emax | 150% |
ngressprotection (according to EN 60529) | IP65 | |
Recommended installation size | mm | 250×350 |
Comer correction | 0.02%load value/100mm | |
Recommended torque on fixation | N.m | 6 |
Wiring：
◎Shielded, 4 conductor cable；
◎Cable diameter: Φ3.8mm；
◎Standard cable length: 0.45m；
◎Shield not connected to element；
◎Cable jacket in PVC；
