L6N
SAINTBOND
Short Description:

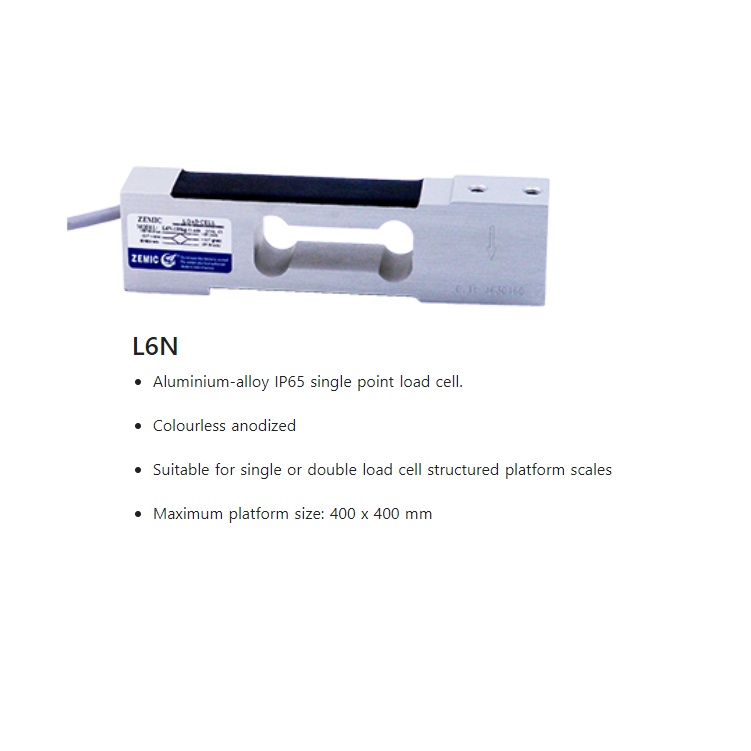

◎Aluminium-Alloy IP65 single point load cell；
◎Colourless anodized；
◎Suitable for single or double load cell structured platform scales；
◎Recommended platform size: 400 x 400 mm；
Dimensions in mm：
D | Metric | Imperial |
M6×1 | 1/4-20UNC-2B |
Available models：
Capacity | Accuracy | Full article description |
3kg-300kg | Cx | L6N-Cx-xxkg-3B6/3YB6 |
Specification：
Maximum capacity ( Emax ) | kg | 3/5/8/10/15/20/30/40/50/75/100 | ||
Output sensitivity(= FS) | mV/V | 2.0±0.2 | ||
Accuracy class | C3 | C4 | C5 | |
Combined error | %FS | ±0.02 | ±0.015 | ±0.01 |
Creep | %FS/30min | ±0.0167 | ±0.0125 | ±0.01 |
Temperature effect on sensitivity | %FS/10℃ | ±0.0175 | ±0.0131 | ±0.01 |
Temperature effect on zero | %FS/10℃ | ±0.02 | ±0.012 | ±0.009 |
Zero balance | %FS | ±2 | ||
Compensated temperature | ℃ | -10~+40 | ||
Operating temperature | ℃ | -35~+65 | ||
Input resistance | Ω | 406±6 | ||
Output resistance | Ω | 350±3 | ||
Insulation resistance | M Ω | ≥ 5000(50VDC) | ||
Excitation,recommended voltage | V | 5~12(DC) | ||
Excitation maximum | V | 18(DC) | ||
Safe overload | %FS | 120 | ||
Ultimate overload | %FS | 150 | ||
Protection Class | IP65 | |||
Recommended installation size | m m | 400×400 | ||
Corner correction | 0.02%load value/100mm | |||
Recommended torque on fixation | N.m | 10 | ||
Wiring：
◎Shielded, 6 conductor cable；
◎Cable Diameter: Φ4.8mm；
◎Standard cable length: 3m；
◎Shield not connected to element；
◎Cable jacket is PVC；
