SAINTBOND
Short Description:

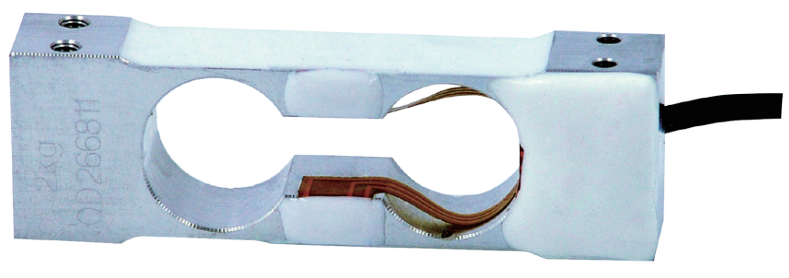

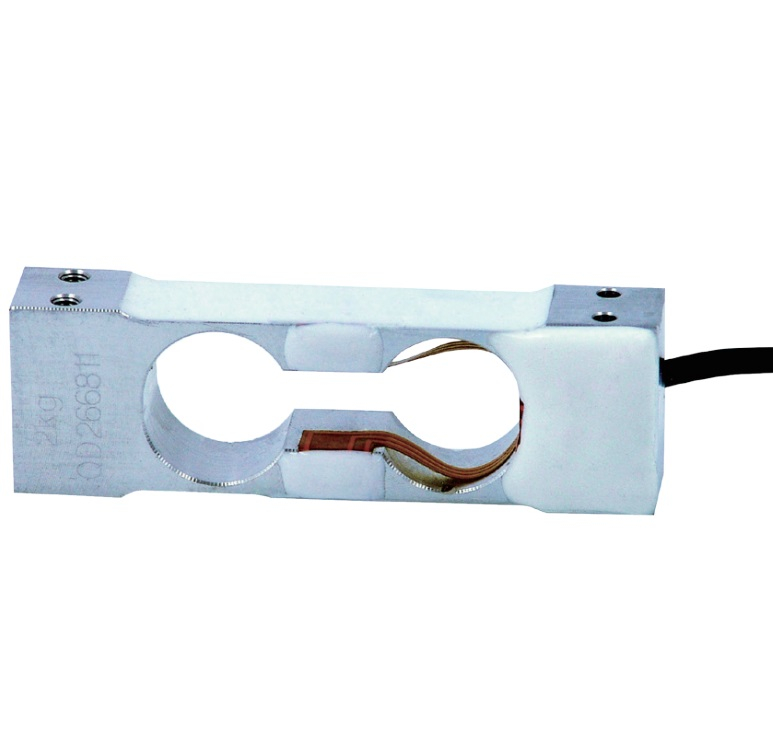

◎Aluminium-Alloy IP65 single point load cell；
◎Colourless anodized；
◎Suitable for counting scales, balances, pricing scales, etc；
◎Recommended platform size: 200 x 200 mm；

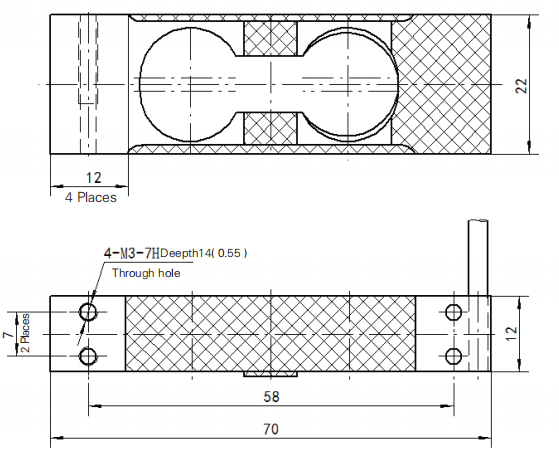

Dimensions in mm：
Available models：
Capacity | Accuracy | Full article description |
0.3kg | C3D | L6J1-C3D-0.3kg-0.45B |
0.4kg | C3D | L6J1-C3D-0.4kg-0.45B |
0.5kg | C3D | L6J1-C3D-0.5kg-0.45B |
0.6kg | C3D | L6J1-C3D-0.6kg-0.45B |
1kg | C3D | L6J1-C3D-1kg-0.45B |
3kg | C3D | L6J1-C3D-3kg-0.45B |
Specification：
Accuracy class | C3D | |
Output sensitivity(= FS) | mVN | 1.0 ±0.1 |
Maximum capacity (Emax) | kg | 0.3,0.4,0.5,0.6,1,3 |
Maximum number of load cell intervals (nLC) | 2500 | |
Ratio of minimum LC verification interval Y = Emax / Vmin | 5000 | |
Combined error | %FS | ± 0.0280 |
Minimum dead load | of Emax | 0% |
Safe overload | of Emax | 120% |
Ultimate overload | of Emax | 150% |
Zero balance | %FS | ±2.0 |
Excitation, recommended voltage | V | 5~12(DC) |
Excitation maximum | V | 18(DC) |
Input resistance | Ω | 406±6 |
Output resistance | Ω | 350 ±3 |
Insulation resistance | MΩ | ≥ 5000(50VDC) |
Compensated temperature | ℃ | -10~+40 |
Operating temperature | ℃ | -35~+65 |
Storage temperature | ℃ | -40~+70 |
Element material | Aluminium | |
Recommended torque on fixation | N.m | M3:1.5 |
lngress protection (according to EN 60529) | IP65 |
Wiring：
◎Shielded, 4 conductor cable；
◎Cable Diameter: Φ3mm；
◎Standard cable length: 0.45m；
◎Shield not connected to element；
◎Cable jacket is PVC；
