L6H5
SAINTBOND
Short Description:

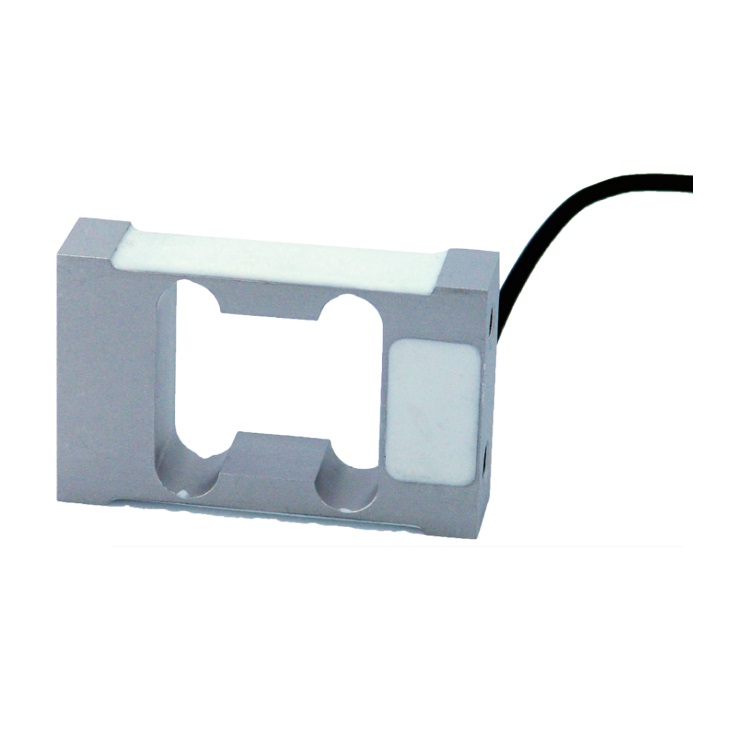

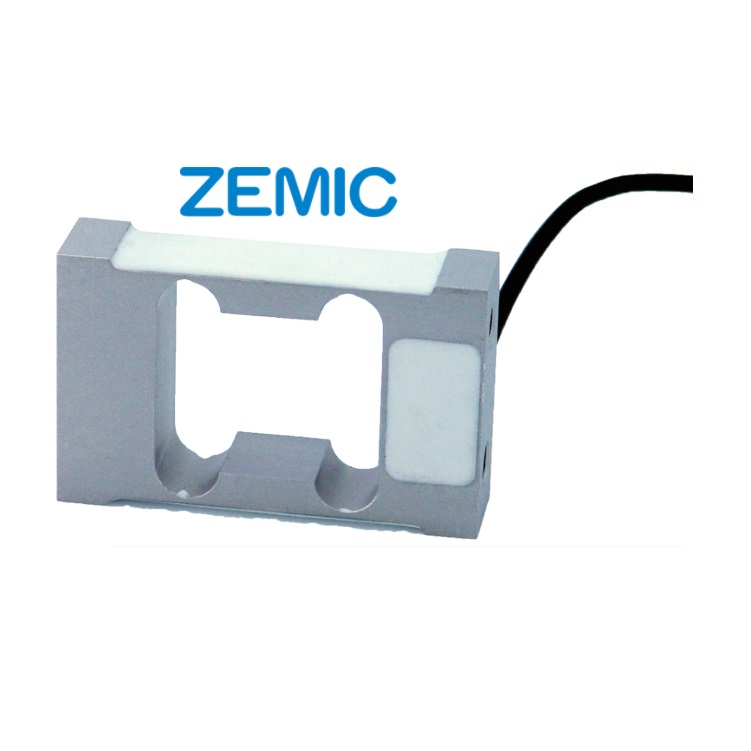

◎Aluminium-Alloy IP65 single point load cell；
◎Colourless anodized；
◎Suitable for single or double load cell structured platform scales；
◎Recommended platform size: 200 x 200 mm；
Dimensions in mm：
Available models：
Capacity | Accuracy | Full article description |
4kg | C3 | L6H5-C3-4kg-0.5B |
5kg | C3 | L6H5-C3-5kg-0.5B |
6kg | C3 | L6H5-C3-6kg-0.5B |
8kg | C3 | L6H5-C3-8kg-0.5B |
10kg | C3 | L6H5-C3-10kg-0.5B |
20kg | C3 | L6H5-C3-20kg-0.5B |
30kg | C3 | L6H5-C3-30kg-0.5B |
Specification：
Accuracy class | OIML R6O C3 | |
Output sensitivity(= FS) | mV/V | 2.0 ±0.2 |
Maximum capacity (Emax) | kg | 4, 5, 6, 8, 10, 15, 20, 30 |
Maximum number of load cell intervals (nLC) | 3000 | |
Ratio of minimum LC verification interval Y = Emax / Vmin | 15000 | |
Combined error | %FS | ± 0.02 |
Minimum dead load | of Emax | 0% |
Safe overload | of Emax | 120% |
Ultimate overload | of Emax | 150% |
Zero balance | %FS | ±2.0% |
Excitation, recommended voltage | V | 5~12(DC) |
Excitation maximum | V | 18(DC) |
Input resistance | Ω | 406±6 |
Output resistance | Ω | 350 ±3 |
Insulation resistance | MΩ | ≥ 5000(50VDC) |
Compensated temperature | ℃ | -10~+40 |
Operating temperature | ℃ | -35~+65 |
Storage temperature | ℃ | -40~+70 |
Element material | Aluminium | |
Recommended torque on fixation | N.m | M8:25 |
lngress protection (according to EN 60529) | IP65 |
Wiring：
◎Shielded, 4 conductor cable；
◎Cable diameter: Φ3.8mm；
◎Standard cable length: 0.5m；
◎Shield not connected to element；
◎Cable jacket in PVC；
