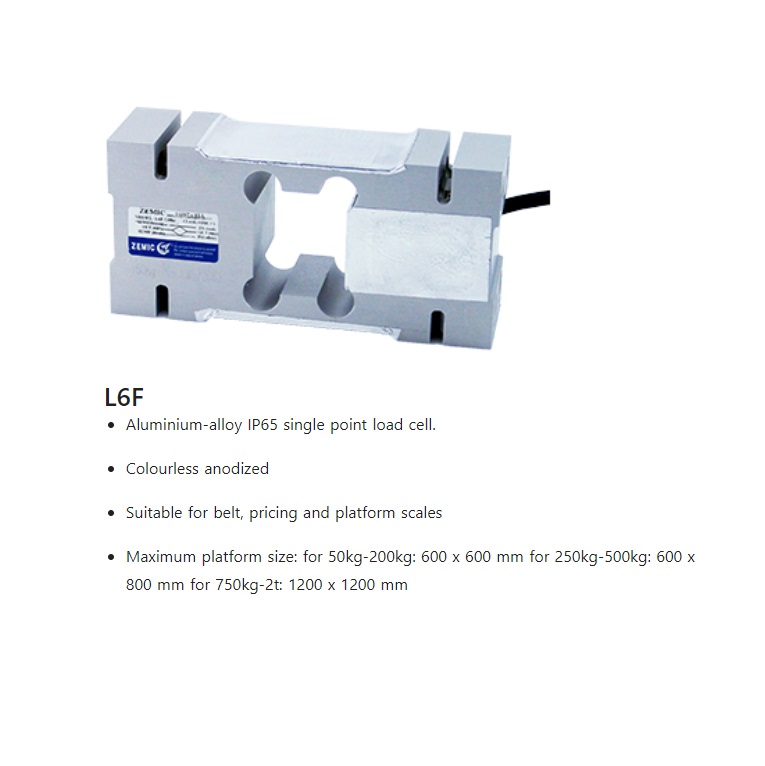

L6F
SAINTBOND
Short Description:
◎Aluminium-alloy IP65 single point load cell；
◎Colourless anodized；
◎Suitable for belt, pricing and platform scales；
◎Maximum platform size:
for 50kg-200kg: 600 x 600 mm； for 250kg-500kg: 600 x 800 mm； for 750kg-2t: 1200 x 1200 mm；
Dimensions in mm：
Dimension Capacity | H | H1 | L | W | W1 | M |
50-200kg, 250kgSE | 75 | 50 | 156 | 44 | 24 | M12Depth20 |
250-500kg,250kgSE | 95 | 70 | 146 | 60 | 36 | M12Depth18 |
750-2000kg | 125 | 95 | 176 | 76 | 46 | M16Depth20 |
Available models：
Capacity | Accuracy | Full article description | Capacity | Accuracy | Full article description |
50kg | C3 | L6F-C3-50kg-3B6 | 250 kg | C3 | L6F-C3-250kg-3B6 |
100 kg | C3 | L6F-C3-100kg-3B6 | 500kg | C3 | L6F-C3-500kg-3B6 |
150kg | C3 | L6F-C3-150kg-3B6 | 750kg | C3 | L6F-C3-750kg-3B6 |
200kg | C3 | L6F-C3-200kg-3B6 | 1000kg | C3 | L6F-C3-1000kg-3B6 |
2000kg | C3 | L6F-C3-2000kg-3B6 |
Specification：
Accuracy class | OIML R60 C3 | |
Output sensitivity(= FS) | mV/V | 2.0 ± 0.2 |
Maximum capacity ( Emax) | kg | 50,100, 150, 200, 250, 500, 750, 1000, 2000 |
Maximum number of load cell intervals (nLC) | 3000 | |
Ratio of minimum LC verification interval Y = Emax / Vmin | 7000 | |
Combined error | %FS | ± 0.02 |
Minimum dead load | kg | 0% |
Safe overload | of Emax | 120% |
Ultimate overload | of Emax | 150% |
Zero balance | %FS | ±2.0 |
Excitation, recommended voltage | V | 5~12(DC) |
Excitation maximum | V | 18(DC) |
Input resistance | Ω | 406±6 |
Output resistance | Ω | 350±3 |
Insulation resistance | MΩ | ≥ 5000(50VDC) |
Compensated temperature | ℃ | -10~+40 |
Operating temperature | ℃ | -35~+65 |
Storage temperature | -40~+70 | |
Element material | ? | Aluminium |
Recommended torque on fixation | N.m | M12:100 M16:160 |
lngress protection (according to EN 60529) | IP65 |
Wiring：
◎Shielded, 6 conductor cable；
◎Cable diameter: Φ6.2mm；
◎Standard cable length: 3m；
◎Shield not connected to element；
◎Cable jacket in PVC；
