L6E
SAINTBOND

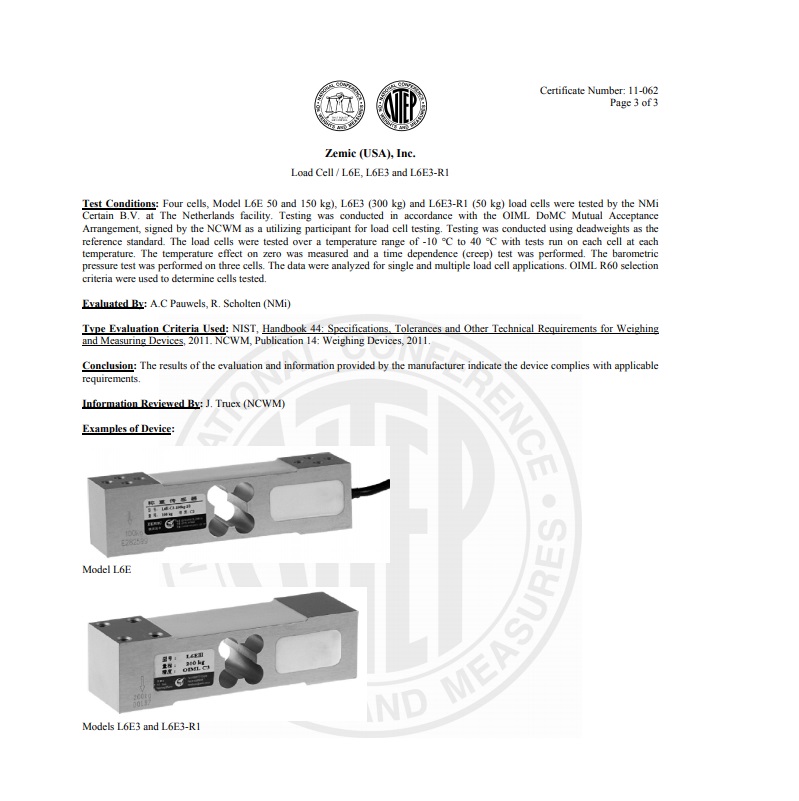

Short Description:
◎Aluminium-Alloy IP65 single point load cell；
◎Colourless anodized；
◎Suitable for pricing scales, bench scales, etc；
◎Maximum platform size: 400 x 400mm；
Available models：
Capacity | Accuracy | Full article description |
50kg | C3/C4/C5 | L6E-C3/C4/C5-50kg-2B |
60kg | C3/C4/C5 | L6E-C3/C4/C5-60kg-2B |
80kg | C3/C4/C5 | L6E-C3/C4/C5-80kg-2B |
100kg | C3/C4/C5 | L6E-C3/C4/C5-100kg-2B |
150kg | C3/C4/C5 | L6E-C3/C4/C5-150kg-2B |
200kg | C3/C4/C5 | L6E-C3/C4/C5-200kg-2B |
300kg | C3/C4/C5 | L6E-C3/C4/C5-300kg-2B |
Specification：
Accuracy class | OIML R6O C3 | OIML R60 C4 | OIML R60 C5 | ||||
Output sensitivity(= FS) | mV/V | 2.0 ±0.2 | |||||
Maximum capacity ( Emax) | kg | 50,60,80,100 | 150,200,300 | 50,60,80,100 | 150,200,300 | 50,60,80,100 | 150,200,300 |
Maximum number of load cell intervals (nLC) | 3000 | 4000 | 5000 | ||||
Ratio of minimum LC verification interval Y = Emax / Vmin | 10000 | 15000 | 20000 | ||||
Combined error() | %FS | ±0.02 | ±0.015 | ±0.01 | |||
Minimum dead load | of Emax | 0% | |||||
Safe overload | of Emax | 120% | |||||
Utimate overload | of Emax | 150% | |||||
Zero balance | %FS | <±2.0 | |||||
Excitation, recommended voltage | V | 5~12(DC) | |||||
Excitation maximum | V | 18 | |||||
Input resistance | Ω | 406±6 | |||||
Output resistance | Ω | 350±3 | |||||
Insulation resistance | MΩ | ≥ 5000 (50VDC) | |||||
Compensated temperature | ℃ | -10~+40 | |||||
Operating temperature | ℃ | -35~+65 | |||||
Storage temperature | ℃ | -40~+70 | |||||
Element material | Aluminium | ||||||
Recommended torque on fixation | N.m | M6:10 | |||||
lngress protection (according to EN 60529) | IP65 | ||||||
Dimensions in mm：
Wiring：
◎Shielded, 4 conductor cable；
◎Cable diameter: Φ5.3mm；
◎Standard cable length: 2m；
◎Shield not connected to element；
◎Cable jacket in PVC；
