L6D16
SAINTBOND
Short Description:

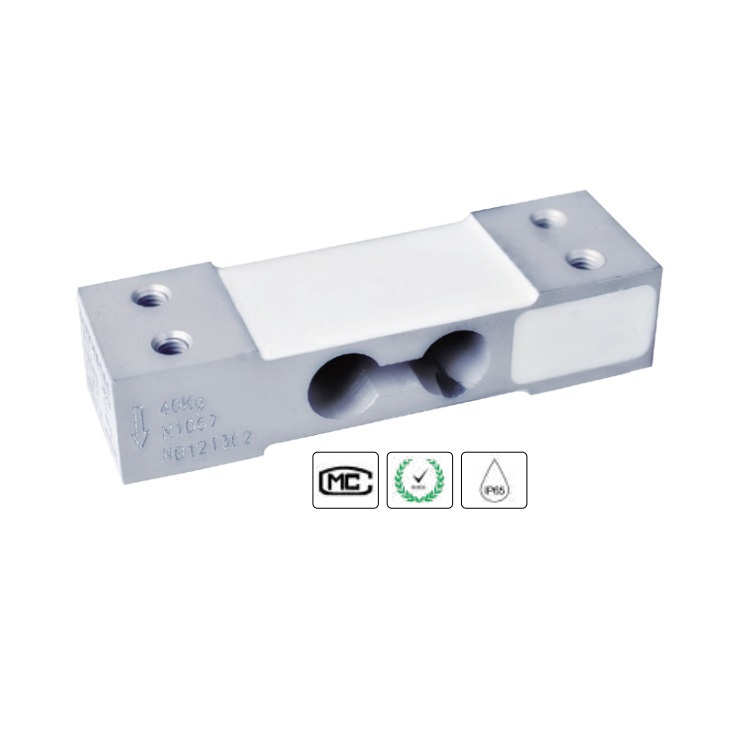

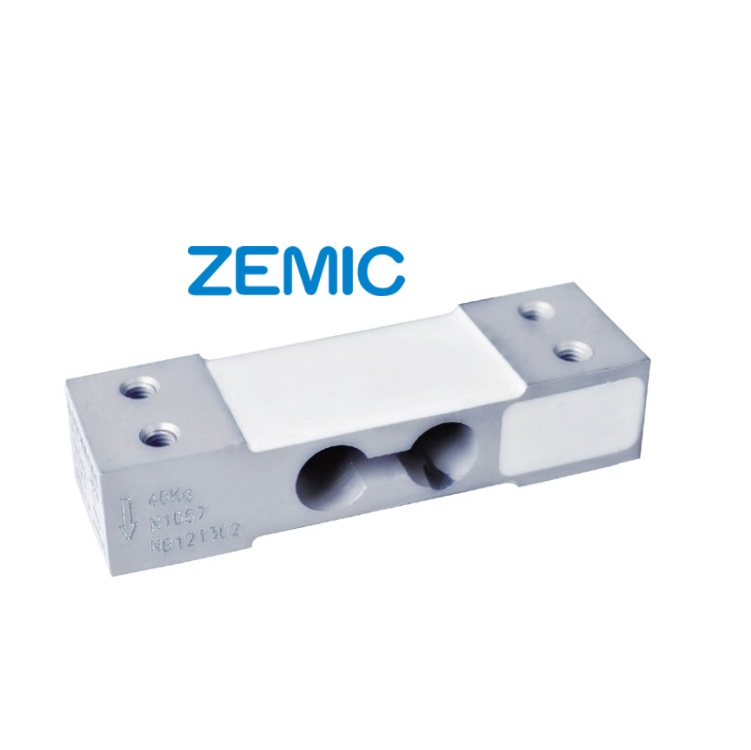

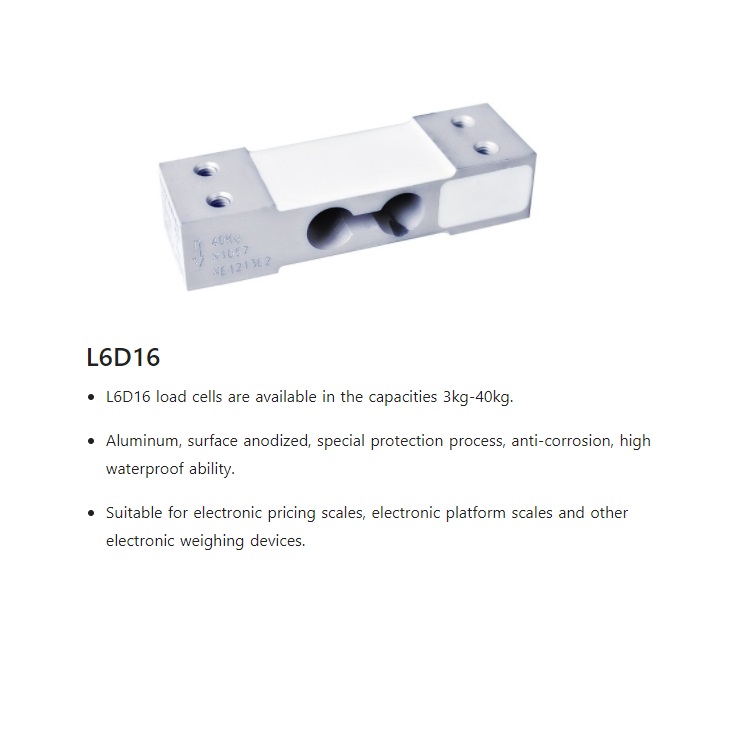

◎L6D16 load cells are available in the capacities 3kg-40kg；
◎Aluminum, surface anodized, special protection process, anti-corrosion, high waterproof ability；
◎Suitable for electronic pricing scales, electronic platform scales and other electronic weighing devices；
Dimensions in mm：
Available models：
Capacity | Accuracy | Full article description |
3kg-40kg | C3 | L6D16-C3-xxkg-0.22B |
Specification：
Maximum capacity (Emax) | kg | 3/5/8/10/20/30/40 | |
Output sensitivity(= FS) | mV/ | 2.0+0.2 | |
Accuracy class | C3 | ||
Combined error | %FS | ±0.02 | |
Creep | %FS/30min | ±0.0167 | |
Temperatureeffect on sensitivity | %FS/10℃ | ±0.0175 | |
Temperature effect on zero | %FS/10℃ | ±0.02 | |
Zero balance | %FS | ±2 | |
Compensated temperature | ℃ | -50 | |
Operating temperature | ℃ | -35~+65 | |
Input resistance | Ω | 406±6 | |
Output resistance | Ω | 350±3 | |
Insulation resistance | MΩ | ≥ 5000(50VDC) | |
Excitation, recommended voltage | V | 5~12(DC) | |
Excitation maximum | V | 18(DC) | |
Safe overload | of Emax | 120 | |
Uitimate overload | of Emax | 150 | |
Ingress protection (according to EN 60529) | IP65 | ||
Recommended installation size | mm | 250×350 | |
Comer correction | 0.02%load value/100mm0 | ||
Recommended torque on fixation | N.m | 3kg-30kg | 6 |
40kg | 10 | ||
Wiring：
◎Shielded, 4 conductor cable；
◎Cable diameter: Φ3.8mm；
◎Standard cable length: 0.22m；
◎Shield not connected to element；
◎Cable jacket in PVC；
