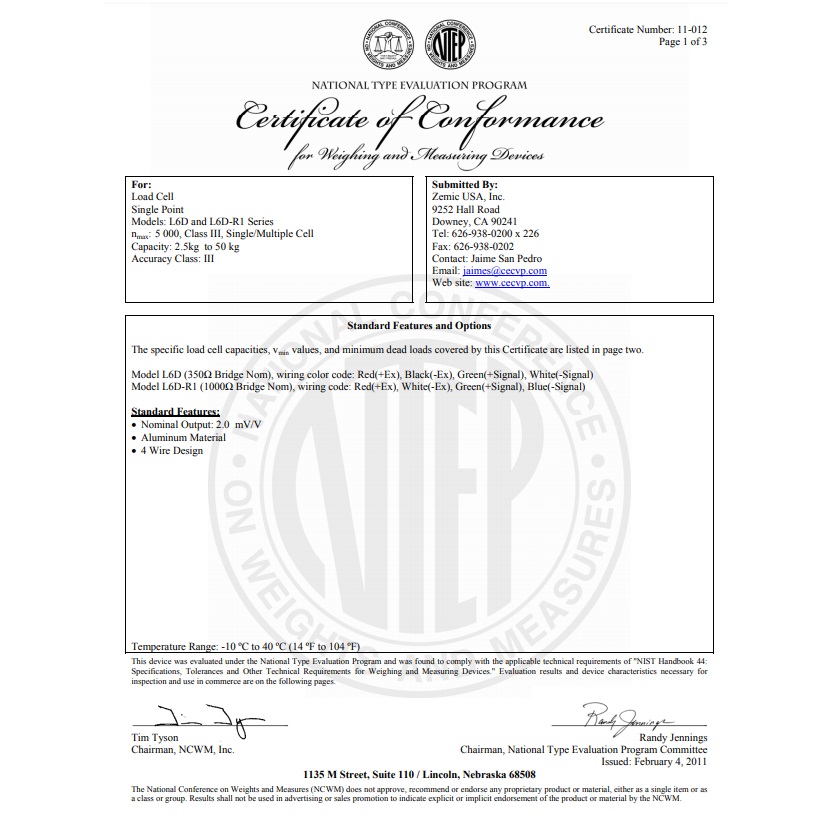

L6D
SAINTBOND
Short Description:
◎Aluminium-Alloy IP65 single point load cell；
◎Colourless anodized；
◎Suitable for pricing scales, bench scales, etc；
◎Maximum platform size: 250 x 350 mm；
Dimensions in mm：
Available models：
Capacity | Accuracy | Full article description | Capacity | Accuracy | Full article description |
2.5kg | C3 Excluded from OIML | L6D-C3-2.5kg-0.4B | 15kg | C3/C4/C5 | L6D-C3/C4/C5-15kg-0.4B |
3kg | C3/C4/C5 | L6D-C3/C4/C5-3kg-0.4B | 20kg | C3/C4/C5 | L6D-C3/C4/C5-20kg-0.4B |
5kg | C3/C4/C5 | L6D-C3/C4/C5-5kg-0.4B | 30kg | C3/C4/C5 | L6D-C3/C4/C5-30kg-0.4B |
6kg | C3/C4/C5 | L6D-C3/C4/C5-6kg-0.4B | 35kg | C3/C4/C5 | L6D-C3/C4/C5-35kg-0.4B |
8kg | C3/C4/C5 | L6D-C3/C4/C5-8kg-0.4B | 40kg | C3/C4/C5 | L6D-C3/C4/C5-40kg-0.4B |
10kg | C3/C4/C5 | L6D-C3/C4/C5-10kg-0.4B | 50kg | C3/C4/C5 | L6D-C3/C4/C5-50kg-0.4B |
Specification：
Accuracy class | C3 | OIML R60 C3 | OIML R60 C4 | OIML R60 C5 | |
Output sensitivity(= FS) | mV/V | 2.0 ±0.2 | |||
Maximum capacity ( Emax) | kg | 2.5 | 3, 5, 6, 8, 10, 15, 20, 30, 35, 40, 50 | ||
Maximum number of load cell intervals (nLC) | 3000 | 3000 | 4000 | 5000 | |
Ratio of minimum LC verification interval Y= Emax / Vmin | 10000 | 10000 | 15000 | 20000 | |
Combined error | %FS | ±0.02 | ±0.0150 | ± 0.01 | |
Minimum dead load | of Emax | 0% | |||
Safe overload | of Emax | 120% | |||
UItimate overload | of Emax | 150% | |||
Zero balance | %FS | ± 2.0 | |||
Excitation, recommended voltage | V | 5~12(DC) | |||
Excitation maximum | V | 18(DC) | |||
lnput resistance | Ω | 406±6 | |||
Output resistance | Ω | 350±3 | |||
Insulation resistance | MΩ | ≥ 5000(50VDC) | |||
Compensated temperature | ℃ | -10~+40 | |||
Operating temperature | ℃ | -35~+65 | |||
Storage temperature | ℃ | -40~+70 | |||
Elementmaterial | Aluminium | ||||
Recommended toroue on fixation | N.m | <30kg:6 ≥ 30kg:10 | |||
lngress protection (according to EN 60529) | IP65 | ||||
Wiring：
◎Shielded, 4 conductor cable；
◎Cable diameter: Φ3.8mm；
◎Standard cable length: 0.40m；
◎Shield not connected to element；
◎Cable jacket in PVC；
