L6C
SAINTBOND
Short Description:

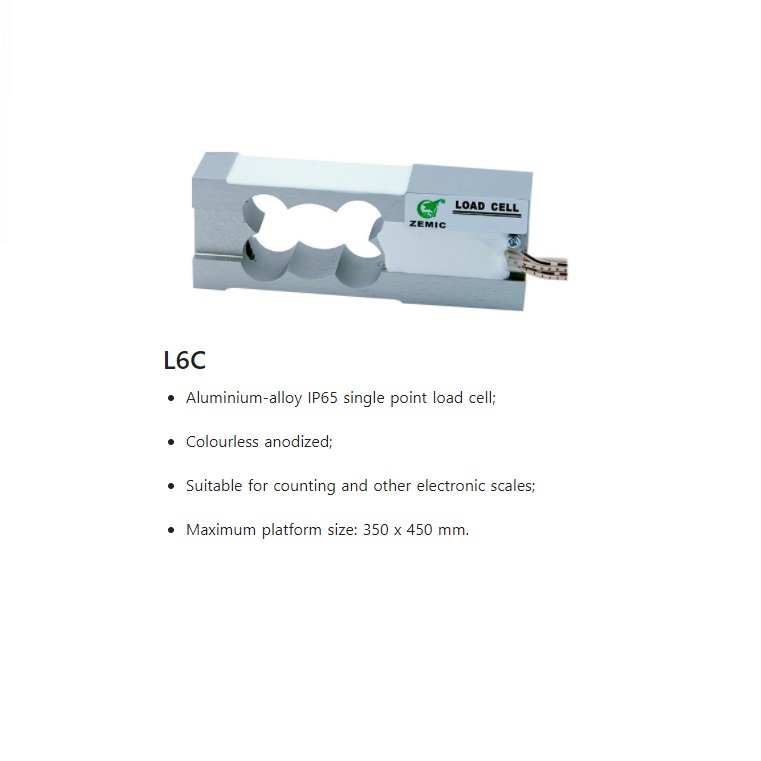

◎Aluminium-alloy IP65 single point load cell；
◎Colourless anodized；
◎Suitable for counting and other electronic scales；
◎Maximum platform size: 350 x 450 mm；
Available models：
Capacity | Accuracy | Full article description |
3kg | C3D/C3 | L6C-C3D/C3-3kg-2B |
5kg | C3D/C3 | L6C-C3D/C3-5kg-2B |
8kg | C3D/C3 | L6C-C3D/C3-8kg-2B |
20kg | C3D/C3 | L6C-C3D/C3-20kg-2B |
30kg | C3D/C3 | L6C-C3D/C3-30kg-2B |
50kg | C3D/C3 | L6C-C3D/C3-50kg-2B |
Specification：
Accuracy class | C3D | C3 | |
Output sensitivity(= FS) | mV/V | 1.9±02 | |
Maximum capacity ( Emax) | kg | 3,5,8,20,30,50 | |
Maximum number of load cell intervals (nLC) | 2500 | 3000 | |
Ratio of minimum LC verification interval Y = Emax / Vmin | 5000 | 10000 | |
Combined error | %FS | ±0.0280 | ±0.0200 |
Safe overload | f Emax | 120% | |
Uitimate overload | of Emax | 150% | |
Zero balance | %FS | ±2.0 | |
Excitation, recommended voltage | V | 5~12(DC) | |
Excitation maximum | V | 18 (DC) | |
Input resistance | Ω | 406±6 | |
Output resistance | Ω | 350±3 | |
Insulation resistance | MΩ | ≥ 5000(50VDC) | |
Compensated temperature | ℃ | ’-10~+40 | |
Operating temperature | ℃ | -35~+65 | |
Element material | Aluminium | ||
Recommended torque on fixation | N.m | 20 | |
lngress protection (according to EN 60529) | IP65 | ||
Dimensions in mm：
Wiring：
◎Shielded, 4 conductor cable；
◎Cable diameter: Φ5.3mm；
◎Standard cable length: 2m；
◎Shield connected to element；
◎Cable jacket in PVC；
