L6B
SAINTBOND
Short Description:

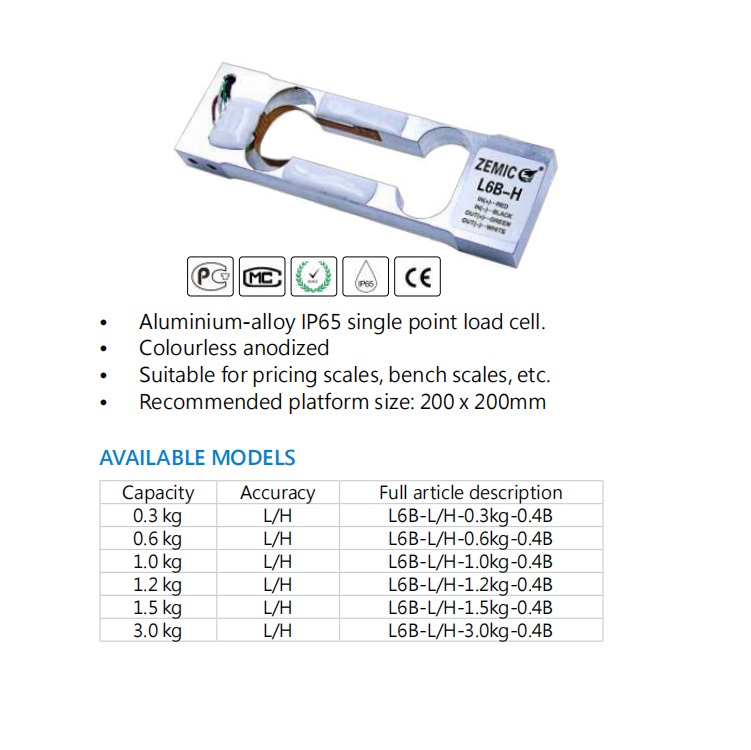

◎Aluminium-alloy IP65 single point load cell；
◎Colourless anodized；
◎ Suitable for pricing scales, bench scales, etc；
◎Recommended platform size: 200 x 200mm；
Available models：
Capacity | Accuracy | Full article description |
0.3kg | L/H | L6B-L/H-0.3kg-0.4B |
0.6kg | L/H | L6B-L/H-0.6kg-0.4B |
1.0kg | L/H | L6B-L/H-1.0kg-0.4B |
1.2kg | L/H | L6B-L/H-1.2kg-0.4B |
1.5kg | L/H | L6B-L/H-1.5kg-0.4B |
3.0kg | L/H | L6B-L/H-3.0kg-0.4B |
Specification：
Accuracy class | L | H | |
Output sensitivitV(=FS) | mV/V | 0.9±0.1 | |
Maximum capacity (Emax) | kg | 0.3,0.6,1.0,1.2,1.5,3 | |
Linearity | %FS | ±0.015 | ±0.012 |
Hysteresis | %FS | ±0.015 | ±0.012 |
Repeatability | %FS | ±0.015 | ±0.012 |
Temperature effect onMinimum dead load output | %FS/10℃ | ±0.030 | ±0.020 |
Temperature effect on output | %FS/10℃ | ±0.030 | ±0.020 |
Combined error | %FS | ±0.010 | ±0.005 |
Eccentric loading error | %FS | ±0.0200 | |
Minimum dead load | Of Emax | 0% | |
Safe overload | of Emax | 120% | |
Ultimate overload | of Emax | 150% | |
Zero balance | %FS | ± 2.0 | |
Excitation, recommended voltage | V | 5~12(DC) | |
Excitation maximum | V | 18(DC) | |
Input resistance | Q | 406 ±6 | |
Output resistance | Q | 350 ±3 | |
Insulation resistance | MQ | ≥ 5000(50VDC) | |
Compensated temperature | ℃ | -10~+40 | |
Operating temperature | ℃ | -20~+50 | |
Storage temperature | ℃ | -35~+65 | |
Element material | Aluminium | ||
Recommended torque on fixation | N.m | 5 | |
Ingress protection (according to EN 60529) | IP65 | ||
Dimensions in mm：
Wiring：
◎Shielded, 4 conductor cable；
◎Cable diameter: Φ2.9mm；
◎Standard cable length: 0.40m；
◎Shield not connected to element；
◎Cable jacket in PVC；
