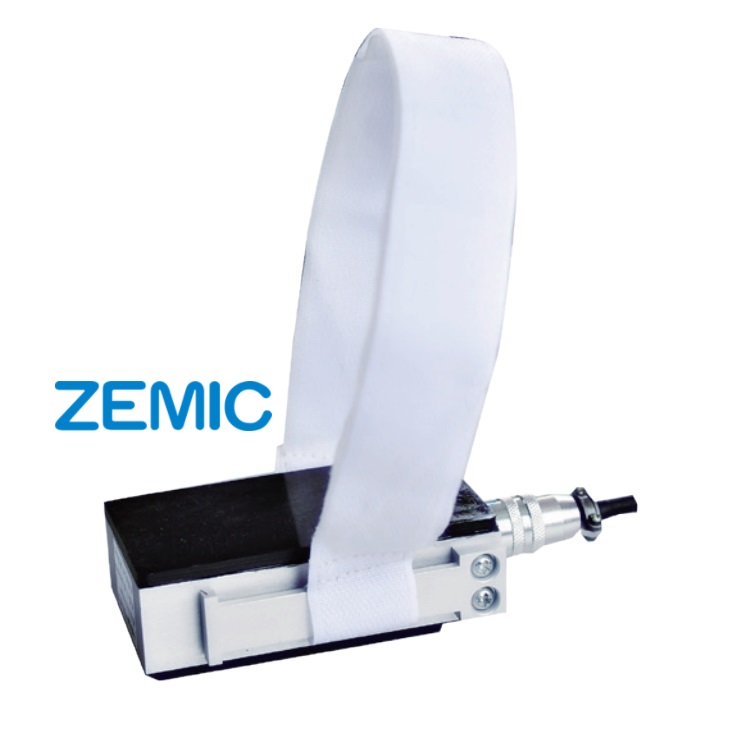

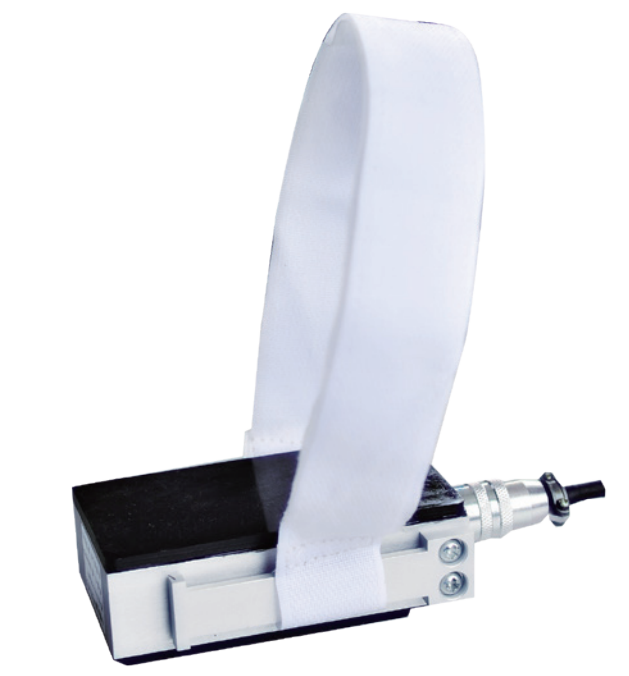

L16A
SAINTBOND

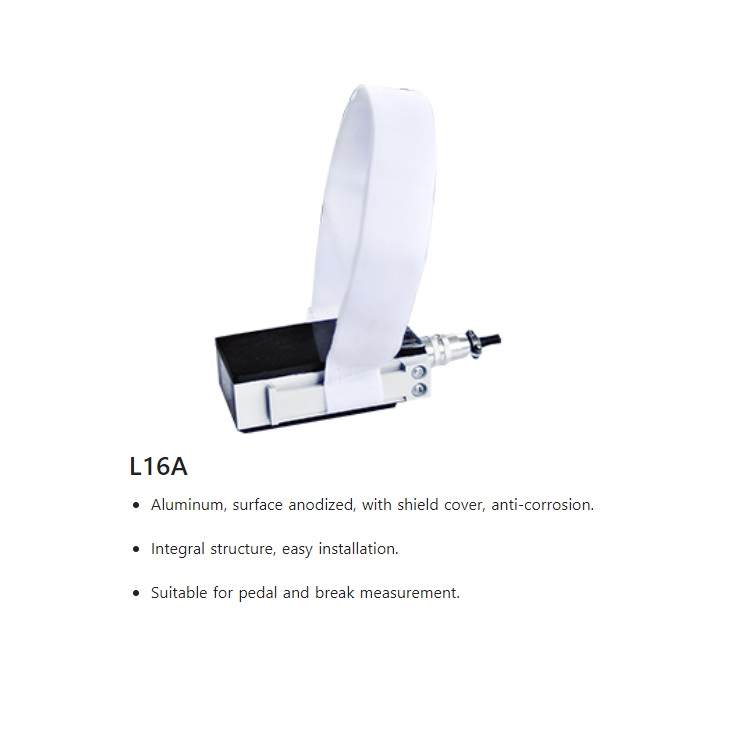

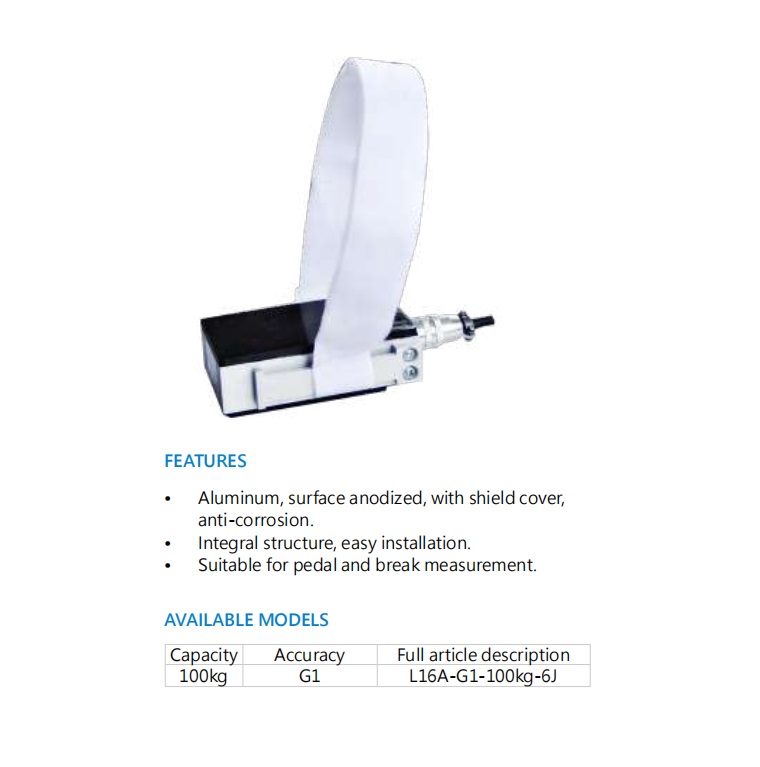

Short Description:
◎Aluminum, surface anodized, with shield cover, anti-corrosion；
◎Integral structure, easy installation；
◎Suitable for pedal and break measurement；

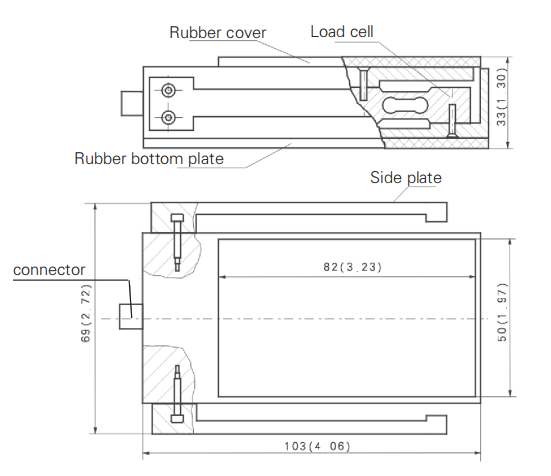

Dimensions in mm：
Available models：
Capacity | Accuracy | Full article description |
100kg | G1 | L16A-G1-100kg-6J |
Specification：
Maximum capacity ( Emax ) | kg | 100 |
Output sensitivity ( = FS ) | mV/V | 1.5±0. 2 |
Accuracy class | G1 | |
Combined error | %FS | ±0.1 |
Creep | %FS/30min | ±0.05 |
Temperature effect on sensitivity | %FS/10℃ | ±0.1 |
Temperature effect on zero | %FS/10℃ | ±0.1 |
Zero balance | %FS | ±2 |
Compensated temperature | ℃ | -10~ +40 |
Operating temperature | ℃ | -35~ +65 |
Input resistance | Ω | 744±6 |
Output resistance | Ω | 700±7 |
Insulation resistance | MΩ | ≥ 5000（50VDC） |
Excitation, recommended voltage | V | 5~12(DC) |
Excitation maximum | V | 18(DC) |
Safe overload | %FS | 120 |
Ultimate overload | %FS | 150 |
Ingress protection (according to EN 60529) | IP66 | |
Cable Specification | mm | φ3.8 |
Cable Length | m | 6 |
