WS1180
SAINTBOND
Compact design aluminum alloy. Capacity up to 500kg/each. IP67 alloy aluminum steel load cell. With handle for easy movement. Optional oxidation process. Electronic Corner Weight Scales are an integral part of any professional race team's set up equipment. These are essential to assist in adjustment of weight distribution through ride height, spring/damper stiffness and suspension geometry to ensure maximum grip for your race car. Special edition for race cars. Weight/percentage of each wheel. Weight/percentage of each axle. Weight/percentage of cross axle. Target weight calculation of each wheel-For getting 50:50 driving experience. Kg/lb unit. ABS suitcase. RS232 interface, Weighing records retrieve.
Dimension:
Key Features:

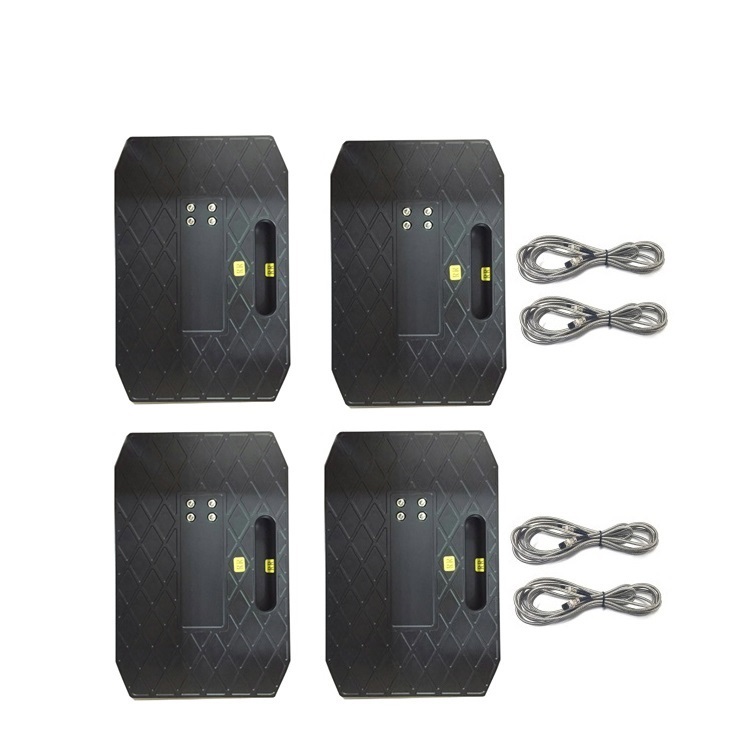

◎One set consists of 4 weigh pads and 1dispaly indicator;

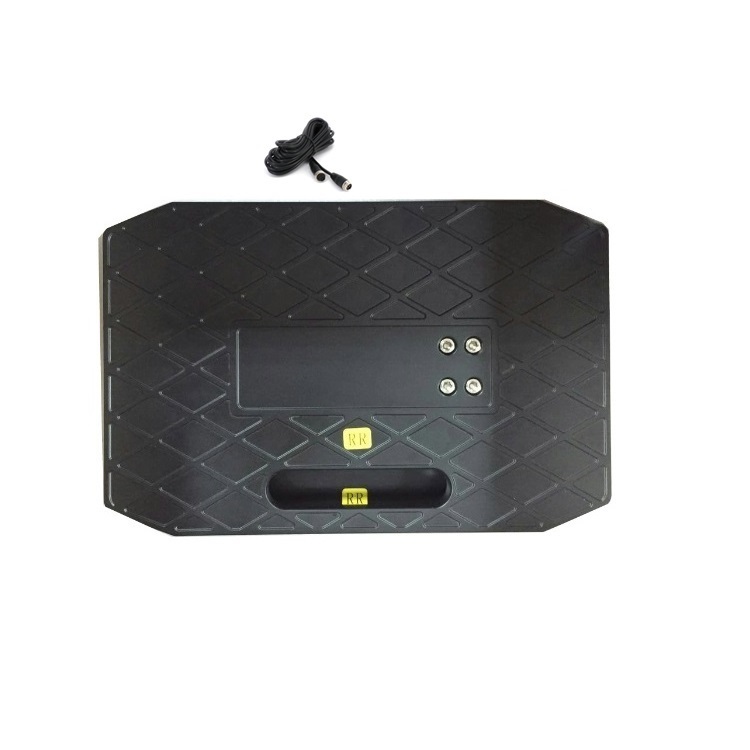

◎Platform Size:368x242x60mm;
◎Material: Aluminum Alloy;
◎Fully calibrated system (calibrated using certified M1 weights with full traceability to national standards);
◎Measures & displays: total weight, cross weight, front axle weight, rear axle weight, RH/LH weight, individual corner weights (% also shown);
◎Ultra precise load cells with 0.05% accuracy;
◎Displays to 4 significant places;
◎Their large, easy-to-read screen displays front and rear wheel weights, total weight, percentages;
◎Large backlit screen for easy reading, even in direct sunlight;
◎Control panel housed in an attractive ABS lockable flight line case;
◎Cordless - supplied with Ni-Cad internal batteries with 12-hour battery life;
◎Supplied with 230V mains charger/power cable & with flexible connecting pad cables;
◎Centre of gravity automatic calculation function with asterisk display on the screen to show the exact car center of gravity point (unique feature);
◎Selectable display in either Kgs or lbs;
◎Max weight: 500Kg per pad, 2000Kg in total;
◎USB & parallel printer output ports;
◎Designed to meet strict quality control standards;
◎50:50 Driving, Target weight calculation for each wheel;
◎12-month warranty as standard;
Use:
◎Setting up your race car with this system will show you how alterations in geometry, ride height & stiffness affect weight distribution
◎Record measurements & once your ideal setup is found, use this system to ensure that on your car is race ready every time
◎Ensure you comply with min/max weight restrictions for your class
◎If your vehicle has been damaged or altered, this is an excellent way of checking how your setup compares with previous readings
Waring:
The effectiveness of this system is directly related to the way in which it is installed, used & maintained. The user assumes that risk. No warranty, expressed or implied, is made as to its ability to protect against serious injury or death. See instructions for correct installation. If in doubt, consult the manufacturer. Systems can be returned to the Manufacturer for inspection once a year & calibrated every year at a service charge. Contact the manufacturer if the software or hardware is damaged in any way or does not function properly.
