HM9C
SAINTBOND
Short Description:

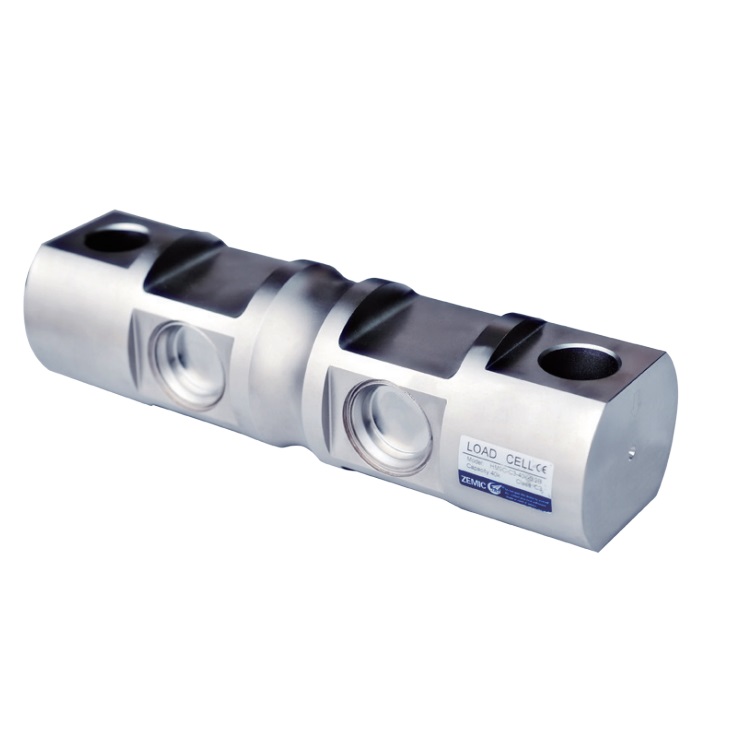

◎Nickel plated alloy steel IP68 dual shear beam load cell;
◎High accuracy;
◎Suitable for truck and track scales and other heavy weighing devices;
◎Hermetically sealed;
Dimensions in mm:
Dimension | A | C | H | G | ΦD | J | Φd | R | E |
10klb | 206.2 | 174.6 | 133.1 | 15.7 | Φ43.2 (1.7) | 28.4 | Φ16.7 (0.66) | R12.7 (0.5) | 15.7 |
(8.12) | (6.88) | (5.24) | (0.62) | (1.12) | (0.62) | ||||
20klb | 206.2 | 174.6 | 133.1 | 21.3 | Φ49.5 (1.95) | 28.4 | Φ16.7 (0.66) | R12.7 (0.5) | 15.7 |
(8.12) | (6.88) | (5.24) | (0.84) | (1.12) | (0.62) | ||||
30klb-75klb | 260 | 215.9 | 165.1 | 25.4 | Φ76.2 (3.0) | 60.2 | Φ26.9 (1.06) | R25.4 (1.0) | 22.2 |
(10.24) | (8.50) | (6.50) | (1.00) | (2.37) | (0.87) |
Available models:
Capacity | Accuracy | Full article description |
10Klb | C3 | HM9C-C3-10K-9B |
20Klb | C3 | HM9C-C3-20K-9B |
30Klb | C3 | HM9C-C3-30K-9B |
40Klb | C3 | HM9C-C3-40K-9B |
50Klb | C3 | HM9C-C3-50K-9B |
60Klb | C3 | HM9C-C3-60K-9B |
75Klb | C3 | HM9C-C3-75K-9B |
Specification:
Accuracy class | OIML R60 C3 | |||
Output sensitivity ( = FS ) | mV/V | 3.0 ± 0.008 | ||
Maximum capacity ( Emax ) | klb | 10, 20, 30, 40, 50, 60, 75 | ||
Maximum number of load cell intervals ( nLC ) | 3000 | |||
Ratio of minimum LC verification interval Y = Emax / vmin | 10000 | |||
Combined error | %FS | ± 0.023 | ||
Minimum dead load | klb | 0 | ||
Safe overload | of Emax | 150 % | ||
Ultimate overload | of Emax | 300 % | ||
Zero balance | %FS | ± 1.0 | ||
Excitation, recommended voltage | V | 5 ~ 12( DC ) | ||
Excitation maximum | V | 18( DC ) | ||
Input resistance | Ω | 700 ± 7 | ||
Output resistance | Ω | 700 ± 7 | ||
Insulation resistance | MΩ | ≥ 5000 ( 50VDC ) | ||
Compensated temperature | ℃ | -10 ~+40 | ||
Operating temperature | ℃ | -35 ~ +65 | ||
Storage temperature | ℃ | -40 ~ +70 | ||
Element material | Alloy steel | |||
Ingress protection (according to EN 60529) | IP68 | |||
ATEX classification (optional) | II1G Ex ia IIC T4 | II1D Ex iaD 20 T73℃ C | II3G Ex nL IIC T4 |
Wiring:
◎Shielded, 4 conductor cable;
◎Φ5mm(5k-20klb) Φ8mm(30k-250klb);
◎Standard cable length: 9m;
◎Cable type and length for customer's own application are available on request.;
