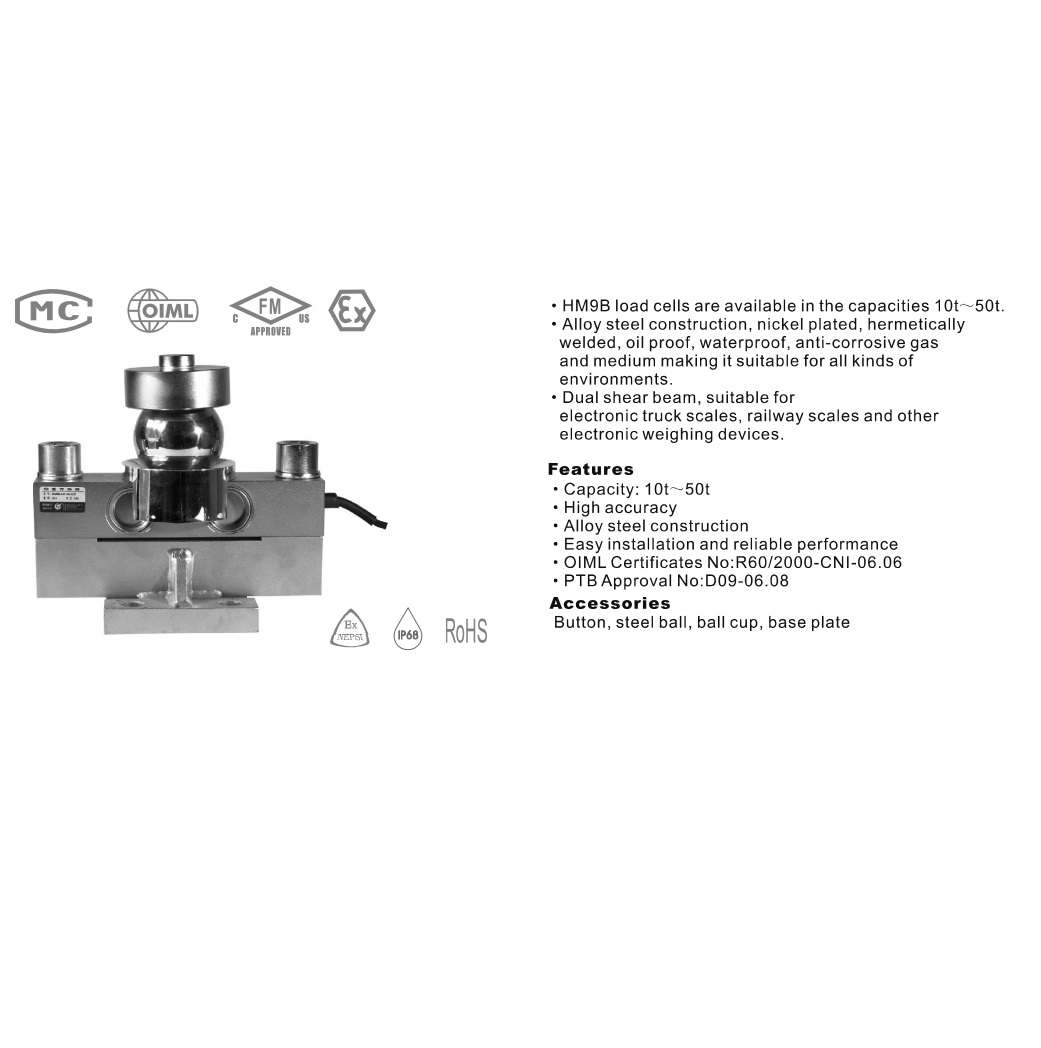

HM9B
SAINTBOND
Short Description:

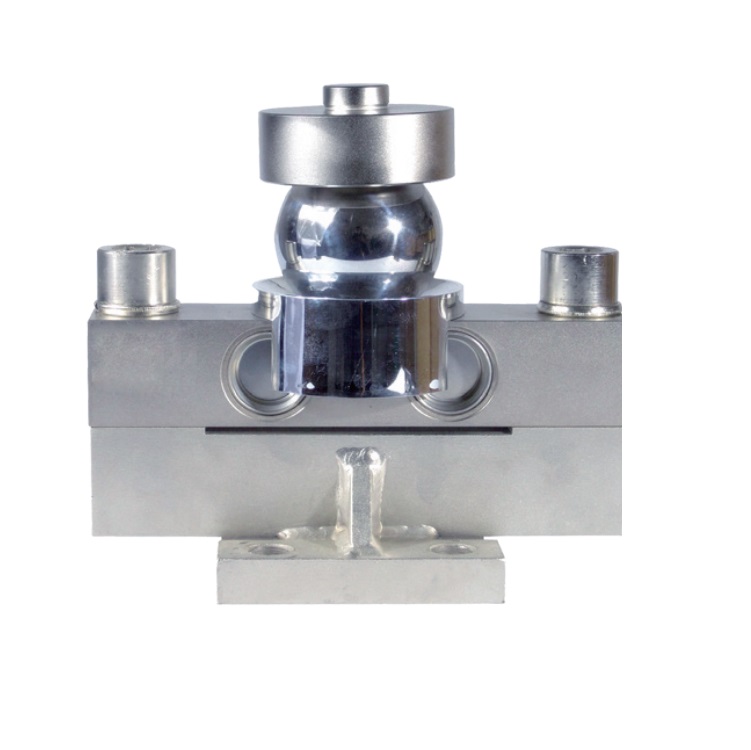

◎Nickel plated alloy steel IP68 dual shear beam load cell；
◎High accuracy；
◎Suitable for truck, track, hopper and other electronic weighing devices；
◎Current calibrated (sc-option)；
Available models：
Capacity | Accuracy | Full article description |
10t | C3 | HM9B-C3-10t-16B |
20t | C3 | HM9B-C3-20t-16B |
25t | C3 | HM9B-C3-25t-16B(-SC) |
30t | C3 | HM9B-C3-30t-16B(-SC) |
40t LE | C3 | HM9B-C3-40t LE-16B |
40t | C3 | HM9B-C3-40t-16B |
50t | C3 | HM9B-C3-50t-16B |
Specification：
Accuracy class | OIML R60 C3 | ||||
Output sensitivity ( = FS ) | mV/V | 2.0 ± 0.002 | |||
Maximum capacity ( Emax ) | t | 10, 20, 25 | 30, 40LE, 40, 50 | ||
Maximum number of load cell intervals ( nLC ) | 3000 | ||||
Ratio of minimum LC verification interval Y = Emax / vmin | 15000 | 7500 | |||
Combined error | %FS | ± 0.023 | |||
Minimum dead load | klb | 0 | |||
Safe overload | of Emax | 150 % | |||
Ultimate overload | of Emax | 300 % | |||
Zero balance | %FS | ± 1.5 | |||
Excitation, recommended voltage | V | 5 ~ 12( DC ) | |||
Excitation maximum | V | 18( DC ) | |||
Input resistance | Ω | 700 ± 7 | |||
Output resistance | Ω | 700 ± 7 | |||
Insulation resistance | MΩ | ≥ 5000 ( 50VDC ) | |||
Compensated temperature | ℃ | -10 ~ +40 | |||
Operating temperature | ℃ | -35 ~ +65 | |||
Storage temperature | ℃ | -40 ~ +70 | |||
Element material | Nickel plated alloy steel | ||||
Ingress protection (according to EN 60529) | IP68 | ||||
ATEX classification (optional) | II1G Ex ia IIC T4 | II1D Ex iaD 20 T73℃ | II3G Ex nL IIC T4 | ||
Dimensions in mm：
Dimension | H | ΦS |
10t | 195(7.68) | 50(1.97) |
20t-40t | 225(8.86) | 76(2.99) |
40tLE, 50t | 267(10.51) | 82(3.23) |
Wiring：
◎Shielded, 4 conductor cable；
◎Cable diameter: Φ5.5mm；
◎Standard cable length: 16m, also available in 12m；
◎Shield not connected to element；
