HM14H1
SAINTBOND
Short Description:

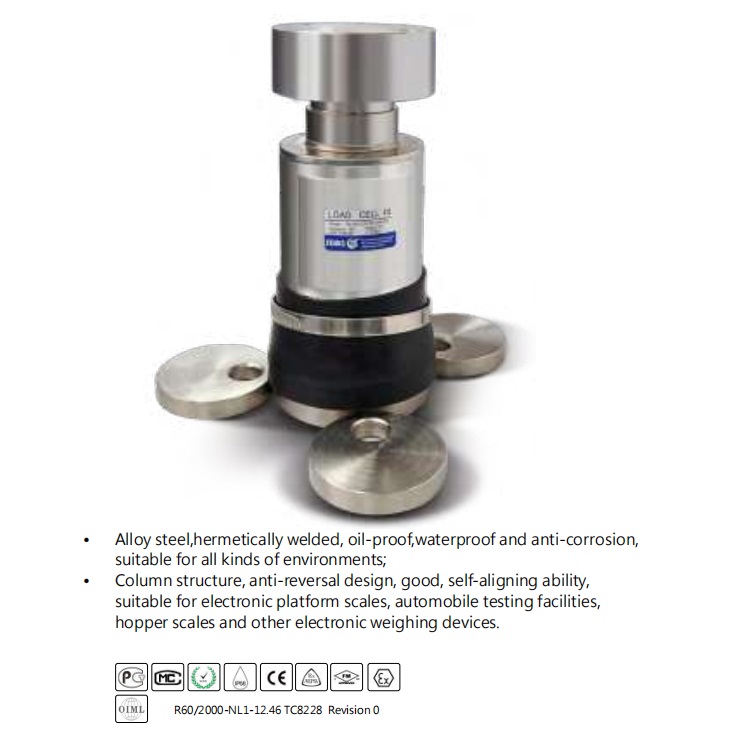

◎Alloy steel,hermetically welded, oil-proof,waterproof and anti-corrosion, suitable for all kinds of environments；
◎Column structure, anti-reversal design, good, self-aligning ability, suitable for electronic platform scales, automobile testing facilities, hopper scales and other electronic weighing devices；
Specification：
Maximum capacity ( Emax ) | t | 10/15/20/25/30/40/50/60 |
Accuracy class | C3 | |
Maximum number of load cell intervals ( nLC ) | 3000 | |
Ratio of minimum LC verification interval Y = Emax / vmin | Emax/10000 | |
Combined error | %FS | ±0.020 |
Creep | %FS/30min | ±0.016 |
Temperature effect on sensitivity | %FS/10℃ | ±0.011 |
Temperature effect on zero | %FS/10℃ | ±0.015 |
Output sensitivity ( = FS ) | mV/V | 2.0±0.002 |
Input resistance | Ω | 700±7 |
Output resistance | Ω | 703±4 |
Insulation resistance | MΩ | ≥ 5000(50VDC) |
Zero balance | %FS | ±1.0 |
Compensated temperature | ℃ | -10~+40 |
Operating temperature | ℃ | -35~+65 |
Excitation, recommended voltage | V | 5~12(DC) |
Excitation maximum | V | 18(DC) |
Safe overload | of Emax | 150 |
Ultimate overload | of Emax | 300 |
Ingress protection (according to EN 60529) | IP68 |
Dimensions in mm：
Wiring：
◎Cable diameter: Φ5.0±0.2mm 4 wires；
◎Standard cable length: 15m；
Part No. | 1 | 2 | 3 | 4 | 5 | 6 |

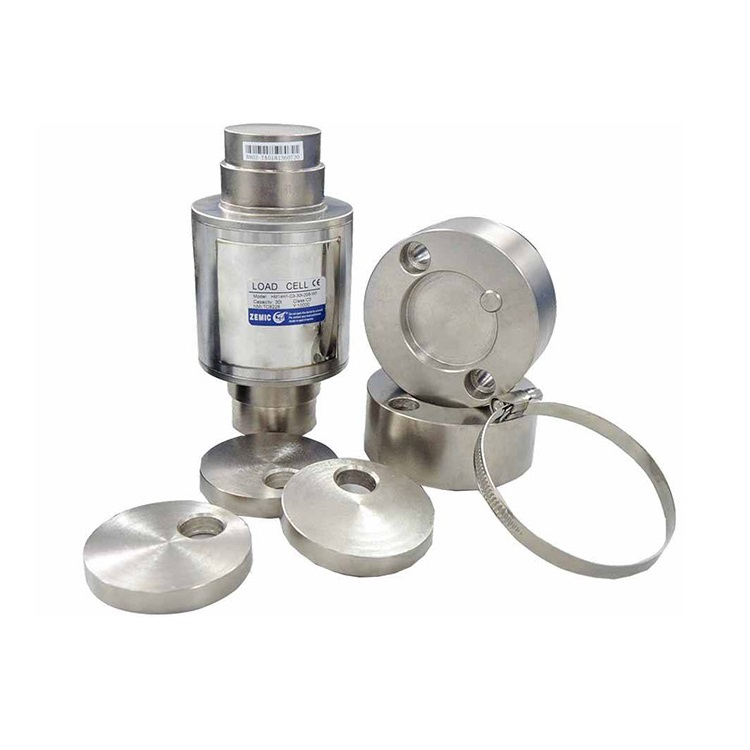

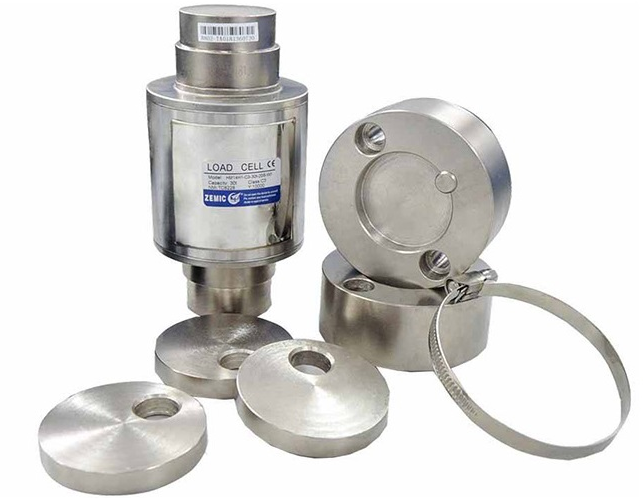

Name | Upper Button | Load Cell | Tube Clip | Dust Cover | Bottom Button | Excentric washers |
Qty | 1 | 1 | 1 | 1 | 1 | 3 |
Instruction：
◎The drawing contain load cell HM14H1 and it's accessory HY-14-146;
◎Adjust Part No.4 to insure the distance of 18;make sure that Part No.3 be horizontal and fastened;
◎Adjust Part No.6 according to the circle diameter of the bottom button
