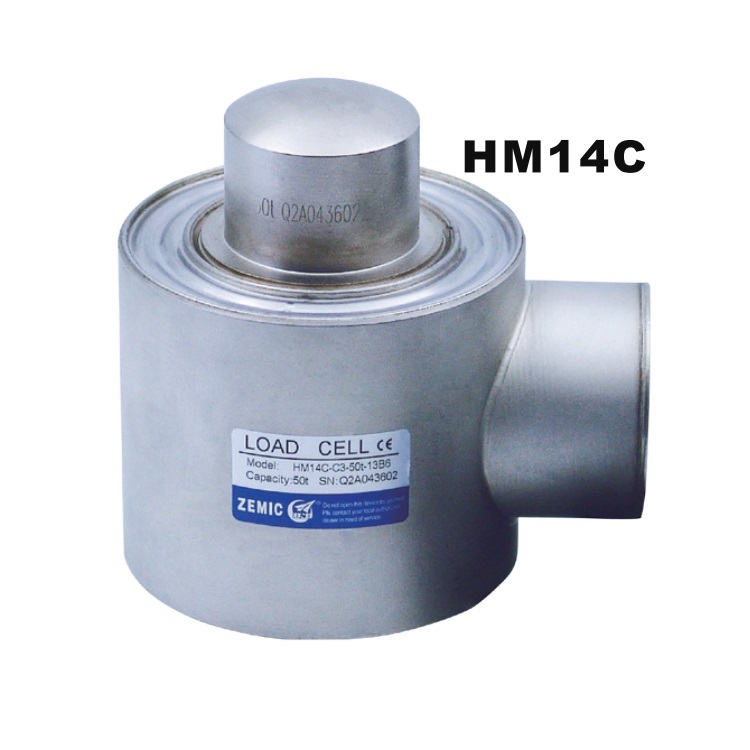

HM14C
SAINTBOND
Short Description:
◎Nickel plated alloy steel IP68 column shear load cell；
◎Hermetically sealed；
◎Suitable for truck, track, hopper and other electronic weighing devices；
◎High accuracy；
◎Protected against lightning surges；
◎Current calibrated (sc option)；
Available models：
Capacity | Accuracy | Full article description |
10t | C3 | HM14C-C3-10t-13B6 |
20t | C3 | HM14C-C3-20t-13B6 |
25t | C3 | HM14C-C3-25t-13B6 |
30t | C3 | HM14C-C3-30t-13B6 |
50t | C3 | HM14C-C3-50t-13B6 |
Specification：
Accuracy class | C3 | |||
Output sensitivity ( = FS ) | mV/V | 1.5 ± 0.004 | ||
Maximum capacity ( Emax ) | t | 10, 20, 25, 30, 50 | ||
Maximum number of load cell intervals ( nLC ) | 3000 | |||
Ratio of minimum LC verification interval Y = Emax / vmin | 7500 | |||
Combined error | %FS | ± 0.023 | ||
Minimum dead load | t | 0 | ||
Safe overload | of Emax | 150 % | ||
Ultimate overload | of Emax | 300 % | ||
Zero balance | %FS | ± 1.0 | ||
Excitation, recommended voltage | V | 5 ~ 12( DC ) | ||
Excitation maximum | V | 18( DC ) | ||
Input resistance | Ω | 700 ± 7 | ||
Output resistance | Ω | 703 ± 4 | ||
Insulation resistance | MΩ | ≥ 5000 ( 50VDC ) | ||
Compensated temperature | ℃ | -10 ~+40 | ||
Operating temperature | ℃ | -35 ~ +65 | ||
Storage temperature | ℃ | -40 ~ +70 | ||
Element material | Nickel plated alloy steel | |||
Ingress protection (according to EN 60529) | IP68 | |||
ATEX classification (optional) | II1G Ex ia IIC T4 | II1D Ex iaD 20 T73℃ | II3G Ex nL IIC T4 | |
Dimensions in mm：
Wiring：
◎Shielded, 6 conductor cable；
◎Cable diameter: Φ6.3mm；
◎Standard cable length: 13m；
◎Shield not connected to element；

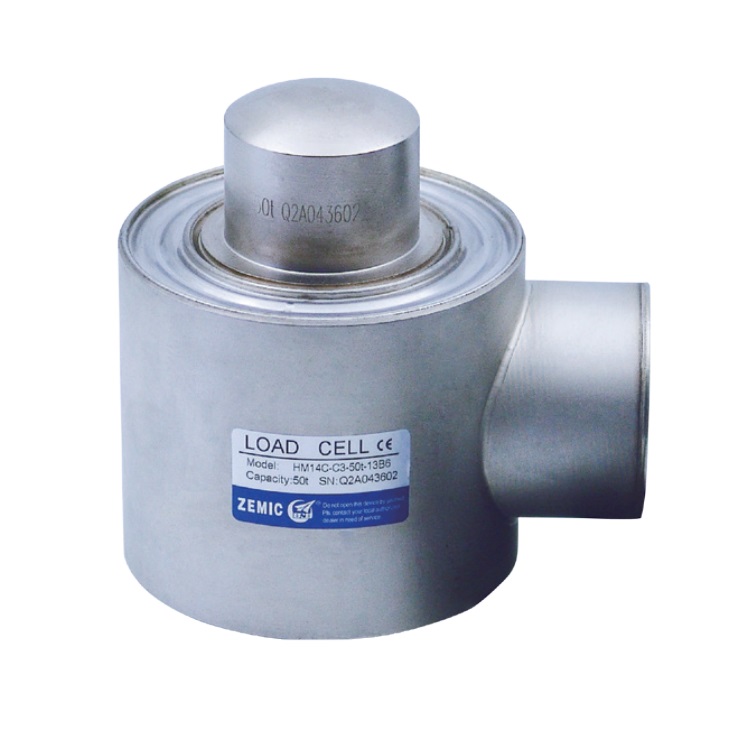

Short Description:
