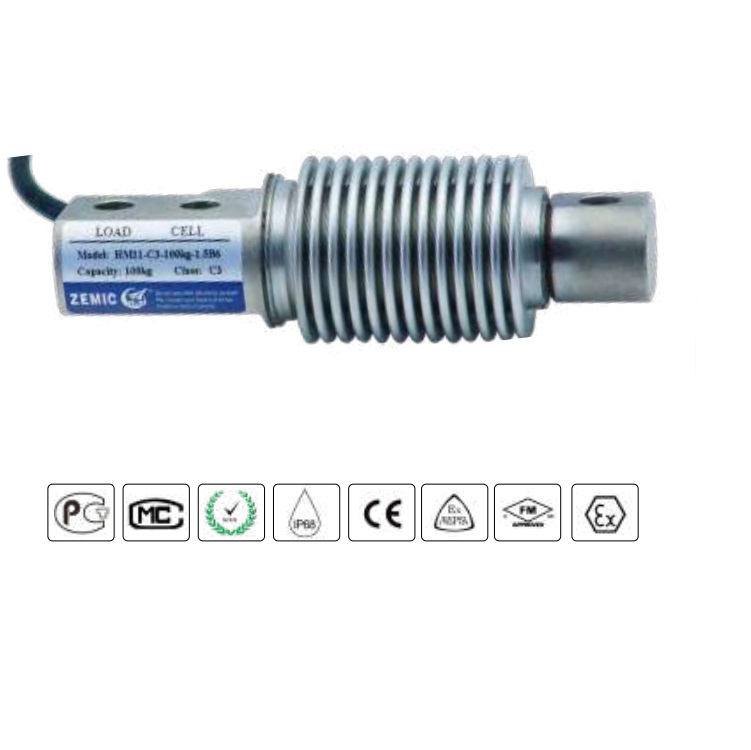

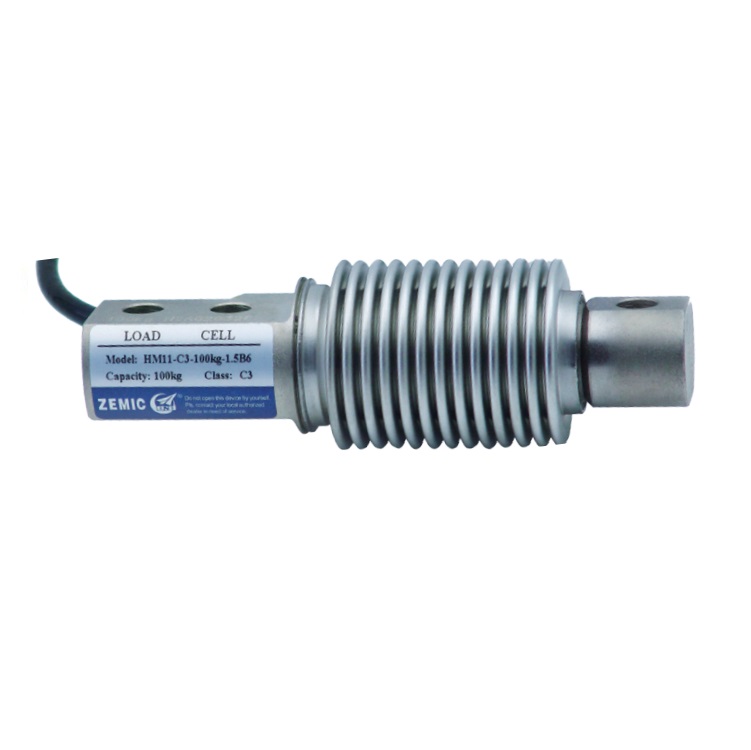

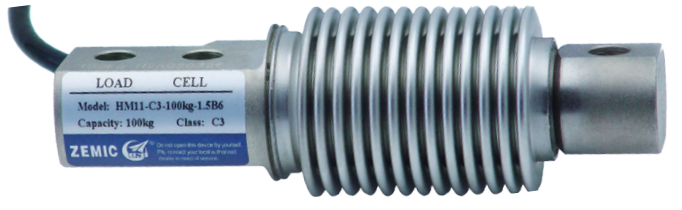

HM11
SAINTBOND
Short Description:
◎Alloy steel, nickel-plated, single point bending beam, hermetically welded, tension or compression；
◎Ingress protection (according to EN 60529): IP68；
◎Suitable for belt scales, hopper scales and other electronic weighing devices；
Available models：
Capacity | Accuracy | Full article description |
xxkg | C3 | HM11-C3-xxkg-3B |
xxkg | C3 | HM11-C3-xxkg-6B6 |
Specification：
Maximum capacity ( Emax ) | kg | 5/10/20/30/50/75/100/150/200/250/300/350/400/500 | ||
Accuracy class | C3 | |||
Maximum number of verification intervals | N.max | 3000 | ||
Maximum number of load cell intervals ( nLC ) | Vmin | Emax/10000 | ||
Combined error | %FS | ±0.020 | ||
Creep | %FS/30min | ±0.016 | ||
Temperature effect on sensitivity | %FS/10℃ | ±0.011 | ||
Temperature effect on zero | %FS/10℃ | ±0.015 | ||
Output sensitivity ( = FS ) | mV/V | 2.0±0.02 | ||
Input resistance | Ω | 460±50 | ||
Output resistance | Ω | 350±3.5 | ||
Insulation resistance | MΩ | ≥ 5000(50VDC) | ||
Zero balance | %FS | ±1.0 | ||
Compensated temperature | ℃ | -10~+40 | ||
Operating temperature | ℃ | -35~+65 | ||
Excitation, recommended voltage | V | 5~12(DC) | ||
Excitation maximum | V | 18(DC) | ||
Safe overload | of Emax | 150 | ||
Ultimate overload | of Emax | 300 | ||
ATEX Class(Optional) | II1G Ex ia IIC T4 | II1D Ex iaD20 T73℃ | II3G Ex nL II C T4 | |

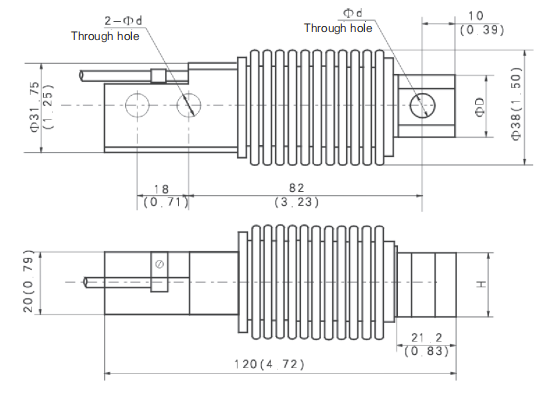

Dimensions in mm：
Capacity(kg) | 5,10,20,30,50,75100,150,200,250 | 300,350,400,500 |
d | 8.2 (0.32) | 10.3 (0.41) |
D | 23 (0.91) | 24 (0.94) |
H | 20 (0.79) | 19 (0.75) |
Wiring：
◎Both 4 and 6 conductor wires are available on customer's requirements；
◎Cable diameter: Φ5±0.2mm；
◎Standard length for 4 conductor cable: 3m；
◎Standard length for 6 conductor cable: 6m；
◎Note: Connection of 6 conductor wires are as above. For 4 conductor wires the yellow and blue sense wires are removed；
