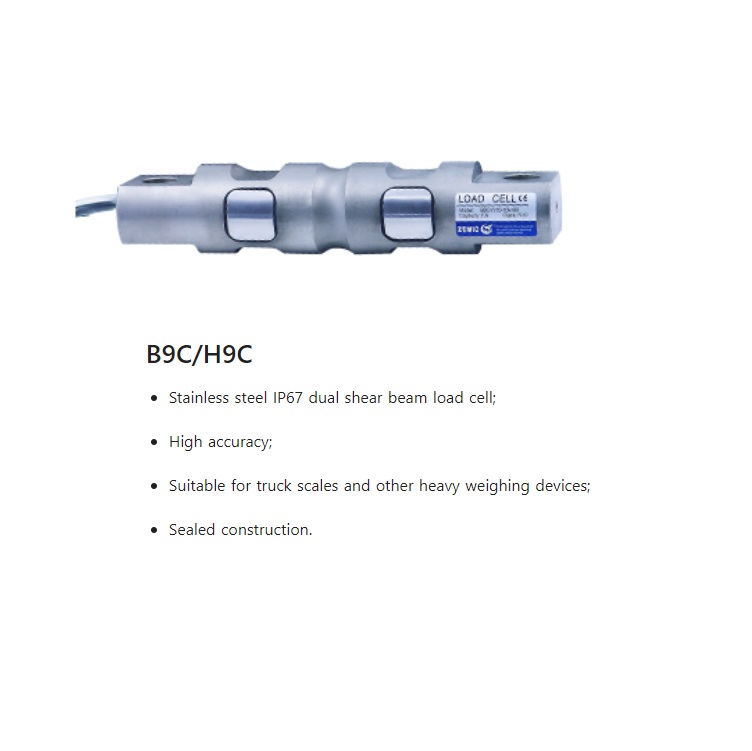

H9C
SAINTBOND
Short Description:
◎Nickel plated alloy steel IP67 dual shear beam load cell；
◎High accuracy；
◎Suitable for truck and track scales and other heavy weighing devices；
◎Sealed construction；
Available models：
Capacity | Accuracy | Full article description | Capacity | Accuracy | Full article description |
5Klb | C3/C4 | H9C-C3/C4-5K-9B | 50 Klb | C3 | H9C-C3-50K-9B |
10Klb | C3/C4 | H9C-C3/C4-10K-9B | 60 Klb | C3 | H9C-C3-60K-9B |
15Klb | C3/C4 | H9C-C3/C4-15K-9B | 75 Klb | C3 | H9C-C3-75K-9B |
20Klb | C3 | H9C-C3-20K-9B | 100 Klb | C3 | H9C-C3-100K-9B |
30Klb | C3 | H9C-C3-30K-9B | 150 Klb | C3 | H9C-C3-150K-9B |
40Klb | C3 | H9C-C3-40K-9B | 200 Klb | C3 | H9C-C3-200K-9B |
250 Klb | C3 | H9C-C3-250K-9B |
Specification：
Accuracy class | OIML R60 C3 | OIML R60 C4 | |||
Output sensitivity ( = FS ) | mV/V | 3.0 ± 0.003 | |||
Maximum capacity ( Emax ) | klb | 5, 10, 20, 30, 40, 50, 60,75, 100, 150, 200, 250 | 5, 10, 20 | ||
Maximum number of load cell intervals ( nLC ) | 3000 | 4000 | |||
Ratio of minimum LC verification interval Y = Emax / vmin | 10000 | 12000 | |||
Combined error | %FS | ± 0.0230 | ± 0.0175 | ||
Minimum dead load | of Emax | 0 % | |||
Safe overload | of Emax | 150 % | |||
Ultimate overload | of Emax | 300 % | |||
Zero balance | %FS | ± 1.0 | |||
Excitation, recommended voltage | V | 5 ~ 12( DC ) | |||
Excitation maximum | V | 18( DC ) | |||
Input resistance | Ω | 700 ± 7 | |||
Output resistance | Ω | 703 ± 4 | |||
Insulation resistance | MΩ | ≥ 5000 ( 50VDC ) | |||
Compensated temperature | ℃ | -10 ~+40 | |||
Operating temperature | ℃ | -35 ~ +65 | |||
Storage temperature | ℃ | -40 ~ +70 | |||
Element material | Nickel plated alloy steel | ||||
Ingress protection (according to EN 60529) | IP67 | ||||
ATEX classification (optional) | II1G Ex ia IIC T4 | II1D Ex iaD 20 T73℃ C | II3G Ex nL IIC T4 | ||
Dimensions in mm：
Dimension | A | C | H | G | ΦD | J | Φd | R | E |
5Klb, 10Klb | 206.2 | 174.6 | 133.1 | 15.7 | 43.2 | 28.4 | 16.7 | R12.7 | 15.7 |
(8.12) | (6.88) | (5.24) | (0.62) | (1.70) | (1.12) | (0.66) | (0.62) | ||
15Klb, 20Klb | 206.2 | 174.6 | 133.1 | 21.3 | 49.5 | 28.4 | 16.7 | R12.7 | 15.7 |
(8.12) | (6.88) | (5.24) | (0.84) | (1.95) | (1.12) | (0.66) | (0.62) | ||
30Klb, 75Klb | 260.4 | 215.9 | 165.1 | 25.4 | 76.2 | 60.2 | 26.9 | R25.4 | 22.4 |
(10.25) | (8.50) | (6.50) | (1.00) | (3.00) | (2.37) | (1.06) | (0.88) | ||
90Klb, 100Klb | 285.8 | 241.3 | 190.2 | 31 | 88.9 | 63.5 | 26.9 | R38.1 | 22.4 |
(11.25) | (9.50) | (7.49) | (1.22) | (3.50) | (2.50) | (1.06) | (0.88) | ||
150Klb | 285.8 | 241.3 | 190.2 | 31 | 99.1 | 71.1 | 26.9 | R38.1 | 22.4 |
(11.25) | (9.50) | (7.49) | (1.22) | (3.90) | (2.80 | (1.06) | (0.88) | ||
200Klb,250Klb | 408.9 | 330.2 | 254 | 31.7 | 136.6 | 116.8 | 39.6 | R50.8 | 39.4 |
(16.10) | (13.00) | (10.00) | (1.25) | (5.38) | (4.60) | (1.56) | (1.55) |
Wiring：
◎Shielded, 4 conductor cable；
◎Cable diameter for 5k - 20k:Φ5mm and for 30k - 250k: Φ8mm；
◎Standard cable length: 9m；
◎Shield not connected to element；
