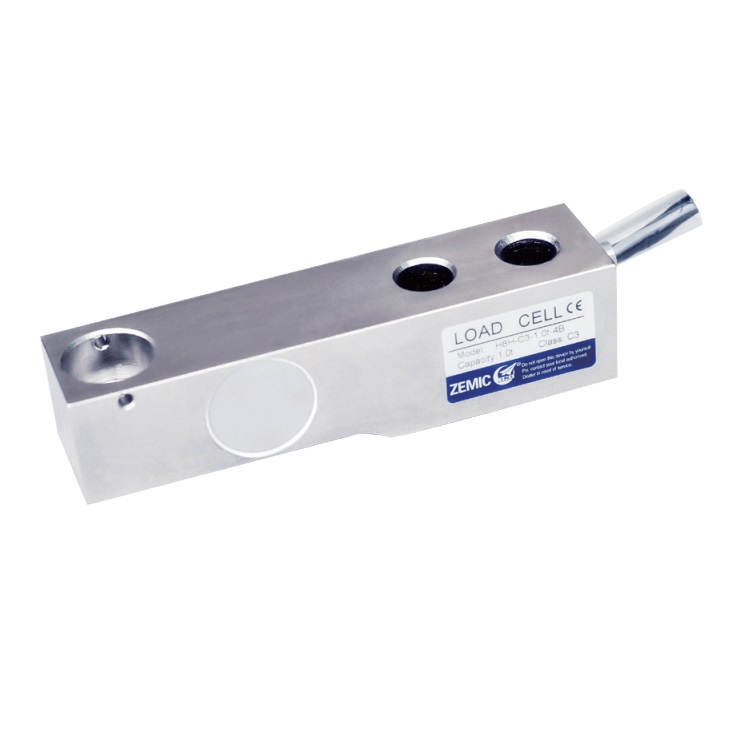

H8H Shear Beam Load Cell Zemic Load Cell

250kg

C3

H8H-C3-250kg-4B

500kg

C3

H8H-C3-500kg-4B

1t

C3

H8H-C3-1t-4B

2t

C3

H8H-C3-2t-4B

5t

C3

H8H-C3-5t-4B

Output sensitivity ( = FS )

mV/V

2.0 ± 0.004

Maximum capacity ( Emax )

t

0.25, 0.5, 1, 2, 5

Maximum number of load cell intervals ( nLC )

3000

Ratio of minimum LC verification interval Y = Emax / vmin

10000

Combined error

%FS

± 0.020

Minimum dead load

of Emax

0%

Safe overload

of Emax

150 %

Ultimate overload

of Emax

300 %

Zero balance

%FS

± 1.0

Excitation, recommended voltage

V

5 ~ 12( DC )

Excitation maximum

V

18( DC )

Input resistance

Ω

350 ± 3.5

Output resistance

Ω

350 ± 3.5

Insulation resistance

MΩ

≥ 5000 ( 50VDC )

Compensated temperature

℃

-10 ~+40

Operating temperature

℃

-35 ~ +65

Storage temperature

℃

-40 ~ +70

Element material

Nickel plated alloy steel

Ingress protection (acc. To EN 60529)

IP67

Recommended torque on fixation

N.m

M12: 75 M20:450

ATEX classification (optional)

II1G Ex ia IIC T4

II1D Ex iaD 20 T73℃ C

II3G Ex nL IIC T4

250 kg

130.00

15.50

25.40

76.20

31.80

13.00

20.50

14.20

25.50

31.80

57.10

(5.12)

(0.62)

(1.00)

(3.00)

(1.50)

(0.51)

(0.81)

(0.55)

(1.00)

(1.24)

(2.25)

500 kg

130.00

15.50

25.40

76.20

31.80

13.00

20.50

14.20

26.00

31.80

57.10

(5.12)

(0.62)

(1.00)

(3.00)

(1.50)

(0.51)

(0.81)

(0.55)

(1.02)

(1.24)

(2.25)

1t

130.00

15.50

25.40

76.20

31.80

13.00

20.50

14.20

28.00

31.80

57.10

(5.12)

(0.62)

(1.00)

(3.00)

(1.50)

(0.51)

(0.81)

(0.55)

(1.10)

(1.24)

(2.25)

2t

130.00

15.50

25.40

76.20

31.80

13.00

20.50

14.20

32.00

35.90

57.10

(5.12)

(0.62)

(1.00)

(3.00)

(1.50)

(0.51)

(0.81)

(0.55)

(1.26)

(1.41)

(2.25)

5t

172.00

19.10

38.10

95.30

38.00

20.50

30.20

20.00

40.00

44.00

76.20

(6.77)

(0.75)

(1.50)

(3.75)

(1.48)

(0.81)

(1.19)

(0.78)

(1.57)

(1.72)

(3.00)
