H6F
SAINTBOND
Short Description:

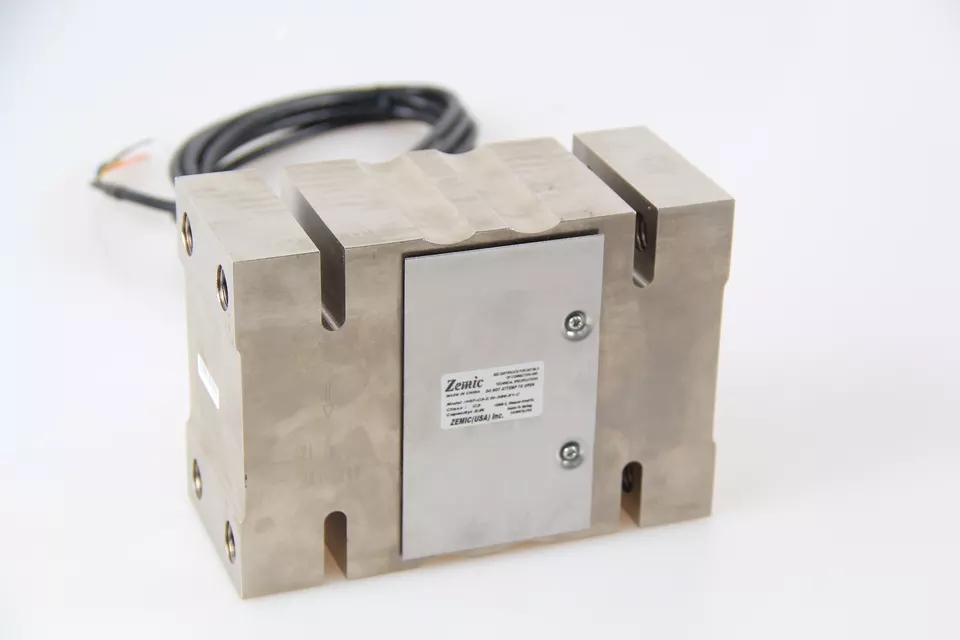

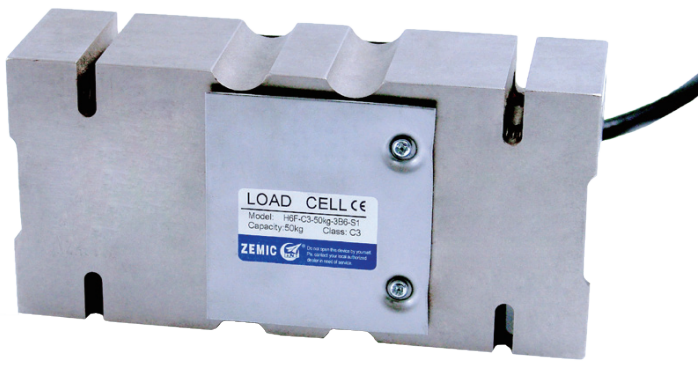

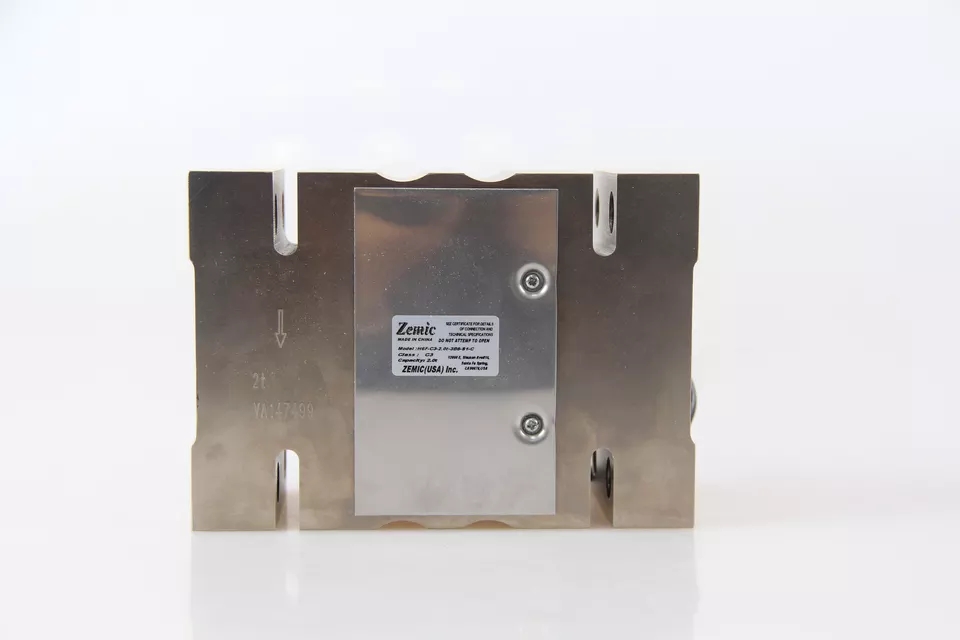

◎Nickel plated alloy steel IP66 single point load cell；
◎Bending beam；
◎Suitable for belt, platform and other electronic weighing devices；
◎Maximum platform size:
for 50kg-200kg: 400 x 400 mm； for 250kg-500kg: 600 x 800 mm； for 750kg-2t: 1200 x 1200 mm；
Available models：
Capacity | Accuracy | Full article description | Capacity | Accuracy | Full article description |
100kg | C3 | H6F-C3-100kg-3B6 | 500kg | C3 | H6F-C3-500kg-3B6 |
150kg | C3 | H6F-C3-150kg-3B6 | 750kg | C3 | H6F-C3-750kg-3B6 |
200kg | C3 | H6F-C3-200kg-3B6 | 1000 kg | C3 | H6F-C3-1000kg-3B6 |
250kg | C3 | H6F-C3-250kg-3B6 | 2000 kg | C3 | H6F-C3-2000kg-3B6 |
Specification：
Accuracy class | C3 | |||
Output sensitivity(= FS) | mV/V | 2.0 ±0.2 | ||
Maximum capacity ( Emax) | kg | 100, 150, 200, 250,500, 750, 1000, 2000 | ||
Maximum number of load cell intervals (nLC) | 3000 | |||
Ratio of minimum LC verification interval Y= Emax / Vmin | 7500 | |||
Combined error() | %FS | ±0.020 | ||
Minimum dead load | of Emax | 0% | ||
Safe overload | of Emax | 150% | ||
Ultimate overload | of Emax | 300% | ||
Zero balance | %FS | ± 1.0 | ||
Excitation, recommended voltage | V | 5~12(DC) | ||
Excitation maximum | V | 18(DC) | ||
Input resistance | Ω | 400 ±20 | ||
Output resistance | Ω | 351±2 | ||
Insulation resistance | MΩ | ≥ 5000(50VDC) | ||
Compensated temperature | ℃ | -10~+40 | ||
Operating temperature | ℃ | -35~+65 | ||
Storage temperature | ℃ | -40~+70 | ||
Element material | Nickel plated alloy steel | |||
lngress protection (according to EN 60529) | IP66 | |||
Recommended torque on fixation | N.m | M12:75 (Below 500kg) M16:200(750kg-2000kg) | ||
ATEX classification (optional) | Ⅱ1G Ex ia ⅡC T4 | Ⅱ1D Ex iaD 20 T73℃ | Ⅱ3G Ex nL ⅡC T4 | |
Note: "S1" output sensitivity is 2.0+ 0.002mV/V.input resistance is 384 ±4 | ||||

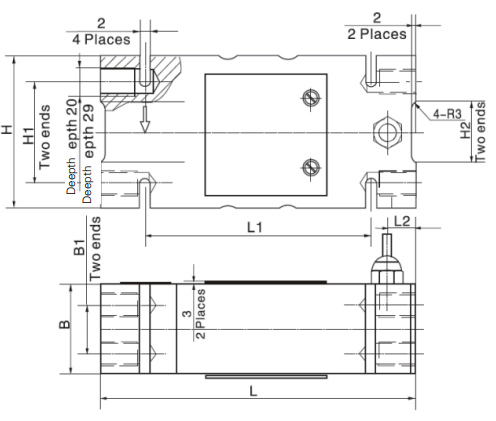

Dimensions in mm：
Dimension | 50kg~200kg | 250kg~500kg | 750kg~2t |
B | 44(1.73) | 60(2.36) | 76(2.99) |
B1 | 24(0.94) | 36(1.42) | 46(1.81) |
H | 75(2.95) | 95(3.74) | 125(4.92) |
H1 | 50(1.97) | 70(2.76) | 95(3.74) |
H2 | 30(1.18) | 30(1.18) | 65(2.56) |
L | 156(6.14) | 146(5.75) | 176(6.93) |
L1 | 112(4.4) | 110(4.33) | 110(4.33) |
L2 | 14(0.55) | 11(0.43) | 24(0.94) |
M | M12 | M12 | M16 |
Wiring：
◎Shielded, 6 conductor cable；
◎Cable diameter: Φ 6.2mm；
◎Standard cable length: 3m；
◎Shield not connected to element；
